HDMI 2.1 Extension Cable Guide: 48Gbps, 8K60, 4K120 & Total Cable Length

An HDMI male-to-female extension cable is useful when the HDMI port behind a TV, monitor, projector, desk or equipment rack is difficult to reach, or when an existing cable is just a little too short. But adding an extension also adds more cable length and another connector interface, so high-bandwidth modes such as 4K120 or 8K60 depend on the quality of the complete connection—not only the extension lead.

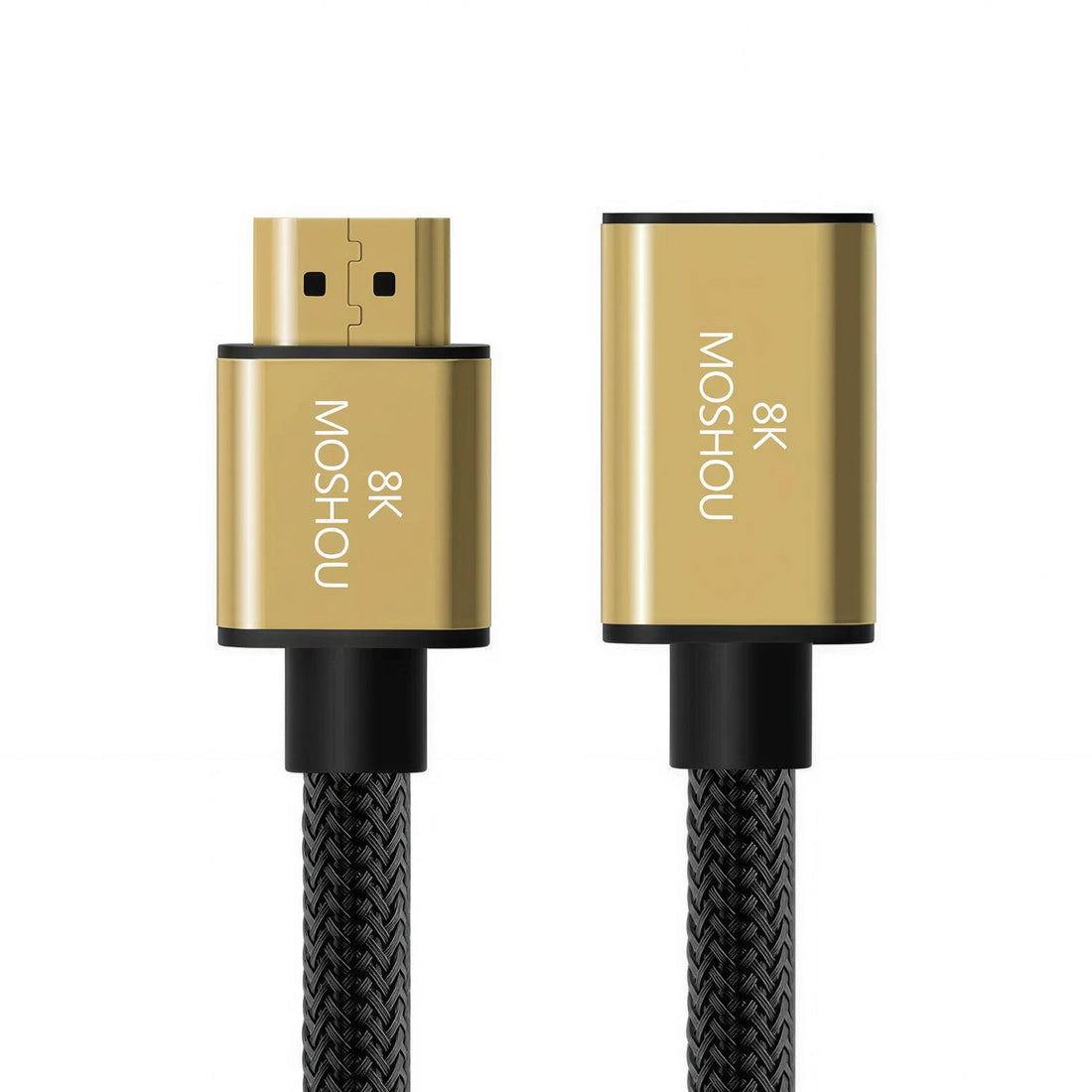

This guide explains how HDMI extensions work and what to check before using the MOSHOU HDMI 2.1 Male to Female Extension Cable, advertised for up to 48Gbps, 8K60 and 4K120 on compatible equipment.

Quick answer: what does an HDMI extension cable do?

An HDMI extension cable has a full-size HDMI Type-A male plug on one end and a full-size HDMI Type-A female socket on the other. The male end plugs into a source or display, while an existing HDMI cable plugs into the female socket. It extends one HDMI connection; it does not create additional inputs or outputs.

That makes it different from an HDMI splitter or switch. A splitter duplicates or distributes a signal, while a switch selects between sources or displays. An extension simply adds reach.

When is an HDMI extension useful?

• Bringing a recessed TV or monitor HDMI port within easier reach.
• Reducing repeated plugging directly into a difficult-to-access port.
• Adding a short amount of reach to a cable that is already installed.
• Routing around desks, equipment racks, wall mounts or home-theater furniture.
• Creating a convenient female HDMI connection point for frequently changed devices.

Can an HDMI extension support 48Gbps, 8K60 or 4K120?

The MOSHOU extension cable is advertised for up to 48Gbps and video formats up to 8K60 and 4K120 on compatible equipment. However, an extension cable becomes part of a larger HDMI link. The source device, display, original HDMI cable, extension cable, connector interfaces, total cable length, content and settings all affect the final result.

For example, adding a high-bandwidth extension to an older or lower-bandwidth HDMI cable does not upgrade the original cable. Likewise, a 4K120-capable console and TV can still fall back to a lower mode if another part of the chain cannot carry the required signal reliably.

If you want a deeper explanation of resolution and bandwidth, see our Video Bandwidth Guide.

Total cable length matters

There is no single universal maximum HDMI cable length that applies to every cable design and every video mode. Signal margin depends on cable construction, bandwidth, source and display electronics, and whether the link is passive or active.

With an extension, think about the total connection length: original HDMI cable plus extension. For demanding modes such as 4K120 or 8K60, use the shortest practical overall length and avoid adding unnecessary couplers or extensions.

The MOSHOU extension is available in 0.25m, 0.5m, 1m, 1.5m, 2m and 3m lengths. If you only need to move a port out from behind a TV, a short 0.25m or 0.5m extension is often easier to manage than adding several meters.

Does it support eARC, VRR and ALLM?

The product is designed to pass HDMI 2.1-class features such as eARC/ARC, VRR, ALLM and Quick Frame Transport when the entire device chain supports them. These features are end-to-end capabilities: the source, display or receiver, original HDMI cable and extension all need to be compatible with the feature you want to use.

For gaming, VRR and high refresh rates can place greater demands on link stability. If you see intermittent black screens, flicker or a refresh-rate option disappearing after adding an extension, test the direct connection first. Our HDMI Flicker & Signal Troubleshooting Guide covers the most common causes.

What about HDR and audio?

The extension is advertised to support Dynamic HDR, HDR10+, Dolby Vision, BT.2020 and up to 12-bit color where supported by the full system. It is also designed for ARC/eARC and compatible multichannel audio formats such as Dolby Atmos and DTS:X.

Again, the extension does not add a feature that the source, receiver, TV or original HDMI cable cannot support. It simply carries the HDMI connection between compatible devices.

HDMI 2.1 vs cable certification

Bandwidth capability and official cable certification are related but not identical claims. Official Ultra High Speed HDMI Cable certification is a specific certification program. If certification status is important for your installation, check the cable packaging and certification label rather than assuming every cable advertised for HDMI 2.1-class bandwidth has the same certification status.

For a broader comparison of interface generations, see our HDMI 2.2 vs HDMI 2.1 vs HDMI 2.0 Guide.

How to choose the right extension length

• 0.25m: ideal for moving a recessed HDMI port a short distance and reducing connector strain.
• 0.5m: useful behind wall-mounted TVs, monitors and tight desks.
• 1–1.5m: suitable when the port needs to reach a nearby desk, shelf or equipment area.
• 2–3m: useful for larger routing changes, but remember that this length is added to your existing HDMI cable.

How to troubleshoot after adding an HDMI extension

1. Test the source and display with the original HDMI cable only.
2. Add the extension and confirm the issue only appears after the link becomes longer.
3. Try a lower resolution or refresh rate to see whether the problem is bandwidth-related.
4. Make sure both connectors are fully seated.
5. Disable unnecessary adapters, couplers or extra extension sections.
6. Use the shortest practical total cable length for 4K120 or 8K60.
7. Confirm the source and display ports actually support the requested mode.

Before You Buy

• This is a full-size HDMI Type-A male-to-female extension cable.
• It extends one HDMI connection; it is not a splitter or switch.
• Maximum resolution, refresh rate, HDR, audio and gaming features depend on the complete HDMI chain.
• Adding an extension increases total cable length and adds another connector interface.
• For 8K60 or 4K120, keep the total cable run as short and simple as practical.
• If official Ultra High Speed HDMI Cable certification matters to you, verify the certification label separately.

FAQ

1. Can I use this to extend an existing HDMI cable?

Yes. Connect the extension's male plug to the HDMI port and your existing full-size HDMI cable to the female socket.

2. Is this an HDMI splitter?

No. It extends one connection and does not create extra outputs.

3. Is it an HDMI switch?

No. It does not select between multiple sources or displays.

4. Can it support 4K at 120Hz?

The product is advertised for up to 4K120, but the source, display, original cable, extension, total length and settings must all support the mode.

5. Can it support 8K at 60Hz?

The product is advertised for up to 8K60 on compatible equipment, subject to the same full-chain requirements.

6. Does it support eARC?

It is designed to pass eARC/ARC when the complete source/receiver/display chain supports it.

7. Will it add HDMI 2.1 features to an older cable?

No. The extension cannot upgrade an original cable or device port that lacks the required capability.

8. Does a longer extension reduce performance?

Longer total runs can reduce signal margin, especially at high bandwidth. Use the shortest practical length for demanding modes.

9. What lengths are available?

0.25m, 0.5m, 1m, 1.5m, 2m and 3m.

10. What should I do if I get flicker or a black screen?

Test a direct connection first, reduce resolution or refresh rate, remove unnecessary adapters, reseat connectors and shorten the total HDMI run where possible.

Final thoughts

An HDMI extension cable is most useful when you need easier port access or a modest amount of extra reach. For ordinary video connections, setup is simple. For 4K120 or 8K60, treat the extension as one part of the complete HDMI link and keep total length and connection count under control.
