Copper vs Fiber Optic HDMI & DisplayPort: Choosing Cables for Long-Distance AV
For a one-meter connection behind a monitor, cable construction may feel simple. For a 10-meter, 20-meter or in-wall installation, it becomes an engineering decision. High-speed digital signals are affected by attenuation, insertion loss, electromagnetic environment and the ability of the cable electronics to maintain a clean eye pattern at the receiver.
This guide compares passive copper, active copper and active optical cable (AOC) designs for HDMI and DisplayPort.
Passive copper: simple and excellent at appropriate lengths
A passive copper cable carries the electrical signal directly from source to display without active signal-conditioning electronics. Advantages include simplicity, no directional installation in most standard passive designs and generally lower cost.
At short lengths, quality copper can provide excellent high-bandwidth performance. The challenge appears as frequency and distance increase: high-frequency components of the signal are attenuated more strongly, and the link margin becomes smaller.
Active copper: electrical transmission with signal conditioning
An active copper cable contains electronics that help compensate for loss. Depending on design, it may equalize or amplify the signal so a longer electrical run remains usable.
Because electronics are integrated into the cable, active cables may be directional. Always check SOURCE and DISPLAY labeling before routing a cable through walls or conduit.
Active optical cable: convert high-speed data to light
An HDMI or DisplayPort AOC typically converts high-speed electrical data into optical transmission within the cable assembly and converts it back at the receiving end. Some auxiliary channels may still use copper conductors, depending on the implementation.
Optical transport is attractive for long runs because the high-speed data is far less affected by electromagnetic interference and does not suffer the same electrical attenuation behavior as a long passive copper path.
When fiber optic HDMI makes sense

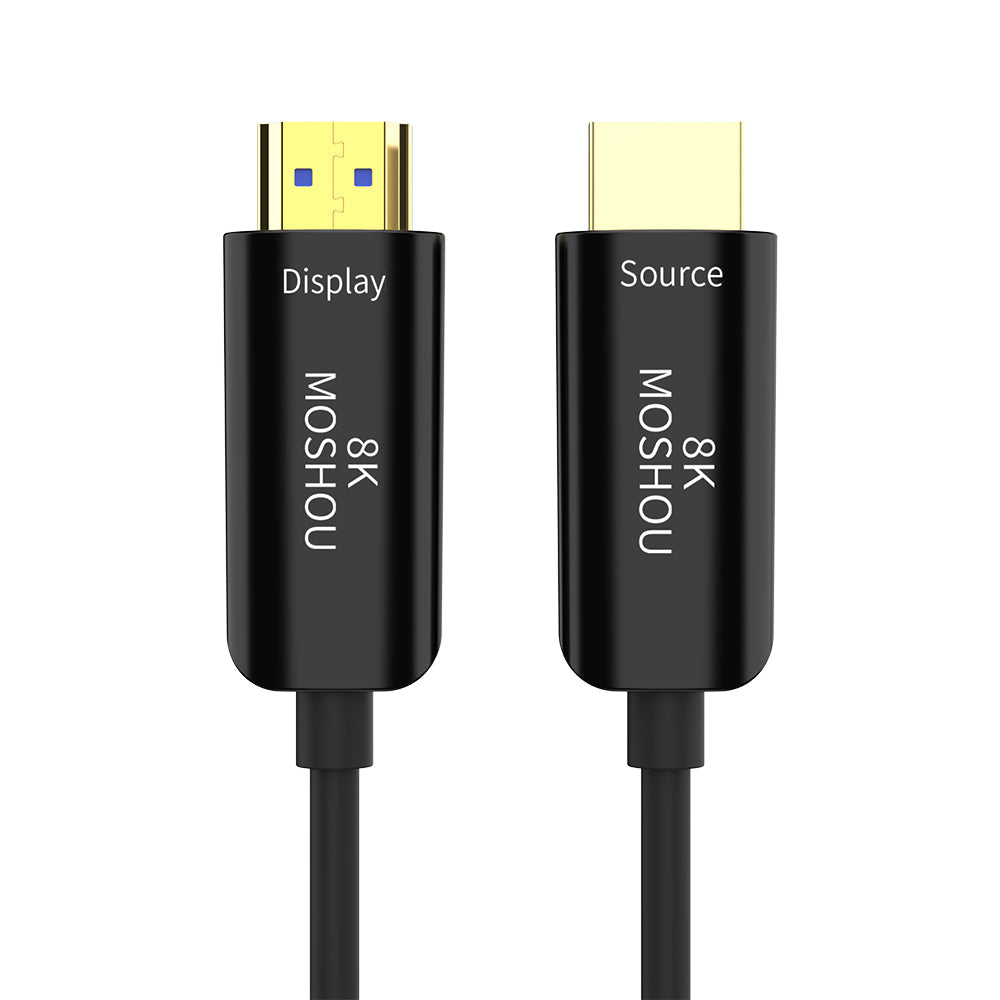

Consider an optical HDMI cable when you are routing high-bandwidth video across a room, through ceilings, between equipment racks or through building conduit. MOSHOU offers a 48Gbps HDMI 2.1 Active Optical Fiber Cable for long-distance installations.
For installations where a full-size connector is difficult to pull through conduit, the MOSHOU Pull-Through HDMI Fiber Optic Cable uses detachable connector options designed for routing.
When fiber optic DisplayPort makes sense
High-bandwidth DisplayPort links face the same distance challenge. For long workstation, control-room or display-wall runs, an active optical cable can reduce the signal-integrity problems that come with very long passive copper connections.
The MOSHOU DisplayPort 2.1 Optical Fiber Cable is designed for directional high-bandwidth source-to-display transmission.
Directionality is critical
Many active optical cables have a defined transmit and receive direction. Installing the DISPLAY end at the source can result in no picture at all. Before an in-wall installation:
- Identify SOURCE and DISPLAY ends.
- Connect the full system on the floor first.
- Test the exact target resolution, refresh rate and HDR mode.
- Only then route the cable permanently.
VESA also notes that active DisplayPort cables use signal conditioning and can support greater lengths than passive designs; directional labeling is part of proper installation practice.
EMI and grounding considerations
Optical transmission is inherently resistant to electromagnetic interference in its optical portion. This can be useful around power cables, racks and electrically noisy environments. However, an AOC is still a complete electronic assembly with connectors and auxiliary conductors, so installation quality still matters.
Bend radius and physical protection
Fiber does not mean indestructible. Avoid sharp bends, crushing, kinks and excessive pulling force. When routing through conduit, follow the product’s minimum bend radius and pulling instructions.
Armored optical designs add mechanical protection for installations where the cable may be exposed to more handling. MOSHOU’s Armored HDMI 2.1 Fiber Optic Cable is one example.
Copper vs fiber: practical decision table
| Scenario | Typical choice |
|---|---|
| Short desktop connection | Passive copper |
| Short TV/console connection | Certified copper HDMI |
| Moderately longer electrical run | High-quality copper or active copper depending bandwidth |
| Long high-bandwidth room/in-wall run | Active optical cable |
| High-EMI environment | Optical often has an advantage |
| Narrow conduit | Purpose-built pull-through/detachable optical design |
Do not choose fiber only because the resolution number is high
A short 4K120 or 8K60 connection can work perfectly with an appropriate certified copper cable. Fiber solves a distance and installation problem; it does not inherently create a better digital picture when both cable types already transport the same signal reliably.
FAQ
Is fiber optic HDMI better than copper?
Not universally. It is especially useful for long-distance and EMI-sensitive installations. Copper is often simpler and more economical for short runs.
Are optical HDMI cables directional?
Many are. Always follow the SOURCE and DISPLAY markings.
Can I extend an active optical cable with another cable?
Adding couplers or extensions can change the link budget and feature compatibility. For permanent high-bandwidth installations, use a cable designed for the full required distance whenever possible.
Should I test before installing in a wall?
Yes. Test the exact source, display, resolution, refresh rate, HDR and audio mode before permanent routing.
Does fiber eliminate all compatibility problems?
No. EDID, HDCP, source/display capability, adapters and protocol features still matter. Optical transport primarily addresses the physical signal path.
