HDMI 2.2 vs HDMI 2.1 vs HDMI 2.0: Bandwidth, Features & How to Choose the Right Cable
HDMI labels are easy to oversimplify. Many buyers see “HDMI 2.0,” “HDMI 2.1,” or “HDMI 2.2” and assume the newest number automatically means a better cable. In practice, choosing the correct HDMI connection requires you to match source device, display, required video format, cable bandwidth and cable category.
This guide explains the professional differences between HDMI 2.0, HDMI 2.1 and HDMI 2.2, and shows how to choose a cable without paying for bandwidth your system cannot use—or buying a cable that becomes the bottleneck.
The short version: 18Gbps vs 48Gbps vs 96Gbps
| Generation / system class | Typical maximum link bandwidth | Common use cases |
|---|---|---|
| HDMI 2.0-class | 18Gbps | 4K60, HDR depending on format and color settings |
| HDMI 2.1-class | Up to 48Gbps | 4K120, 8K60, VRR, high-frame-rate gaming, eARC |
| HDMI 2.2 | Up to 96Gbps | Higher uncompressed resolutions, refresh rates, bit depth and full-chroma formats |
HDMI Licensing Administrator states that HDMI 2.2 supports up to 96Gbps, while the existing Ultra High Speed HDMI Cable is intended for systems up to 48Gbps. The new Ultra96 HDMI Cable is designed for the full HDMI 2.2 bandwidth range. See the official HDMI 2.2 specification overview.
HDMI 2.0: still useful for many 4K60 systems
The HDMI 2.0 generation is associated with an 18Gbps transmission ceiling. That is enough for many 4K60 television, projector and workstation setups, but the exact format that fits inside the link depends on refresh rate, chroma sampling and color depth.
A 4K60 signal at higher bit depth and full 4:4:4 chroma carries substantially more data than 4K60 with reduced chroma or 8-bit color. This is why two devices can both say “4K60” yet place different demands on the HDMI link.
For an 18Gbps-class installation, the official cable category to look for is generally Premium High Speed HDMI Cable, rather than relying only on a seller writing “HDMI 2.0 cable.”
HDMI 2.1: the practical standard for current 4K high-refresh systems
HDMI 2.1 introduced Fixed Rate Link transmission for higher-bandwidth modes and raised the maximum bandwidth to 48Gbps. This is the range commonly associated with 4K120 and 8K60 systems, along with gaming and AV features such as VRR, ALLM and eARC when the connected products implement them.
One important professional detail: a device carrying an HDMI 2.1 specification does not necessarily implement every optional HDMI 2.1 feature. Always check the actual port specification of the console, graphics card, AVR, television or monitor.

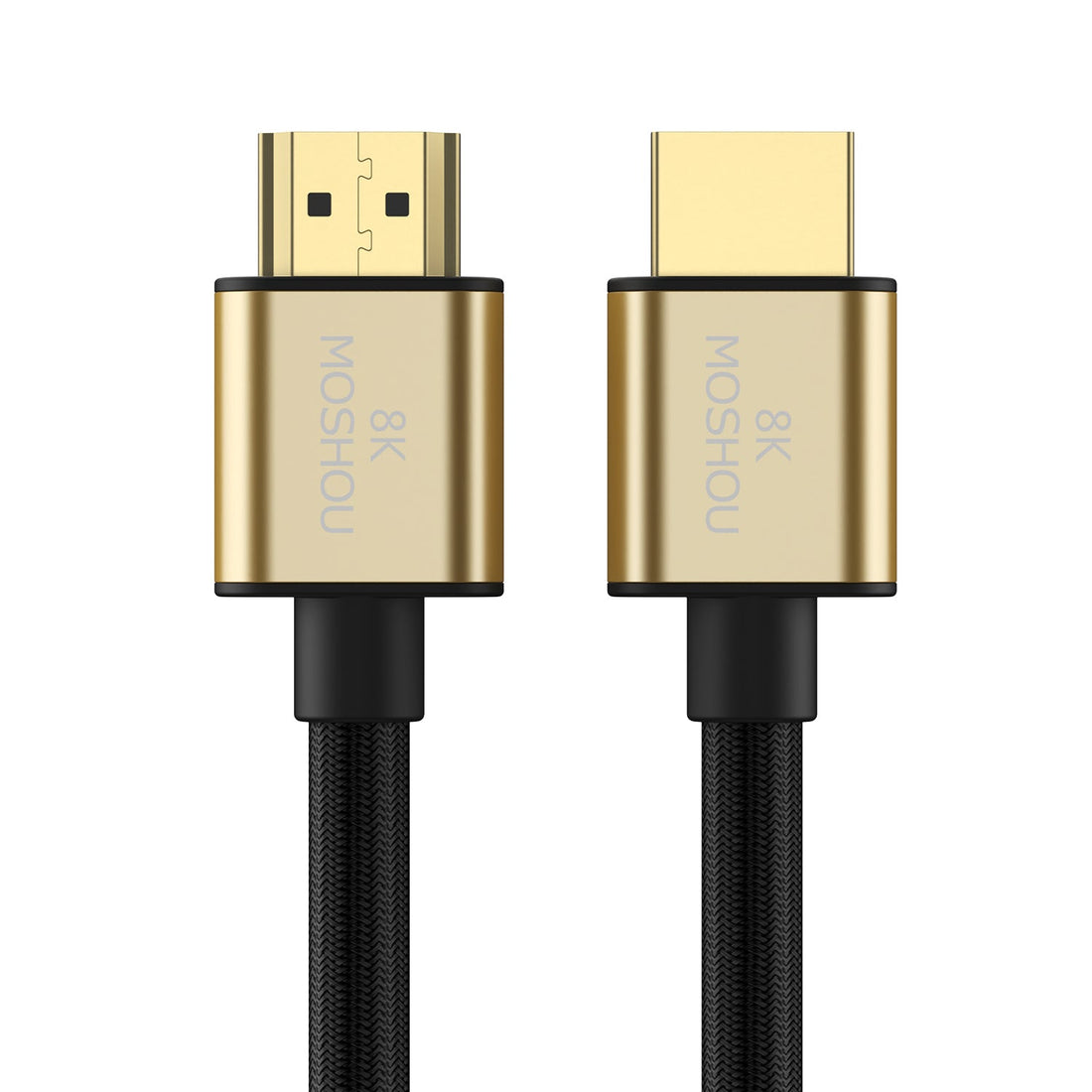

For systems requiring up to 48Gbps, use an Ultra High Speed HDMI Cable. MOSHOU offers a Certified Ultra High Speed HDMI cable designed for 48Gbps-class connections.
HDMI 2.2: what 96Gbps actually changes
HDMI 2.2 doubles the maximum link bandwidth from 48Gbps to 96Gbps. The purpose is not simply to put a larger resolution number on the box. More bandwidth allows a system to combine higher resolution, higher refresh rate, higher bit depth and full chroma sampling with fewer compromises.
HDMI’s official documentation lists uncompressed full-chroma examples such as 8K60 and 4K240 at 10-bit or 12-bit color, along with support for still higher formats. HDMI 2.2 also introduces the Ultra96 cable category for applications that exceed the 48Gbps capability of Ultra High Speed HDMI cables.
If your source and display only operate at 48Gbps or below, an Ultra96 cable does not create additional picture quality by itself. The entire signal chain determines the negotiated mode.
Why resolution alone does not tell you the required bandwidth
Video bandwidth is affected by several variables at once:
- Resolution: 1080p, 1440p, 4K, 8K and beyond
- Refresh rate: 60Hz, 120Hz, 144Hz, 240Hz and higher
- Color depth: 8-bit, 10-bit, 12-bit
- Chroma sampling: 4:4:4, 4:2:2 or 4:2:0
- Compression: uncompressed or DSC
For a deeper explanation, read our video bandwidth guide.
What is DSC?
Display Stream Compression is a visually lossless, low-latency compression technology used when a desired video format would otherwise require more transport bandwidth. DSC can make very demanding combinations of resolution and refresh rate practical, but both ends of the link must support the required mode.
Therefore, “supports 8K” or “supports 16K” should never be read in isolation. Check whether the advertised mode requires DSC, reduced chroma, a particular bit depth or another condition.
How to choose the right HDMI cable
For 4K60 TV and projector use: determine whether your system stays within the 18Gbps class. A properly certified Premium High Speed cable may be sufficient.
For PS5, Xbox, modern GPUs and 4K120 displays: choose a certified Ultra High Speed HDMI cable when the system needs up to 48Gbps.
For HDMI 2.2 equipment above 48Gbps: use the new Ultra96 HDMI Cable category when the product specification indicates Ultra96 bandwidth.
For long-distance installations: bandwidth is only half the problem. Signal loss increases with cable length, so an active optical cable may be more appropriate. See our copper vs fiber optic cable guide.
Common mistake: buying by “HDMI version” alone
HDMI officially defines cable categories and certification programs. The most reliable buying method is to verify the required bandwidth and look for the appropriate official cable category. A generic listing that only says “HDMI 2.1” without stating tested bandwidth, cable type or certification gives you less useful information than a properly specified 48Gbps Ultra High Speed cable.
FAQ
Does HDMI 2.2 make HDMI 2.1 obsolete?
No. A 48Gbps HDMI 2.1-class connection remains appropriate for many current 4K120 and 8K60 applications. HDMI 2.2 is useful when the source and display actually support bandwidth or formats beyond that range.
Can an HDMI 2.1 cable work with HDMI 2.0 devices?
Yes. HDMI is designed with backward compatibility in mind. The connection operates according to the capabilities shared by the source, display and cable.
Will a 96Gbps cable improve a 4K60 picture?
Not automatically. Digital links either negotiate and transport a supported signal correctly or encounter link problems. Extra cable bandwidth does not create additional image detail that the source is not sending.
Is 8K always more demanding than 4K?
Usually at the same refresh rate and format, but a high-refresh 4K signal with full chroma and high bit depth can also be extremely bandwidth-intensive. Compare the complete video format, not resolution alone.
Where can I shop MOSHOU HDMI cables?
Browse the MOSHOU HDMI Cable collection and choose by bandwidth, length, construction and installation type.
