Why 4K, 8K or 16K Gaming Can Flicker, Stutter or Drop Signal: HDMI Bandwidth, VRR & Cable Troubleshooting

When a gaming display starts flickering at 4K 120Hz, 4K 240Hz, 8K or higher, it is tempting to blame the cable immediately. Sometimes the cable is the weak link—but not always. A high-resolution gaming chain includes the GPU or console, output port, cable, receiver or switch, display input, firmware, color format, bit depth, refresh rate and optional features such as VRR. The entire link must agree on one transport mode.

1. First distinguish frame drops from HDMI signal errors

Frame-rate drop: the GPU or console cannot render frames as fast as the selected target. This is influenced by resolution, ray tracing, game settings, CPU/GPU load, thermal limits and the game engine. The HDMI link only transports frames that the source has already produced.

Signal-link error: the source has a frame ready, but the transport chain cannot maintain the selected video mode reliably. Typical symptoms include momentary black screens, image flashes, colored sparkles, audio interruptions, unstable HDR/VRR negotiation, or a display refusing a high-bandwidth mode.

This distinction matters because “no frame drops” is not a realistic cable promise. A better cable can provide the required signal bandwidth and margin for a supported mode; it cannot manufacture extra GPU performance.

2. Why resolution, refresh rate, color depth and chroma all consume bandwidth

Video bandwidth rises rapidly when several parameters increase together. Moving from 4K60 to 4K120 roughly doubles the number of frames transported per second before other overhead is considered. Moving from 8-bit to 10-bit or 12-bit color also increases data demand. Full 4:4:4 chroma carries more color information than subsampled modes such as 4:2:2 or 4:2:0.

This is why a display may work at 4K120 8-bit but become unstable when HDR, 10-bit color and full RGB/4:4:4 are enabled together. The resolution label alone does not tell you the required link rate.

HDMI Licensing Administrator states that HDMI 2.2 increases maximum bandwidth to 96Gbps and supports higher-resolution/high-refresh combinations including up to 16K60, while also enabling demanding uncompressed formats such as 8K60 and 4K240 with full 4:4:4 chroma at higher bit depths. See the HDMI 2.2 specification overview.

3. 48Gbps vs 96Gbps: what extra bandwidth actually buys you

HDMI 2.1 raised the maximum link capability to 48Gbps and officially supports modes such as 8K60 and 4K120. HDMI 2.2 doubles the maximum headline bandwidth to 96Gbps. More link bandwidth gives future displays and source devices more room for higher resolution, higher refresh rate, deeper color and less dependence on chroma reduction or compression.

But a 96Gbps-capable cable does not make an HDMI 2.1 GPU output 96Gbps. The usable mode is always limited by the lowest-capability component. If the GPU port, AV receiver or TV input is 48Gbps-class, that component remains the ceiling.

For a deeper comparison of interface generations, read our HDMI 2.2 vs HDMI 2.1 vs HDMI 2.0 guide.

4. What VRR fixes—and what it does not

Variable Refresh Rate allows a compatible display to vary its refresh timing to follow the source more closely. HDMI LA explains that VRR can reduce or eliminate tearing, judder and some visible stutter when the GPU’s frame completion time varies. This is especially useful when a game does not stay locked to one fixed frame rate.

However, VRR does not solve every kind of stutter. Shader compilation, CPU bottlenecks, storage stalls, network latency and inconsistent frame pacing can still be visible. VRR also cannot repair a physically unstable HDMI link.

Official reference: HDMI Variable Refresh Rate.

5. Where DSC enters the picture

At very demanding video modes, a source and display may use Display Stream Compression or another supported transport strategy to fit the signal into the available link bandwidth. DSC is designed as a visually lossless compression method when implemented by compatible devices. The exact use of compression depends on the source, display, interface implementation, timing and selected color format.

Do not assume that every advertised 8K240 or 4K480 mode is transported uncompressed. Extremely high modes can require compatible compression, reduced chroma, specific bit-depth settings or future hardware implementations. Always check the GPU and monitor documentation for the exact timing format.

Our video bandwidth, chroma and DSC guide explains these trade-offs in more detail.

6. Why high-bandwidth links fail intermittently instead of simply “not working”

Digital video is often described as working or not working, but marginal links can behave intermittently. At lower modes there may be plenty of signal margin. When the same chain is pushed to a higher data rate, electrical loss, connector quality, cable length, sharp bends, adapters, switches or an AV receiver can reduce that margin.

Common symptoms include:

• black screen for one or two seconds during gaming;
• display reconnect sounds or repeated HDCP/handshake negotiation;
• colored sparkles or brief pixel corruption;
• audio dropping while video continues;
• 4K120 works but 4K120 + HDR + 10-bit + VRR becomes unstable;
• the display only offers a lower refresh rate than expected.

A cable should therefore be selected for the actual signal mode and total installation—not merely because the connectors fit.

7. A professional troubleshooting sequence for 4K/8K gaming

1. Start with the simplest direct chain. Connect GPU or console directly to the display. Temporarily remove splitters, capture cards, docks, adapters and AV receivers.
2. Confirm the correct ports. Many TVs and GPUs have only some inputs/outputs capable of the highest mode.
3. Enable the display’s enhanced-bandwidth mode. Manufacturers may call this Enhanced HDMI, Input Signal Plus, 4K/8K Enhanced, Deep Color or a similar name.
4. Test a lower mode. If 4K60 is stable but 4K120 is not, the problem is likely related to high-bandwidth configuration rather than basic connectivity.
5. Disable options one at a time. Test HDR, 10/12-bit color, VRR and high refresh separately to identify which combination triggers instability.
6. Update GPU, console and display firmware. Handshake and VRR behavior can improve through software updates.
7. Try a shorter known-good high-bandwidth cable. This helps isolate cable or installation loss.
8. Reintroduce intermediate devices individually. The first component that causes the problem is usually where the signal chain loses support or margin.

8. QFT, ALLM and QMS are different from raw frame rate

QFT reduces the transport portion of display latency by moving each frame faster once it is ready. ALLM can automatically switch a compatible display into its lower-latency mode. QMS is aimed at media playback and uses VRR mechanisms to avoid temporary blackouts when changing frame rates while resolution stays the same. None of these features increases GPU rendering performance.

Official references: Quick Frame Transport and Quick Media Switching.

9. When should you actually consider a 96Gbps HDMI 2.2 cable?

A 96Gbps-class HDMI 2.2 cable makes the most sense when you are building around next-generation source and display hardware, want maximum short-run bandwidth headroom, or are preparing for modes beyond the traditional 48Gbps HDMI 2.1 envelope. It can also be useful in a premium workstation where the cable is difficult to replace later.

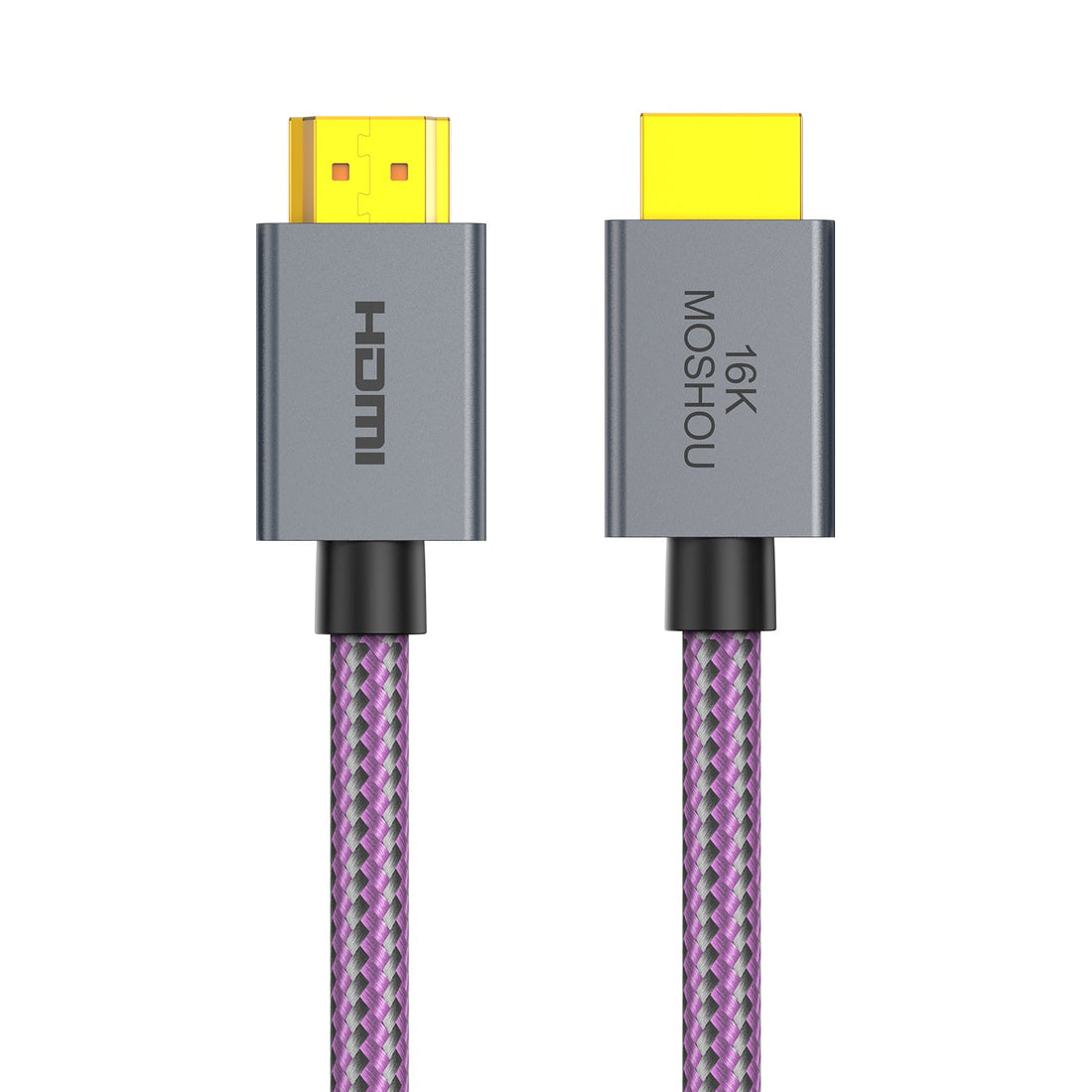

The MOSHOU 16K HDMI 2.2 cable used in this guide is a short-run 28AWG pure-copper design available from 0.5m to 3m. The listing advertises up to 96Gbps and high-resolution/high-refresh modes when the complete system supports them. As with any cable, real output is determined by the source, display and every intermediate device.

Frequently asked questions

Can an HDMI cable cause FPS drops?

Not in the normal GPU-rendering sense. The cable does not control how many frames the game engine renders. A marginal link can cause signal loss, blanking, corruption or fallback to a lower display mode, which may be perceived as an unstable experience.

Why does 4K60 work but 4K120 flicker?

4K120 places substantially more demand on the link. HDR, color depth and chroma can increase it further. Check port capability, enhanced-input settings, intermediate devices and cable margin.

Does 96Gbps mean my PC will output 96Gbps?

No. The output is limited by the source port, display input and negotiated video mode.

Will HDMI 2.2 improve a 4K120 console?

A compatible high-bandwidth cable can provide connection headroom, but it does not add unsupported console modes. A correctly working HDMI 2.1-class link may already be sufficient for the console’s supported output.

Does VRR eliminate all stutter?

No. VRR addresses display timing mismatch and tearing/judder related to variable frame delivery. It cannot remove CPU/GPU stalls or network/game-engine issues.

Is DSC bad for gaming image quality?

DSC is designed as visually lossless transport compression. Whether it is used depends on the hardware and selected timing.

Can a switch or AV receiver limit bandwidth?

Yes. Every intermediate device must support the same target mode. A 48Gbps or lower component remains the limit even if the cable on both sides is rated higher.

Should I always choose the longest cable available?

No. For passive high-bandwidth copper links, use the shortest practical length. For much longer installations, an active optical HDMI solution may be more appropriate.

Final recommendation

For smooth high-resolution gaming, do not shop by “16K” or “240Hz” alone. Match source capability + display capability + bandwidth + color format + refresh rate + VRR/DSC support + cable type. If a problem appears only at the most demanding modes, troubleshoot the signal chain systematically before assuming the game itself is dropping frames.
