Pull-Through Fiber Optic HDMI Cable Guide: 8K60, 4K120, Conduit & Direction

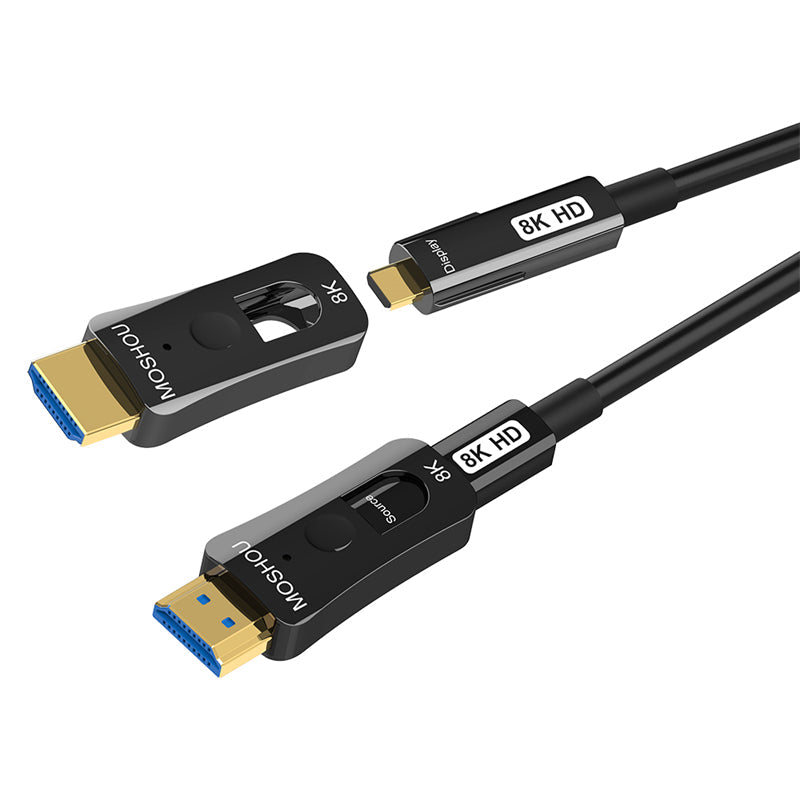

For concealed HDMI installations, the connector can be harder to route than the cable itself. A pull-through fiber optic HDMI cable uses a compact detachable connector section so the cable can pass through conduit more easily, then be reassembled at the destination. The MOSHOU model is an active optical, directional cable designed for Source-to-Display installation and advertised for up to 48Gbps, 8K60 and 4K120 with compatible equipment.

What is a pull-through HDMI cable?

A normal full-size HDMI plug can be difficult to pass through narrow conduit, wall cavities or pre-installed tubing. A pull-through design uses a smaller detachable connector section at one or both ends so the routed portion has a smaller profile.

This makes it useful for home theaters, meeting rooms, classrooms, studios and other installations where the cable needs to travel behind walls or through conduit.

Single detachable end vs dual detachable ends

Why active optical HDMI is directional

This is an active optical cable, so the signal-conversion electronics are arranged for one transmission direction. Connect the end marked Source to the computer, console, receiver or other output device, and connect the end marked Display to the TV, monitor or projector. If installed backwards, it will not transmit the signal correctly.

That direction check is especially important before a cable is permanently routed behind a wall.

48Gbps, 8K60 and 4K120: what should you expect?

The current product is advertised for up to 48Gbps and up to 8K60 or 4K120 with compatible equipment. Those are maximum product capabilities, not a guarantee that every source and display combination will produce those modes.

The source output, display input, graphics hardware, HDR settings, refresh rate, HDCP requirements and every other component in the chain must support the selected mode. For more background, read our HDMI generation guide and video bandwidth guide.

How much conduit clearance do you need?

The detachable compact section is much smaller than a permanently attached full-size HDMI plug, but the cable still needs enough clearance for the connector body, protection wrap, bends and pulling conditions.

The supplied product illustration recommends roughly 16mm or larger for a straight conduit, while the compact Micro HDMI section is shown at approximately 6 × 2.3mm. Treat those figures as installation guidance rather than a universal rule: elbows, joints and tight bends can require more space.

Test before permanent installation

1. Assemble the complete Source-to-Display connection outside the wall or conduit.
2. Verify the target resolution, refresh rate, HDR and audio behavior.
3. Confirm which end is Source and which is Display.
4. Power down the equipment before removing or reconnecting detachable sections.
5. Protect the compact connector while pulling.
6. After routing, reconnect the detachable section and test again before closing the wall or furniture panel.

Fiber handling: what to avoid

Active optical cables should be routed carefully. Avoid sharp bends, crushing, excessive pulling force, twisting at the connector and pulling directly on exposed contacts. Do not splice the cable. A route that looks short on a floor plan can still create difficult mechanical stress if it contains several tight conduit bends.

For more long-distance planning advice, see our copper vs fiber optic cable guide and long-distance 4K120/8K60 home theater guide.

HDR, eARC and audio compatibility

The product is designed to support compatible Dynamic HDR, eARC/ARC and multichannel audio equipment. As with resolution and refresh rate, those functions depend on the capabilities and settings of both connected devices and the HDMI ports being used.

About HDMI cable certification

Do not confuse a product's stated HDMI 2.1-related capabilities with third-party cable certification. The current MOSHOU listing does not claim third-party HDMI cable certification. If your project specifically requires a certified cable program or label, verify that requirement separately before purchase.

Before You Buy

• This is a directional active optical cable: Source → Display.
• Choose single or dual detachable ends based on how the conduit will be accessed.
• Measure the full installed route, not only straight-line distance.
• Check internal conduit diameter, bends and joints before ordering.
• Test the complete cable and target video mode before permanent installation.
• Do not assume every device supports 8K60 or 4K120 simply because the cable is capable of those modes.

FAQ

1. Why use a detachable HDMI connector?

It reduces the connector profile that must pass through conduit or a concealed cable route.

2. Is the cable bidirectional?

No. Connect Source to the signal output and Display to the TV, monitor or projector.

3. Can it support 8K60?

The product is advertised for up to 8K60 with compatible equipment and settings.

4. Can it support 4K120?

Yes, 4K120 is among the advertised maximum modes, subject to the full signal chain.

5. Is 48Gbps guaranteed on every device?

48Gbps is the stated cable capability. Actual usable video modes depend on the connected source and display.

6. What conduit size should I use?

The product illustration recommends around 16mm or larger for a straight route, but bends and pulling conditions can require more clearance.

7. Should I test the cable before pulling it through the wall?

Yes. Always test the complete Source-to-Display connection and your target video mode before permanent installation.

8. Can I pull directly on the connector contacts?

No. Protect the connector and avoid excessive pulling force, sharp bends or crushing.

9. Does it support eARC?

The listing states eARC/ARC support with compatible equipment and ports.

10. Is this an officially certified Ultra High Speed HDMI Cable?

The current product listing does not claim third-party HDMI cable certification, so it should not be described as certified unless separate certification is provided.

Final verdict

A pull-through active optical HDMI cable is most useful when installation space is the real problem. Choose the detachable-end configuration and length based on your route, verify Source-to-Display direction, test the cable before installation and allow enough conduit clearance for bends and connector protection.
