Long-Distance 4K120 & 8K60 Home Theater Guide: Fiber HDMI, Projectors, eARC & Black-Screen Troubleshooting

Running HDMI from a media cabinet to a ceiling projector, across a large living room, or through a meeting-space conduit is a different engineering problem from connecting a console to a TV with a one-meter cable. At 4K120, 8K60, HDR and high-bit-depth video, the complete signal chain has to preserve enough bandwidth and signal margin across every device and every meter of cable.

1. Why long-distance HDMI is harder than short-distance HDMI

Every high-speed electrical link has loss. With passive copper, attenuation increases with frequency and cable length. That becomes more important as the data rate rises. A setup that works perfectly at 1080p60 or 4K30 may become marginal at 4K120 because the link is transporting far more data.

An active optical HDMI cable converts the high-speed signal for transmission through optical fibers and converts it back at the far end. This approach is useful for long runs because optical transmission is highly resistant to electromagnetic interference and avoids the same high-frequency copper loss over most of the cable length. The trade-off is that AOC contains active electronics, is directional, and needs more careful handling than an ordinary short passive cable.

For a detailed material comparison, see our copper vs fiber optic HDMI and DisplayPort guide.

2. 4K120 and 8K60 are not just resolution numbers

The required link bandwidth depends on resolution, refresh rate, color depth, chroma format and whether compression is used. A 4K120 10-bit HDR signal can be much more demanding than 4K60 8-bit SDR. Likewise, an 8K60 mode may use a different transport format depending on the source and display.

HDMI 2.1 introduced a maximum link capability of 48Gbps and supports high-bandwidth formats including 8K60 and 4K120 when the complete system supports them. That is why a professional installation should be planned around the exact video mode—not just “8K cable” printed on the packaging.

For the bandwidth relationship between resolution, refresh rate, bit depth and chroma, read our video bandwidth explained guide.

3. Treat the home-theater chain as one system

A typical installation may look like:

Console / PC / streaming box → AV receiver or HDMI switch → long HDMI cable → TV or projector

Every stage must pass the selected format. If the console and projector support 4K120 but the AV receiver supports only a lower-bandwidth mode, the AVR becomes the limit. The same applies to splitters, capture devices, wall plates, extenders and adapters.

When troubleshooting, temporarily bypass intermediate hardware and connect the source directly to the display. If the high-bandwidth mode becomes stable, add devices back one at a time until the limiting component is identified.

4. Direction matters: Source and Display are not interchangeable

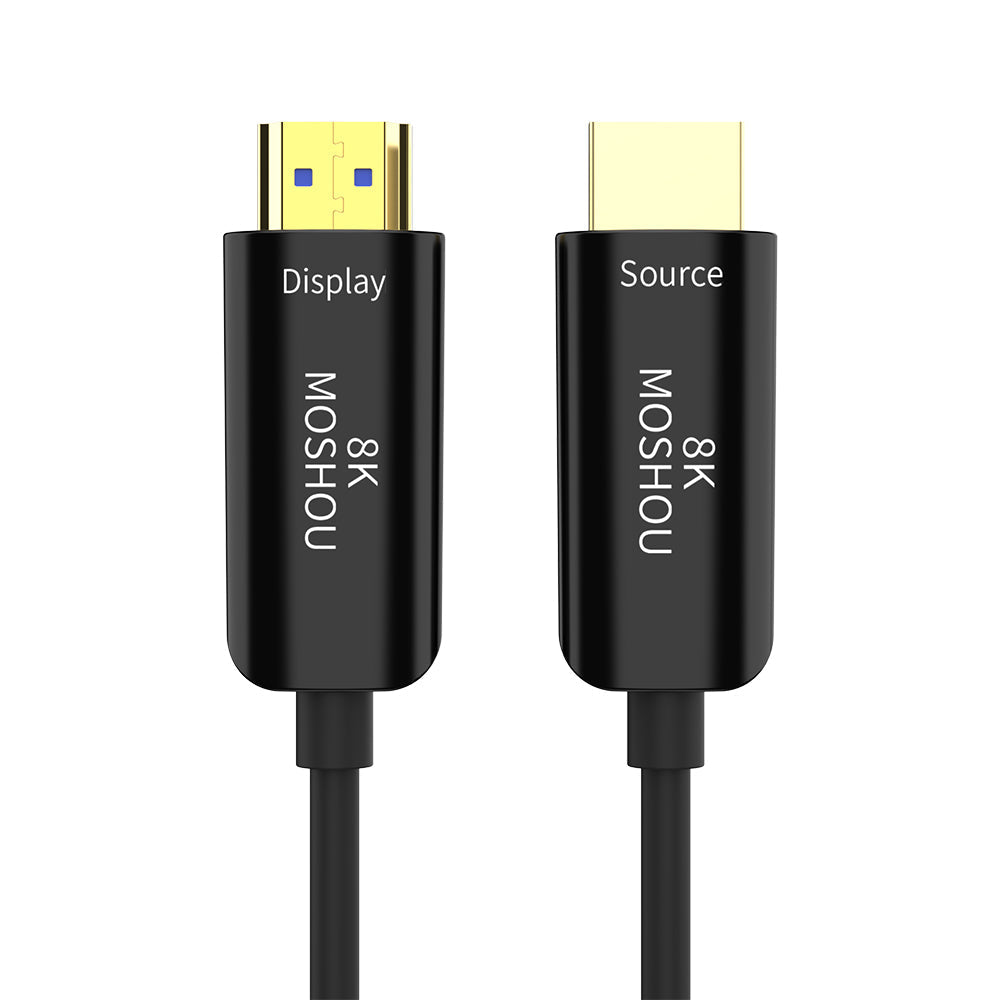

The MOSHOU fiber cable is a one-way active optical cable. The connector marked Source must connect to the HDMI output of the console, PC, streamer, Blu-ray player or AV receiver. The connector marked Display must connect to the TV, monitor or projector input.

If the ends are reversed, the cable may show no picture at all. This is especially important before installing a cable inside a wall or conduit. Always perform a complete source-to-display test at the target resolution and refresh rate before final routing.

5. Why a projector can show a black screen when switching modes

A temporary black screen does not always mean the cable has failed. When a source changes resolution, refresh rate, HDR state or color format, the source and display may need to renegotiate the HDMI link. Projectors can take longer than TVs to resynchronize because their video-processing pipeline may also change modes.

Movie content commonly uses frame rates such as 24, 25, 30, 50 or 60 fps. A streaming box switching between a 60Hz menu and a 24Hz film can therefore trigger a brief resync. HDMI Quick Media Switching (QMS), when supported by both source and display, uses VRR mechanisms to reduce or eliminate the blackout caused by frame-rate changes at the same resolution. It does not remove blackouts caused by a resolution change.

Official reference: HDMI Quick Media Switching.

6. HDR, color depth and chroma can expose a marginal link

If 4K60 SDR works but 4K60 HDR or 4K120 HDR does not, the link may be failing only when the data requirement increases. Ten-bit or twelve-bit color and full RGB/4:4:4 can require substantially more bandwidth than a lower-bit-depth or chroma-subsampled signal.

Many TVs and projectors also require an “enhanced” input setting before accepting their highest-bandwidth modes. Depending on the manufacturer, this may be called Enhanced HDMI, Deep Color, Input Signal Plus, 4K Enhanced or 8K Enhanced. Check the specific display manual rather than assuming every HDMI port is configured identically.

7. What eARC changes in a home-theater system

eARC is the enhanced Audio Return Channel used to send audio from a compatible TV back to a compatible soundbar or AV receiver through an HDMI connection. It is separate from the forward video path. The TV, AVR/soundbar, selected HDMI ports and cable topology all need to support the intended audio-return arrangement.

The MOSHOU optical HDMI listing supports compatible eARC/ARC systems, but eARC should still be tested in the real topology before in-wall installation. If your AVR sits at the source end and all sources connect directly to it, your audio path may be different from a setup where sources connect to the TV first and audio returns to the AVR.

Do not diagnose every audio dropout as a cable problem. Check eARC enablement, CEC settings, audio format, AVR firmware and the exact HDMI ports used.

8. Long-run gaming: 4K120, VRR and ALLM

A long projector or TV run can also be used for gaming. The MOSHOU 48Gbps optical cable is specified for compatible 4K120, VRR and ALLM setups. VRR can synchronize display timing with variable frame delivery, while ALLM can switch a compatible TV or display into a lower-latency mode.

These features do not increase the GPU's rendering performance. If a game drops from 120 fps to 80 fps because the GPU is overloaded, the cable cannot restore those missing frames. A cable-related failure is more likely to appear as a signal dropout, flash, handshake failure, audio interruption or the loss of a high-bandwidth display mode.

For a deeper diagnostic workflow, see our 4K, 8K and 16K gaming HDMI troubleshooting guide.

9. Installation checklist before the cable goes inside the wall

1. Confirm direction. Source end at the source/AVR output; Display end at the TV/projector.
2. Bench-test the full cable first. Use the exact source and display at the highest mode you plan to run.
3. Test HDR, 4K120/8K60 and audio separately. Do not assume a 1080p picture proves the highest mode is stable.
4. Do not sharply bend or crush AOC. Follow a gentle routing path, especially at conduit turns and connector exits.
5. Avoid pulling on the connector housing. Use proper cable-pulling methods and protect the plug during routing.
6. Check every intermediate device. Wall plates, couplers, receivers and switches can reduce the supported mode.
7. Enable enhanced HDMI mode on the display. Confirm the correct input is being used.
8. Update firmware. Source, AVR and display updates can affect HDR, VRR and HDCP behavior.
9. After installation, repeat the complete test. A cable that was pinched or bent during routing may behave differently afterward.

10. When a long fiber HDMI cable is the right choice

The strongest use cases are installations where the distance itself is part of the problem: a ceiling-mounted projector, an AV rack at the back of the room, a TV connected through concealed conduit, a conference-room display, or a long PC-to-monitor/TV link.

The MOSHOU HDMI 2.1 active optical cable is available from 0.5m up to 50m, but fiber is especially relevant when the run becomes longer and passive high-bandwidth copper is less convenient. For a short 1–3m console-to-TV connection, a well-designed passive copper HDMI cable can be simpler because it is non-directional and does not contain active optical conversion electronics.

Frequently asked questions

Can this fiber HDMI cable run 4K120 over 20m or 30m?

The MOSHOU product is specified for compatible 4K120 operation across its available AOC lengths, but the complete source, receiver/switch and display chain must support the mode. Test the real system before permanent installation.

Does 48Gbps guarantee 8K60?

No. The cable provides the transport capability for supported HDMI 2.1 modes, but the source and display must both support 8K60 and the selected color/bit-depth configuration.

Why do I get no picture at all?

First check cable direction. Source and Display ends are not interchangeable. Then confirm the selected HDMI input, source output mode and power state of every intermediate device.

Why does the image go black when a movie starts?

The source may be switching frame rate, HDR state or resolution and causing the display to resynchronize. Compatible QMS can reduce some same-resolution frame-rate switching blackouts, but not every mode change.

Will a fiber HDMI cable stop game frame drops?

It can help maintain the video link over a long run, but it cannot increase the FPS generated by the console or GPU. Rendering frame drops and HDMI signal dropouts are different problems.

Does the cable support eARC?

The product is specified for compatible eARC/ARC systems. Actual audio-return behavior depends on the TV, AVR/soundbar, port selection and system topology.

Can I reverse the cable if the equipment layout changes?

No. Active optical HDMI is directional. The Source end remains at the transmitting device and Display end at the receiving display.

Can I use a coupler or wall plate in the middle?

Possibly, but every added connection can become a bandwidth or handshake point. For the highest modes, a direct source-to-display run is the cleanest diagnostic baseline.

Should I choose fiber for a 1m gaming cable?

Usually not because of distance alone. For short runs, passive copper can be simpler. Fiber is most valuable when long distance, routing or interference resistance is the main requirement.

Can I bend an optical HDMI cable tightly around a corner?

Avoid sharp bends, knots and crushing. Use a gradual bend and protect the cable during conduit installation.

Final recommendation

For long-distance 4K120 or 8K60, choose the cable only after mapping the full AV chain. Confirm the source mode, every intermediate HDMI device, display input, cable direction, HDR/VRR settings and the physical route. A well-planned fiber HDMI run can move a high-bandwidth signal across a room without the bulk and loss challenges of very long passive copper, but installation discipline matters just as much as the headline specification.

Technical notice: HDMI, HDMI High-Definition Multimedia Interface and related marks are trademarks of HDMI Licensing Administrator, Inc. MOSHOU is an independent cable brand and is not affiliated with or endorsed by HDMI LA, TV, projector, console or AV-receiver manufacturers. Maximum resolution, refresh rate, HDR and audio functions depend on compatible equipment throughout the complete signal chain.
