Mini DisplayPort to HDMI Guide: 4K60, Thunderbolt 2 Compatibility, Audio & Signal Direction

A Mini DisplayPort to HDMI cable is useful when your computer has a Mini DisplayPort or Thunderbolt 2-shaped video output and your monitor, TV or projector uses HDMI. The key thing to check is signal direction: this type of cable works from Mini DisplayPort source to HDMI display, not the other way around.

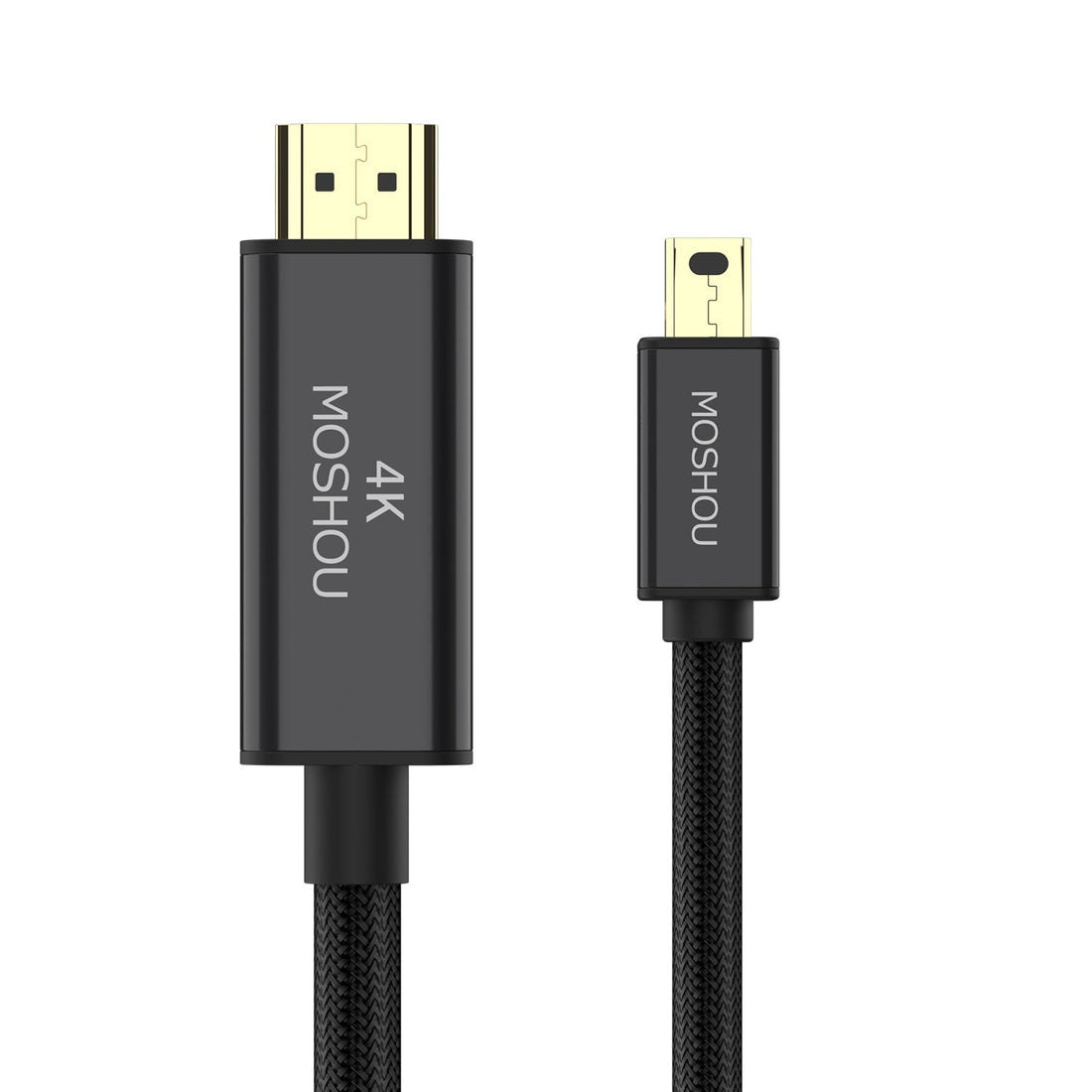

The MOSHOU Mini DisplayPort to HDMI cable is designed for compatible Mini DisplayPort / Thunderbolt 2 source devices and supports up to 4K at 60Hz when the source, display and settings all support that mode.

What Is Mini DisplayPort?

Mini DisplayPort is a compact display connector used on selected older computers and displays. Some Thunderbolt 1 and Thunderbolt 2 ports use the same physical connector shape, but connector shape alone does not guarantee video-output compatibility. Always check the source device specification before ordering.

Mini DisplayPort Is Not Mini HDMI

These two connectors are different. Mini DisplayPort has a different physical shape and signaling method from Mini HDMI. A Mini DisplayPort to HDMI cable cannot be connected to a Mini HDMI camera port.

Can It Support 4K at 60Hz?

The MOSHOU cable is specified for up to 4K60 with compatible equipment. The final output depends on the source hardware, the display, operating-system settings and the selected display mode.

If a system only outputs 4K30 or 1080p, check the source device's Mini DisplayPort version and graphics capability first. A cable cannot add a higher resolution or refresh rate than the source can output.

Does It Carry Audio?

Yes, the cable is designed to carry supported digital video and audio together to the HDMI display. Audio availability still depends on the source hardware, operating system and HDMI display capability.

Can I Use It for Mirror or Extended Displays?

Yes. The cable can be used for mirrored or extended desktop modes when supported by the operating system and graphics hardware. This makes it useful for office work, presentations, video playback and secondary-display setups.

Which Devices Can Use This Cable?

It is intended for compatible devices with a Mini DisplayPort or Thunderbolt 2-shaped video output, including selected older MacBook Air, MacBook Pro, Mac mini, Microsoft Surface and other computers with the correct port.

It is not for USB-C / Thunderbolt 3 / Thunderbolt 4 ports, full-size DisplayPort ports or Mini HDMI ports.

Why Signal Direction Matters

This cable is directional:

Mini DisplayPort source → HDMI display

It does not work as HDMI source → Mini DisplayPort display. If your source only has HDMI and your monitor only has DisplayPort, you need an active HDMI-to-DisplayPort solution instead.

2m or 3m: Which Length Should You Choose?

The current listing offers 2m and 3m versions. Choose 2m for a typical desk setup and 3m if the TV, projector or display is farther away. Avoid unnecessary excess length when the devices are close together.

Before You Buy

• Confirm the source has Mini DisplayPort or a compatible Thunderbolt 2-shaped video output.
• Confirm the display uses HDMI input.
• Remember that the cable is one-way from Mini DisplayPort to HDMI.
• Do not confuse Mini DisplayPort with Mini HDMI.
• 4K60 requires compatible source and display hardware.
• This cable is not for USB-C / Thunderbolt 3 or 4 ports.

Frequently Asked Questions

Is Mini DisplayPort the same as Thunderbolt 2?
They can share the same connector shape, but the device still needs to support video output through that port.

Is Mini DisplayPort the same as Mini HDMI?
No. They are different connectors and are not interchangeable.

Can this cable support 4K60?
Yes, with compatible source and display equipment.

Can it carry audio?
Yes, supported audio can travel with the HDMI video signal.

Can I use it from HDMI to Mini DisplayPort?
No. The cable is directional from Mini DisplayPort source to HDMI display.

Does it support extended desktop mode?
Yes, when the source hardware and operating system support extended displays.

Will it work with USB-C Thunderbolt ports?
No. USB-C Thunderbolt 3 and 4 use a different connector.

Which length should I choose?
Use 2m for typical desk setups and 3m when more reach is required.

Final Verdict

The MOSHOU Mini DisplayPort to HDMI cable is a practical solution for older computers that still use Mini DisplayPort or Thunderbolt 2-shaped outputs. The main checks are port type, signal direction and whether the source really supports the 4K60 mode you want.
