Mini HDMI vs Micro HDMI: Which Cable Do You Need for Cameras, Monitors & Capture Cards?

If your camera, field monitor, capture device or portable video setup has a smaller HDMI port, the first question is not simply “Do I need a small HDMI cable?” You need to identify whether the device uses Mini HDMI (Type C) or Micro HDMI (Type D). The two connectors are physically different and cannot be plugged into each other.

This guide explains the practical differences, how to identify each port, and when a slim Mini HDMI-to-HDMI or Micro HDMI-to-HDMI cable makes more sense for a compact production setup.

Mini HDMI vs Micro HDMI at a glance

Feature	Mini HDMI	Micro HDMI
HDMI connector type	Type C	Type D
Relative size	Smaller than full-size HDMI	Smaller than Mini HDMI
Common use	Cameras, camcorders, field equipment	Compact cameras, action cameras and small portable devices
Interchangeable?	No. Always match the connector on the source device.

HDMI recognizes full-size Type A, Mini Type C and Micro Type D connector families. The connector size does not by itself determine the maximum resolution or refresh rate; performance depends on the complete source, cable and display chain. For connector terminology, see the HDMI organization’s connector information.

What does Mini HDMI Type C look like?

Mini HDMI Type C is a compact HDMI connector often found on cameras and video equipment where full-size HDMI would take too much space. It is visibly larger than Micro HDMI, but still much smaller than the familiar Type A port on TVs and desktop monitors.

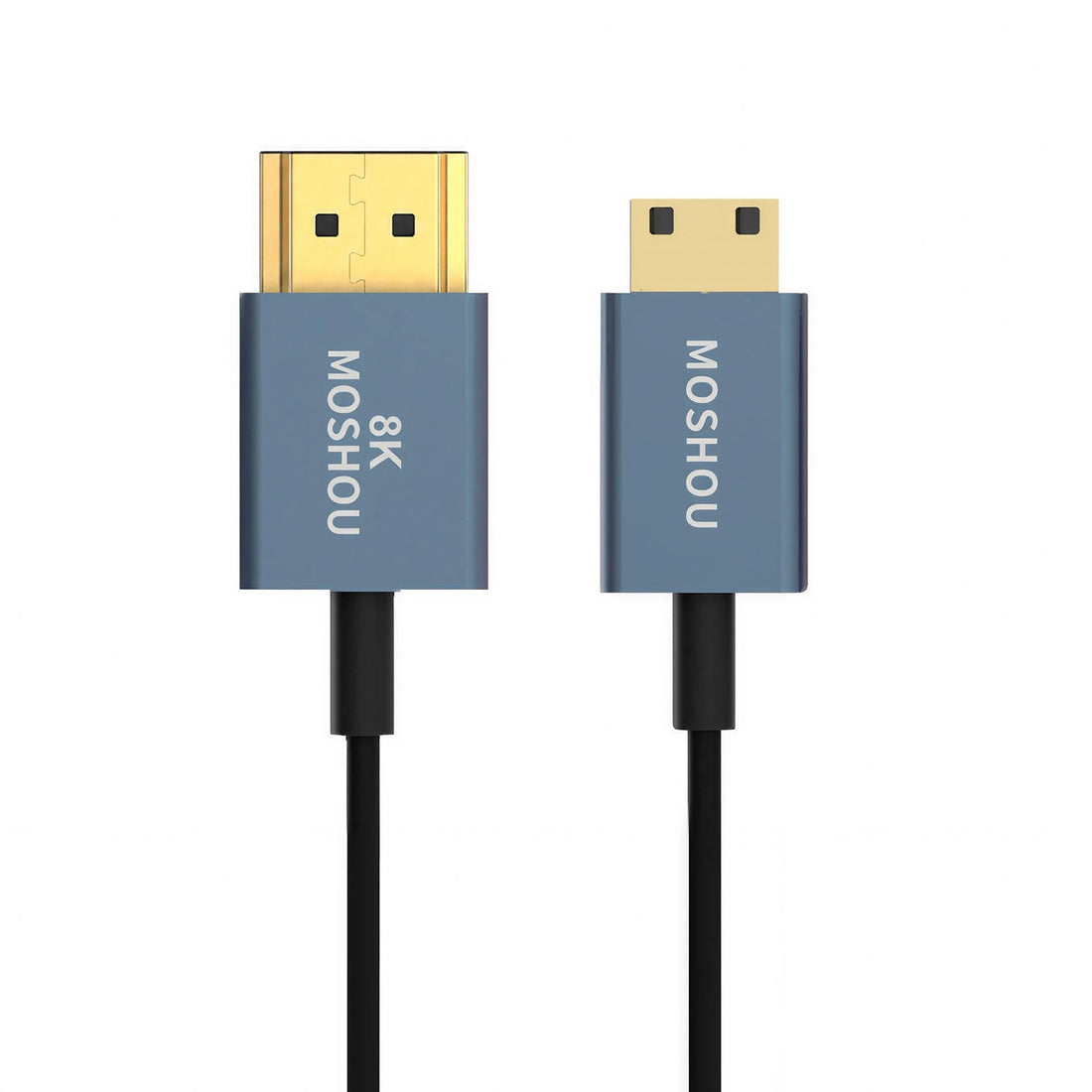

The MOSHOU Mini HDMI cable uses a Mini HDMI Type C plug at the source end and a standard HDMI Type A plug at the display end. Its approximately 2.4 mm coaxial cable body is designed to reduce bulk around cameras, cages, arms and field monitors.

What does Micro HDMI Type D look like?

Micro HDMI Type D is smaller again. Because the connector is tiny, it is especially easy to confuse with other compact ports when looking at a device from an angle. Do not rely only on the device category: two cameras from different generations can use different ports.

The safest buying method is simple: inspect the port label and the device manual, then compare the physical connector with a reliable diagram before ordering.

How to identify the right port before buying

1. Check the exact device model. Do not assume every device in a product family uses the same connector.
2. Look for an HDMI label. Then compare the port shape and size with Type C and Type D references.
3. Check the manual or manufacturer specifications. Search for “Mini HDMI Type C” or “Micro HDMI Type D,” not just “HDMI output.”
4. Confirm the other end. These MOSHOU cables terminate in standard HDMI Type A for a monitor, TV, projector, receiver or capture device with a full-size HDMI input.

Why cable flexibility matters on camera rigs

For a desktop TV, a thick HDMI cable is usually easy to route. A camera cage, gimbal or field monitor is different. The cable may need to bend immediately after leaving the port, pass around a mounting arm and move with the camera. Excess cable stiffness can add unwanted pull at the connector.

Both MOSHOU versions use an approximately 2.4 mm ultra-slim coaxial construction and are offered in short lengths starting at 0.25 m, which can help keep a compact rig cleaner than using unnecessary cable length.

What about 4K120, 8K60 and 48Gbps?

The current MOSHOU Mini HDMI and Micro HDMI product listings specify up to 48Gbps and advertise support up to 8K60 and 4K120 on compatible equipment. That does not mean a cable can add 4K120 or 8K60 to a camera or display that does not support those modes.

HDMI performance is an end-to-end result. The source output, receiving display or capture device, selected resolution, refresh rate, HDR mode and cable all need to support the requested signal. For a deeper explanation, read our video bandwidth guide and HDMI 2.2 vs HDMI 2.1 vs HDMI 2.0 guide.

Before you buy

• Mini HDMI Type C and Micro HDMI Type D are different connectors.
• Confirm your exact source-device port before ordering.
• These cables connect a smaller HDMI source port to standard HDMI Type A; they are not USB-C adapters.
• Choose the shortest practical length for a compact rig, while still leaving enough slack for movement.
• Maximum resolution and refresh rate depend on the complete connected system.

FAQ

Is Mini HDMI the same as Micro HDMI?

No. Mini HDMI is Type C and Micro HDMI is Type D. Their plugs are different sizes and shapes.

Can I force a Mini HDMI plug into a Micro HDMI port?

No. Never force a connector. Using the wrong plug can damage the device port.

Is Mini HDMI the same as USB-C?

No. They are different physical interfaces. A USB-C port may support video on some devices, but it does not accept a Mini HDMI plug.

Is Micro HDMI the same as Micro USB?

No. The connector shape and electrical interface are different.

Which connector is more common on cameras?

There is no universal answer. Camera makers use different connectors by model and generation, so check the exact specification.

Can these cables connect directly to a TV?

Yes, when the source device has the matching Mini or Micro HDMI output and the TV has a standard HDMI Type A input.

Can a cable make my camera output 4K120 or 8K60?

No. The source device must already support the requested output mode, and the entire signal chain must also be compatible.

What cable length should I choose for a camera rig?

Use the shortest length that reaches comfortably without pulling on the ports. MOSHOU offers these slim cables in multiple lengths from 0.25 m to 2 m.

Why does a thin cable help on a gimbal or cage?

A slimmer, more flexible cable can be easier to route and can reduce bulky cable loops around moving equipment.

Final verdict

Choose by connector first, performance second. If your device has Mini HDMI Type C, buy a Mini HDMI cable. If it has Micro HDMI Type D, buy a Micro HDMI cable. Once the connector is correct, then compare length, flexibility and the signal mode required by your source and display.
