MOSHOU 8K HDMI 2.1 Armored Optical Fiber Cable – OM4, 48Gbps, 8K60/4K120

MOSHOU 8K HDMI 2.1 Armored Optical Fiber Cable – OM4, 48Gbps, 8K60/4K120

$140.99 USD
$140.99 USD
Sale Sold out
Shipping calculated at checkout.
Length

The MOSHOU 8K HDMI 2.1 armored optical fiber cable is designed for stable high-bandwidth audio and video transmission across short and long installations. Its hybrid OM4 optical-fiber construction, silver-plated single-crystal copper conductors and reinforced green armored jacket make it suitable for home theaters, gaming displays, meeting rooms, monitoring systems and other fixed AV routes.

Key Features

  • HDMI 2.1 bandwidth: supports transmission up to 48Gbps for compatible source and display equipment.
  • Up to 8K at 60Hz: supports 8K60, 4K120 and 2K144 signals when the connected devices, settings and content support those modes.

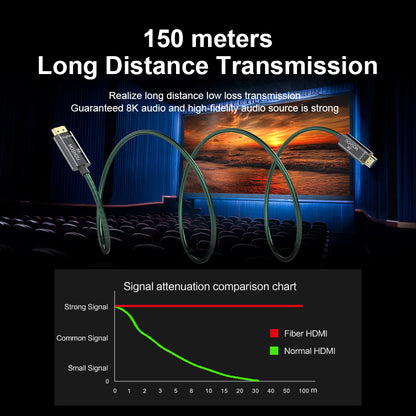

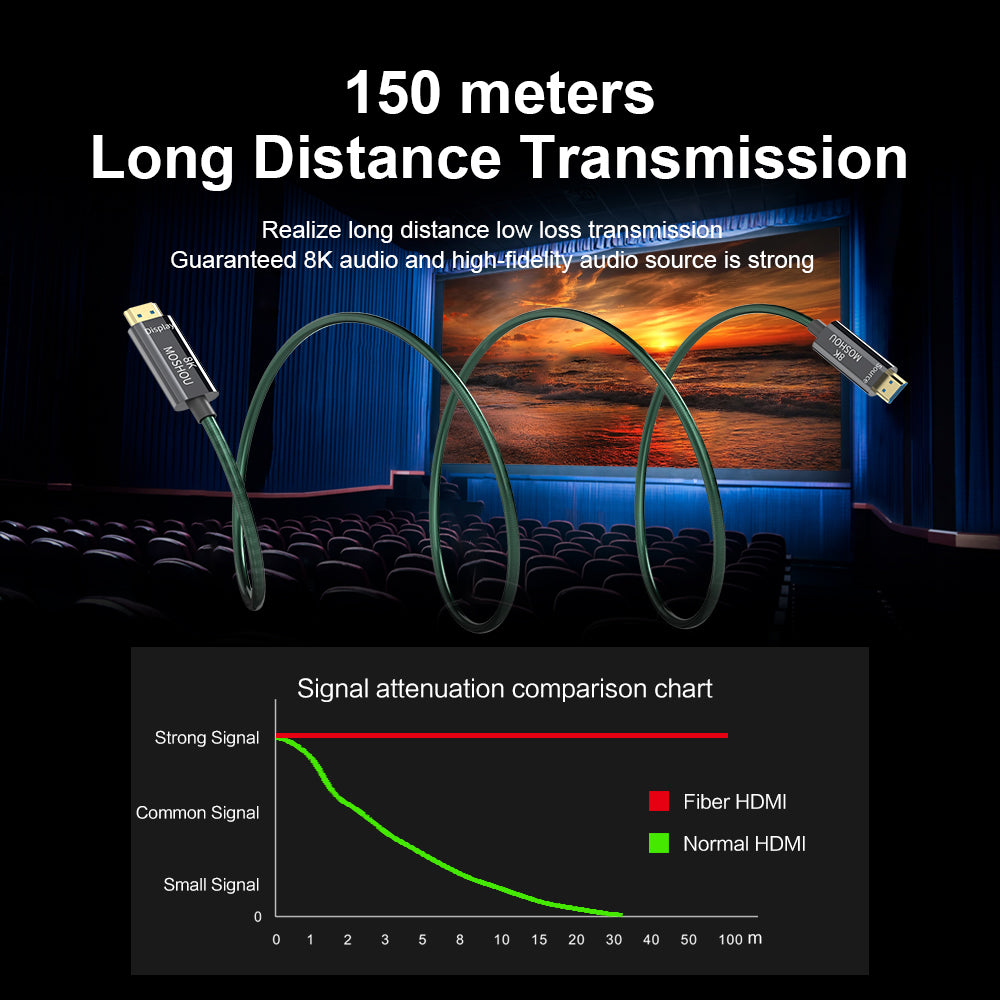

  • Hybrid OM4 optical design: optical fibers carry high-speed signals over distance while copper conductors support the active connection.
  • Silver-plated single-crystal copper: the hybrid conductor structure is designed for reliable power and control-signal transfer within the active optical cable.

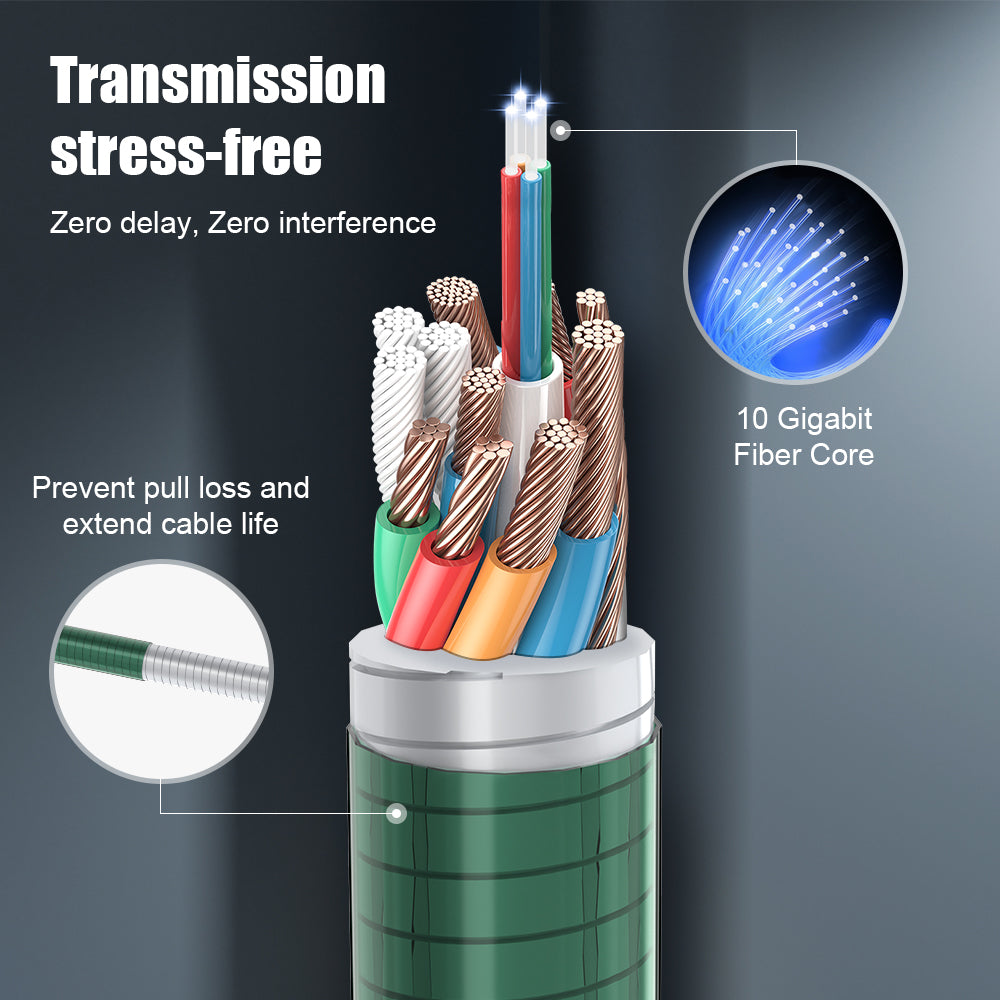

  • Armored internal protection: reinforced layers shown for this model include optical fibers, copper conductors, aluminum-foil shielding, tensile reinforcement, aramid fiber and a steel protective layer.
  • Gaming features: supports compatible Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and high-refresh-rate output.
  • Enhanced audio return: supports compatible eARC audio transmission, including formats passed between supported HDMI devices.
  • Dynamic picture formats: supports compatible Dynamic HDR, HDR10 and Dolby Vision signals when available from the complete system.

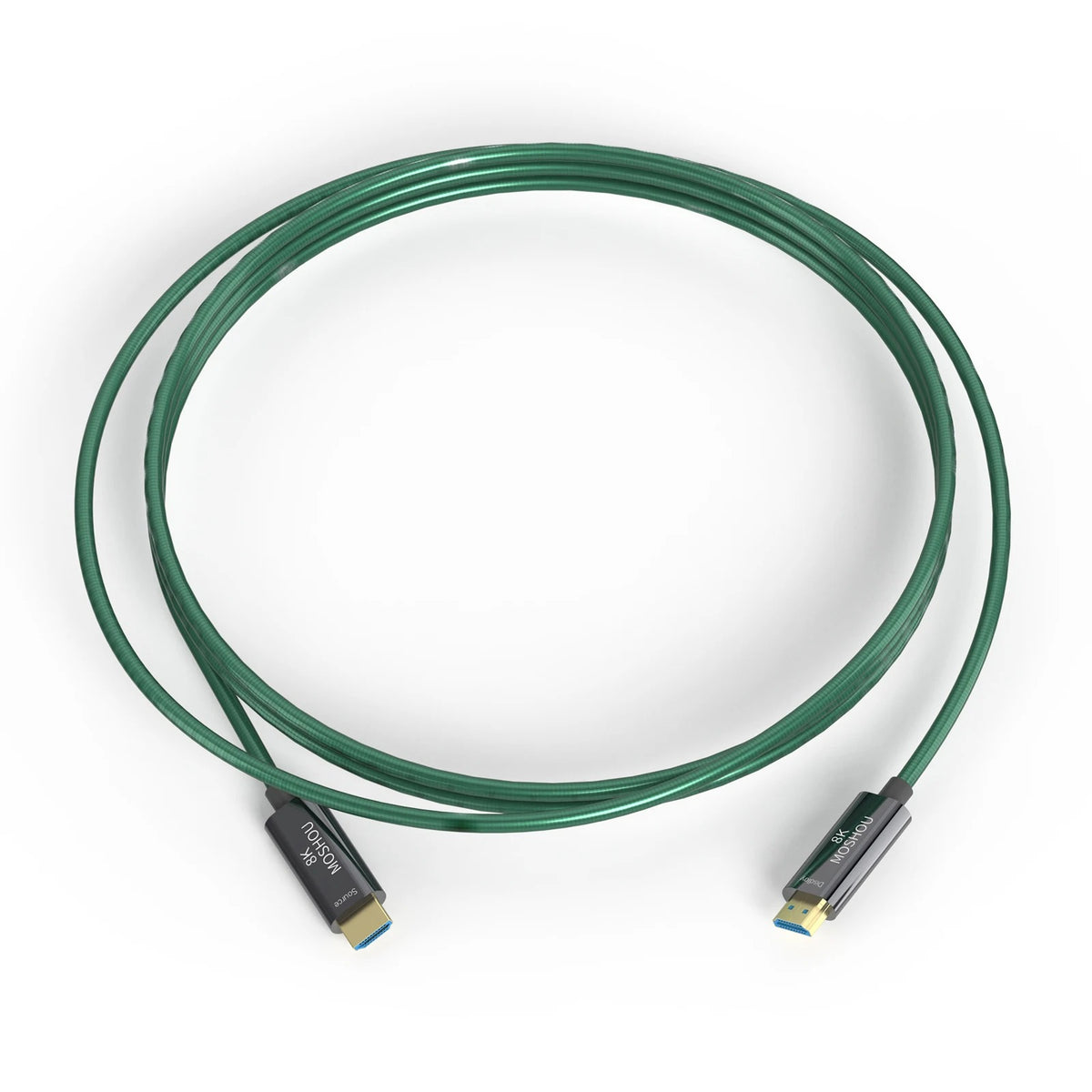

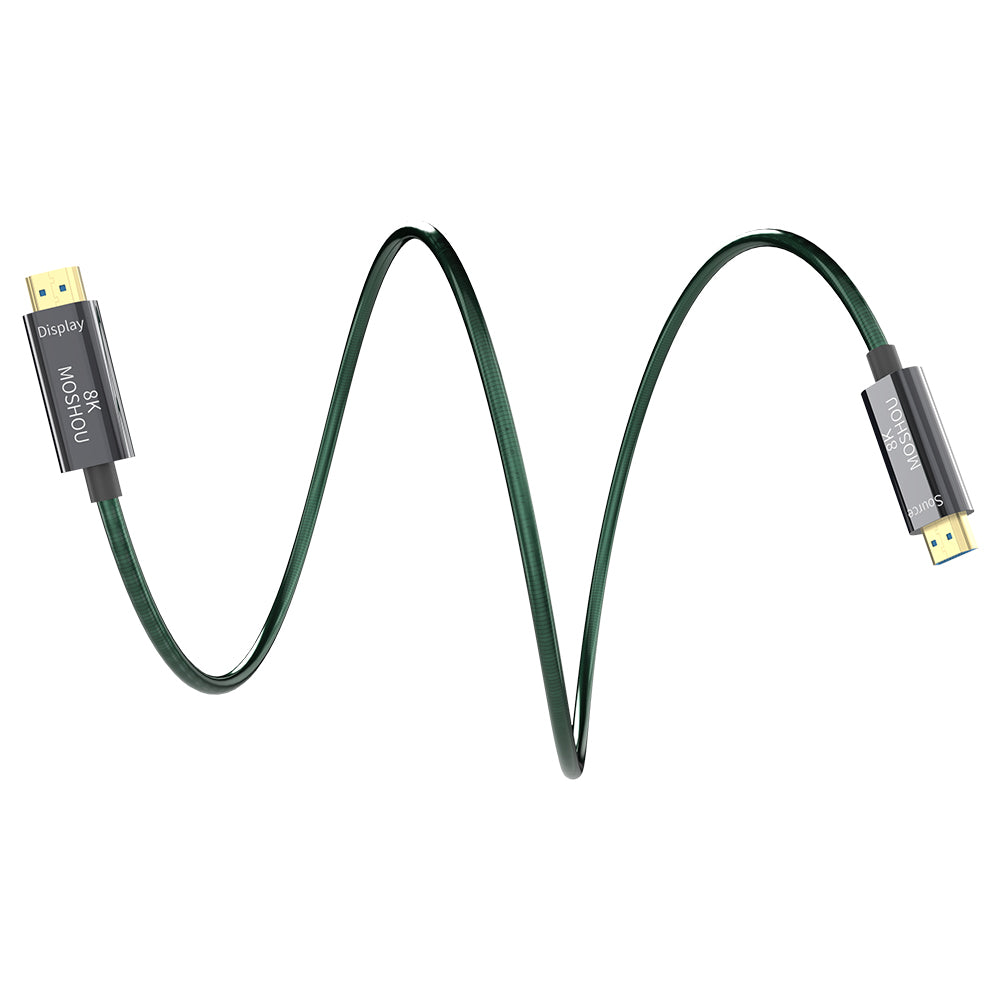

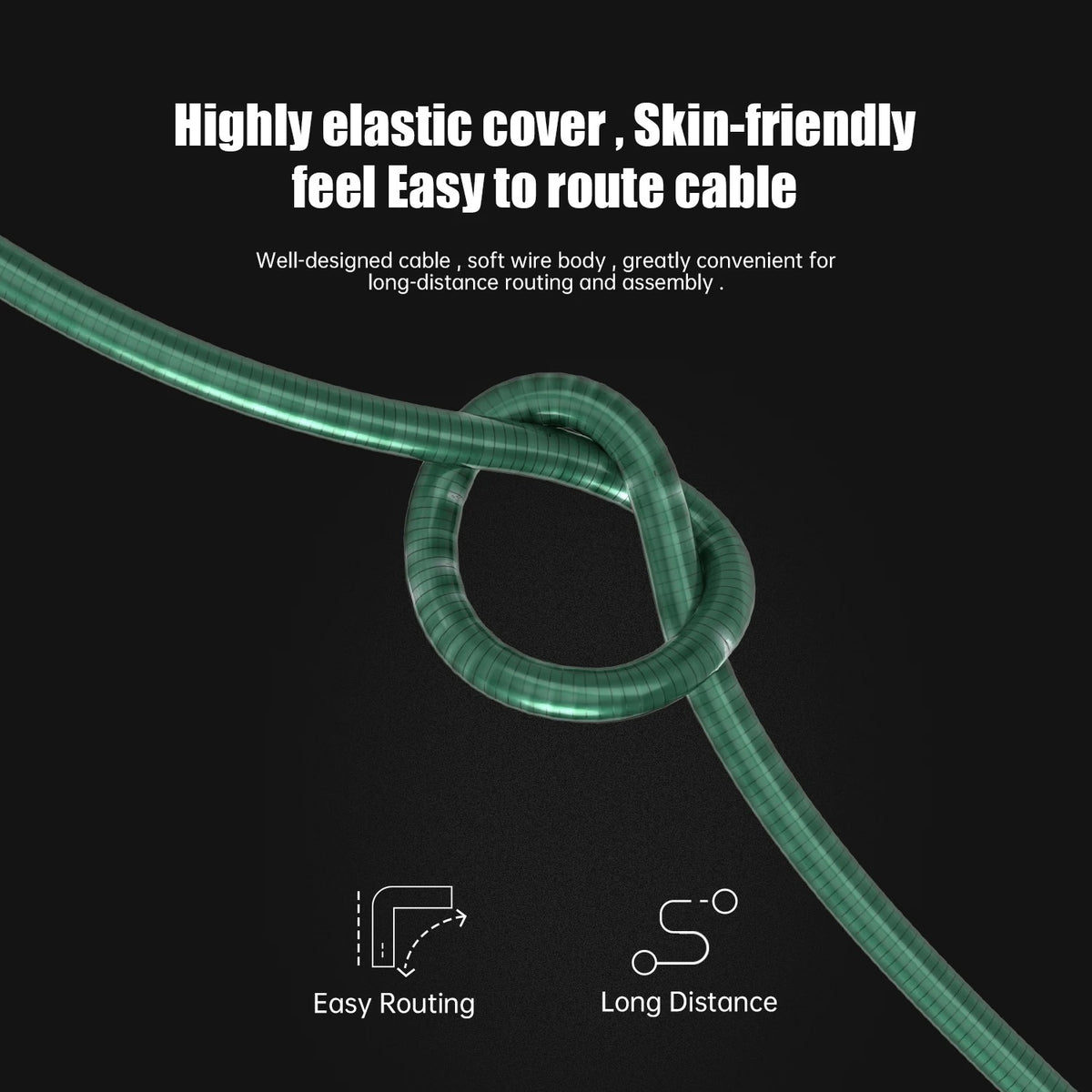

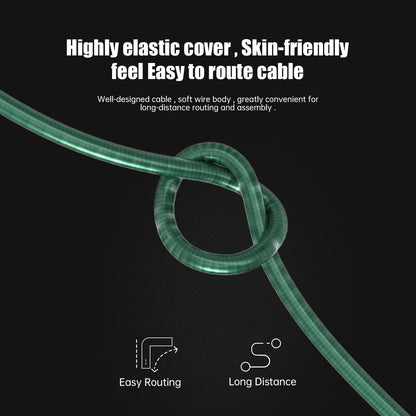

  • Flexible long-distance routing: the green protective jacket is designed to combine reinforcement with practical installation flexibility.

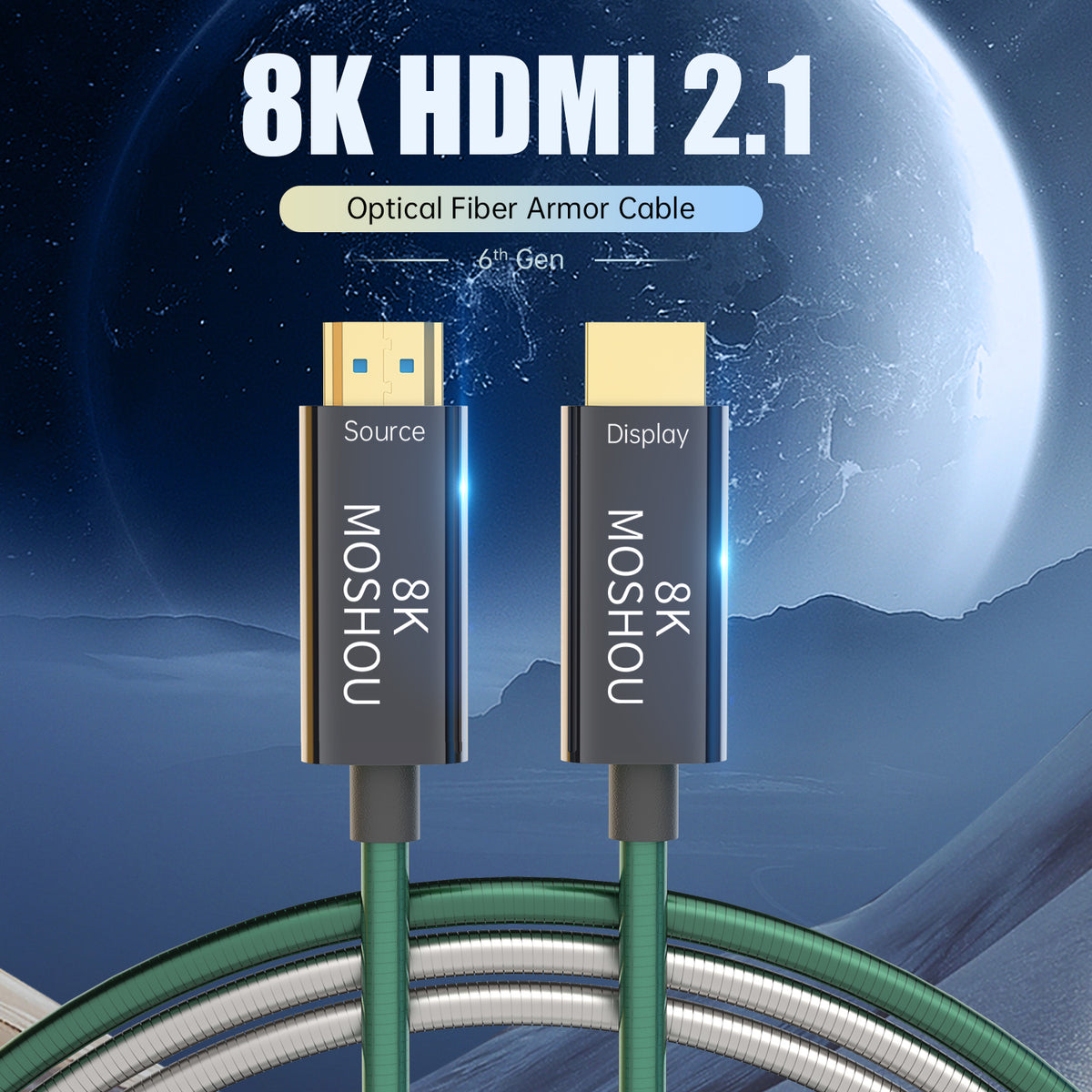

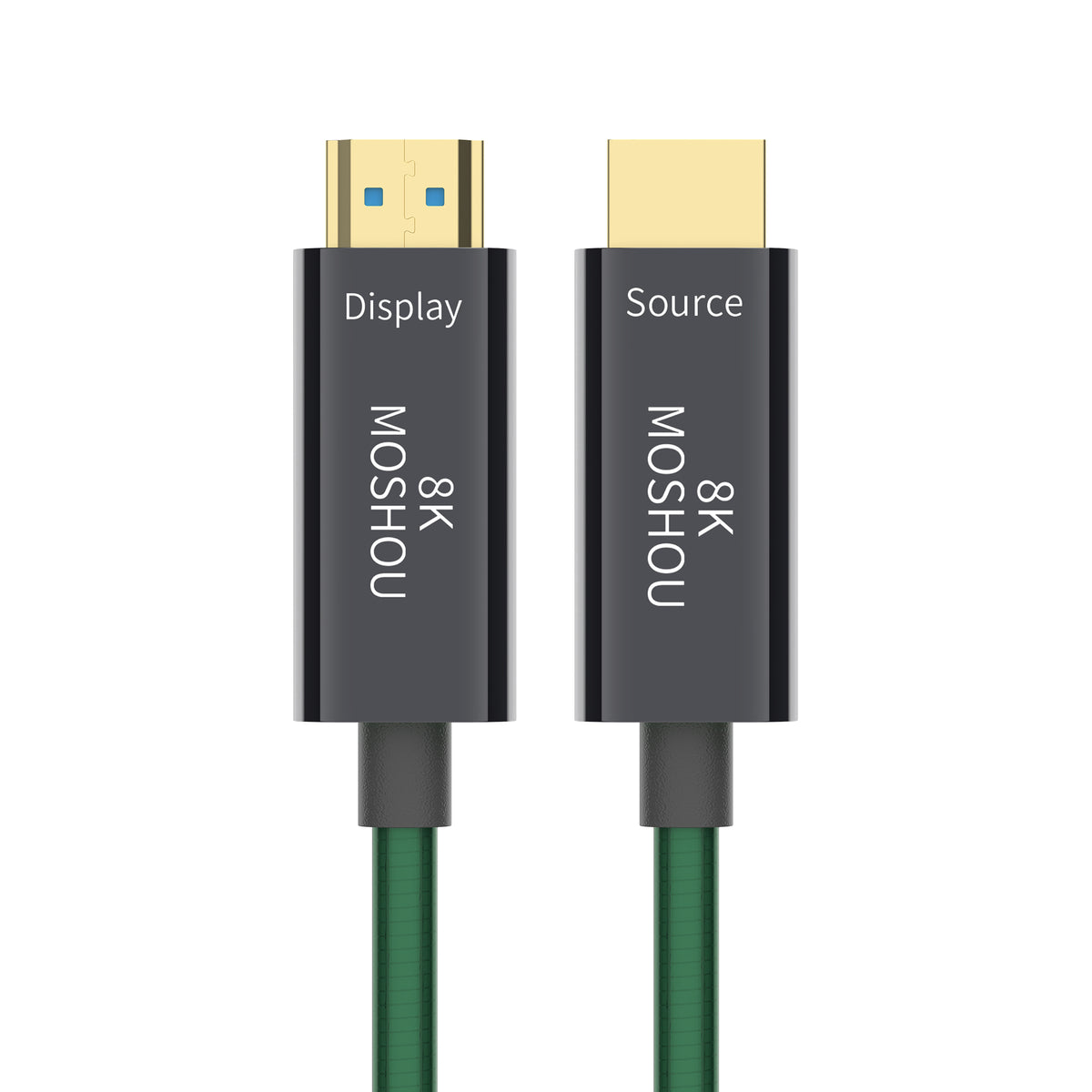

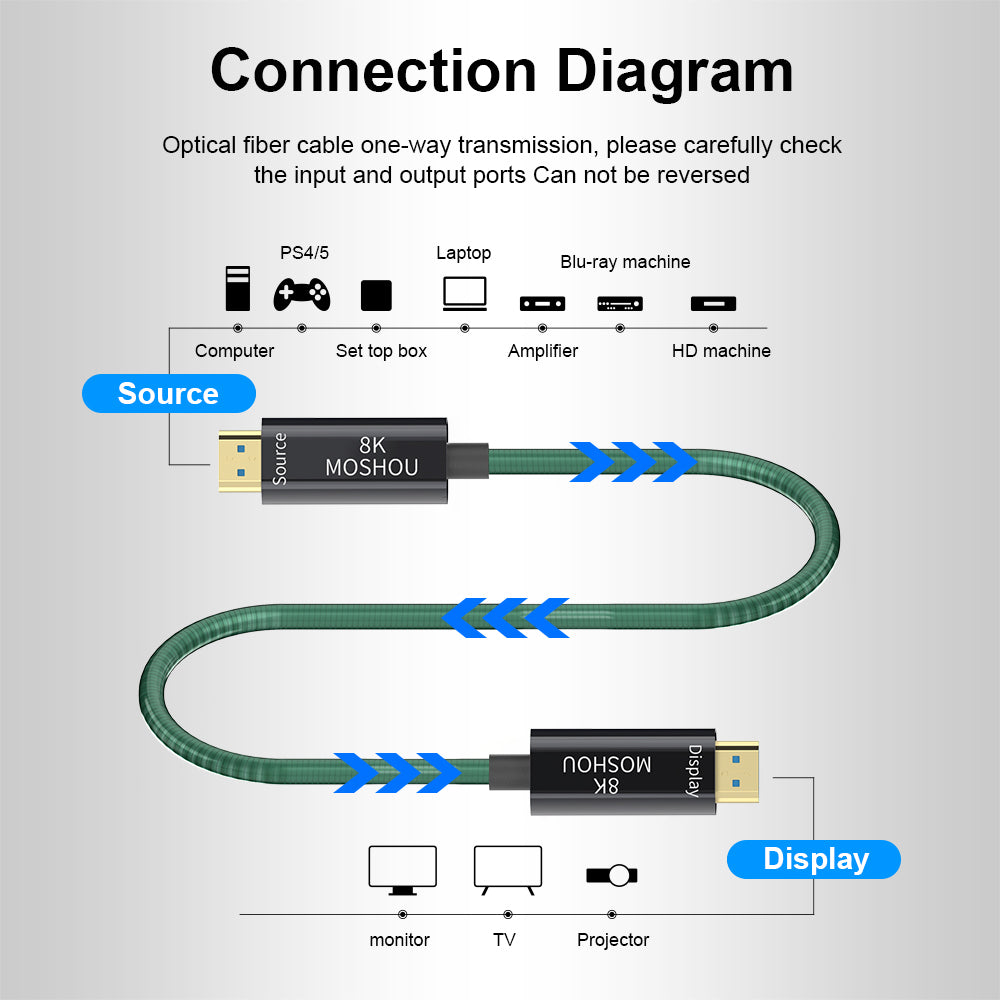

Directional Connection — Check Before Installation

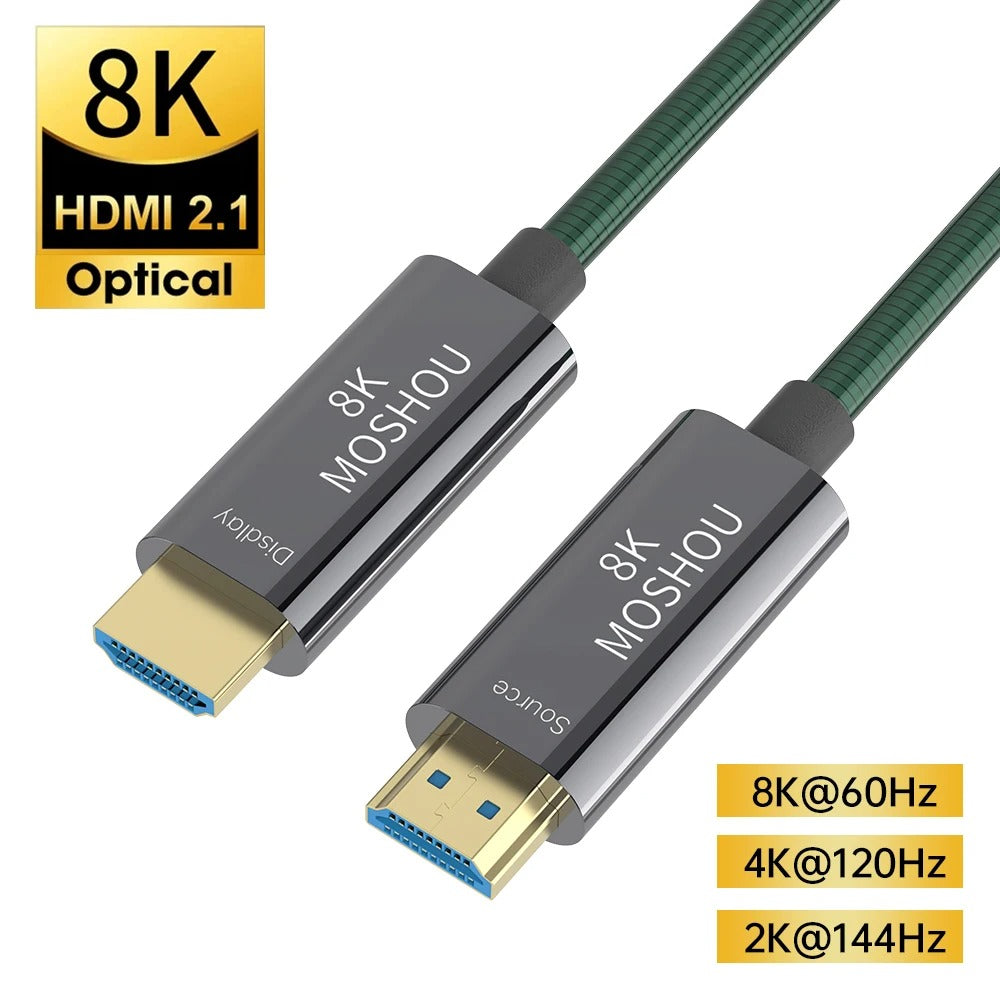

This is a one-way active optical HDMI cable. Connect the plug marked Source to the signal-output device and the plug marked Display to the TV, monitor or projector. Reversing the cable will prevent normal signal transmission.

  • Source: PC, graphics card, game console, Blu-ray player, set-top box or AV source.
  • Display: television, monitor, projector or compatible receiving display.

Compatibility

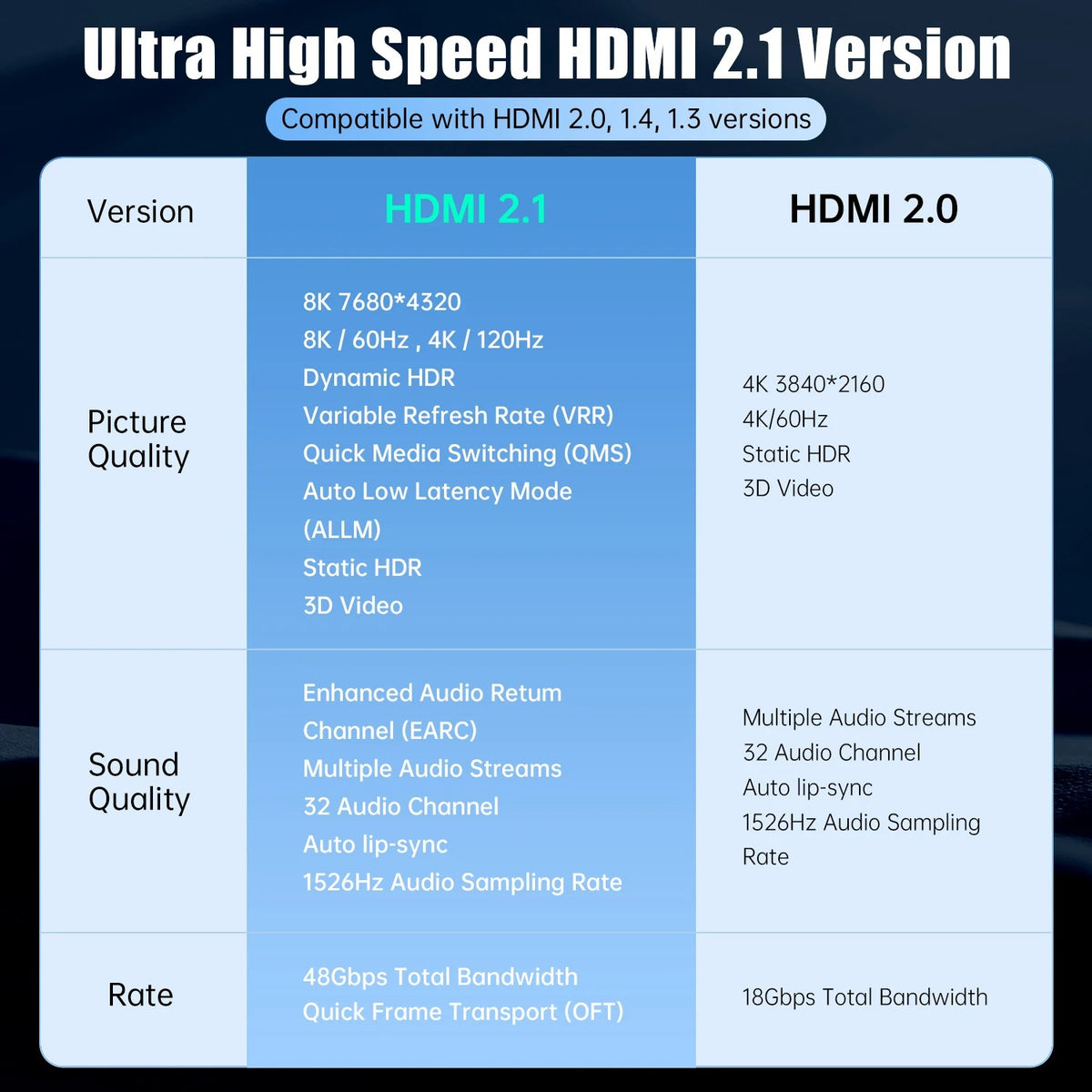

Works with: HDMI-equipped TVs, monitors, projectors, PCs, graphics cards, game consoles, AV receivers, Blu-ray players and set-top boxes. It is backward compatible with compatible HDMI 2.0, 1.4 and earlier equipment, limited to the capabilities of the connected system.

Performance depends on the complete system: advertised resolution, refresh rate, HDR, color depth, VRR, ALLM and audio features require support from the source, display, content and device settings.

Not for: DisplayPort, USB-C or Mini/Micro HDMI ports without an appropriate active adapter. This directional cable cannot be installed in reverse.

Product Specifications

  • Brand: MOSHOU
  • Internal model: 8K-06-B
  • Cable type: active optical HDMI cable (AOC)
  • HDMI version: HDMI 2.1 compatible
  • Maximum stated bandwidth: 48Gbps
  • Maximum stated video modes: 8K60, 4K120 and 2K144
  • Fiber type: OM4 optical fiber
  • Hybrid conductors: silver-plated single-crystal copper
  • Protective construction: armored multi-layer design
  • Signal direction: Source to Display

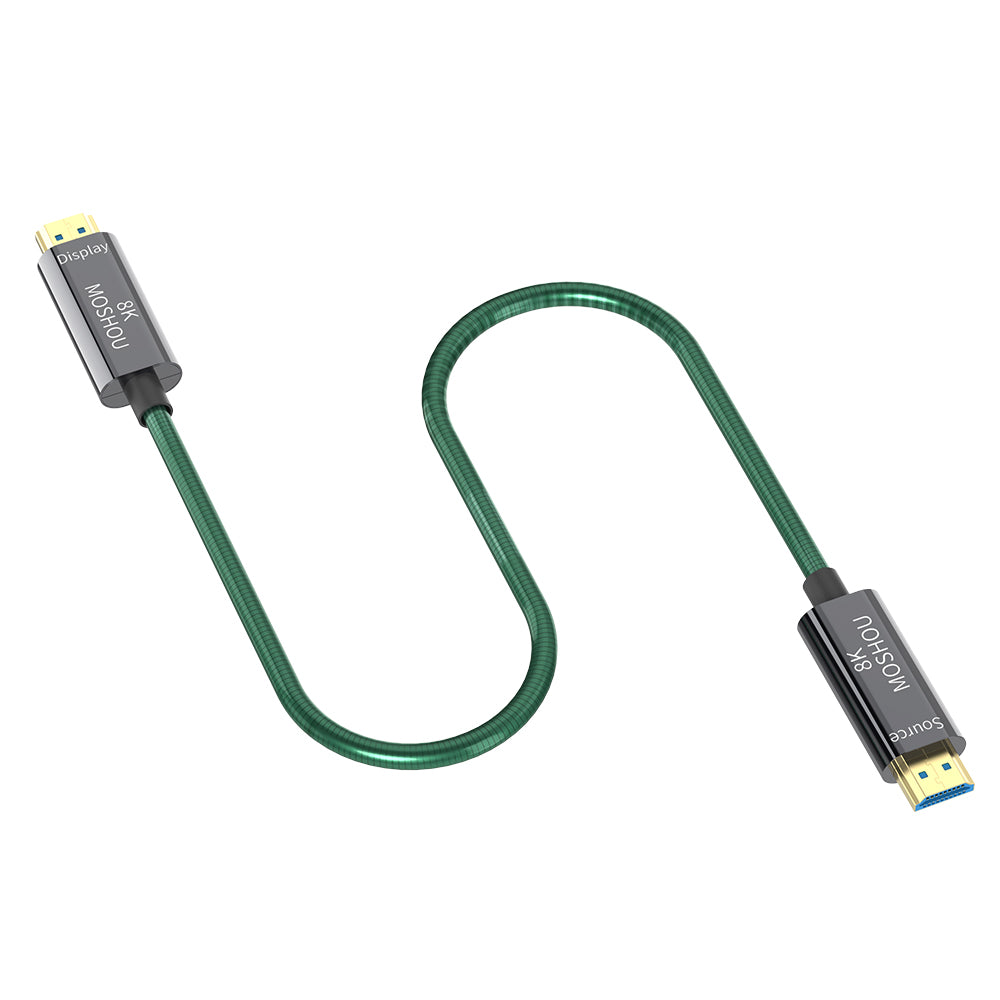

  • Color: green cable with gray connector housings
  • Available lengths: 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m, 12 m, 13 m, 15 m and 20 m

Installation Notes

  1. Confirm the required routing length and connector direction before installation.
  2. Connect the Source end to the output device.
  3. Connect the Display end to the receiving screen.
  4. Keep the cable away from crushing, excessive pulling and tight bends.
  5. Select a supported resolution and refresh rate in the source device settings.

Package Contents

  • 1 × MOSHOU directional armored optical HDMI cable

Frequently Asked Questions

Does it support 8K60 or 4K120?
Yes, when the source, display, content and settings all support the selected HDMI mode.

Can it be connected in either direction?
No. Connect Source to the output device and Display to the TV, monitor or projector.

Does it support PS5, Xbox or a gaming PC?
It works with compatible HDMI gaming equipment. Actual resolution, refresh rate, VRR and ALLM operation depend on the connected hardware and game.

Does it support Dolby Atmos?
It can carry compatible HDMI audio, including supported Dolby Atmos signals; decoding and playback depend on the connected devices and content.

Can it be used inside a wall?
Check local building and fire-code requirements before in-wall installation. No in-wall fire rating is claimed for this listing.

Is this a passive copper HDMI cable?
No. It is a directional active optical cable with hybrid optical and copper construction.
