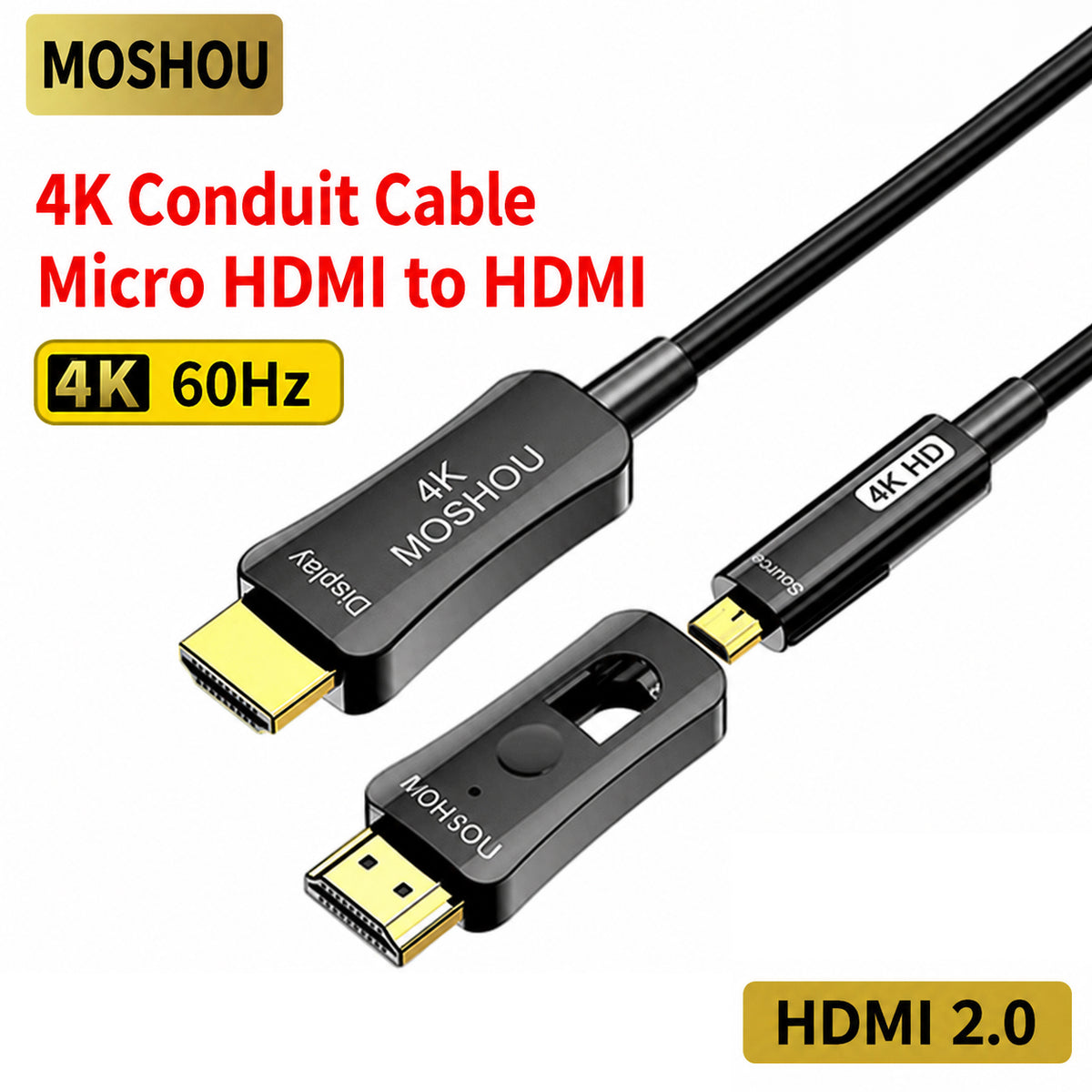

Route a reliable 4K HDMI connection through conduit, walls or ceilings without forcing a permanently attached full-size HDMI plug through the installation path. The MOSHOU HDMI 2.0 active optical cable uses detachable compact connector sections for cleaner concealed AV installations.
Choose the Pull-Through Design
-

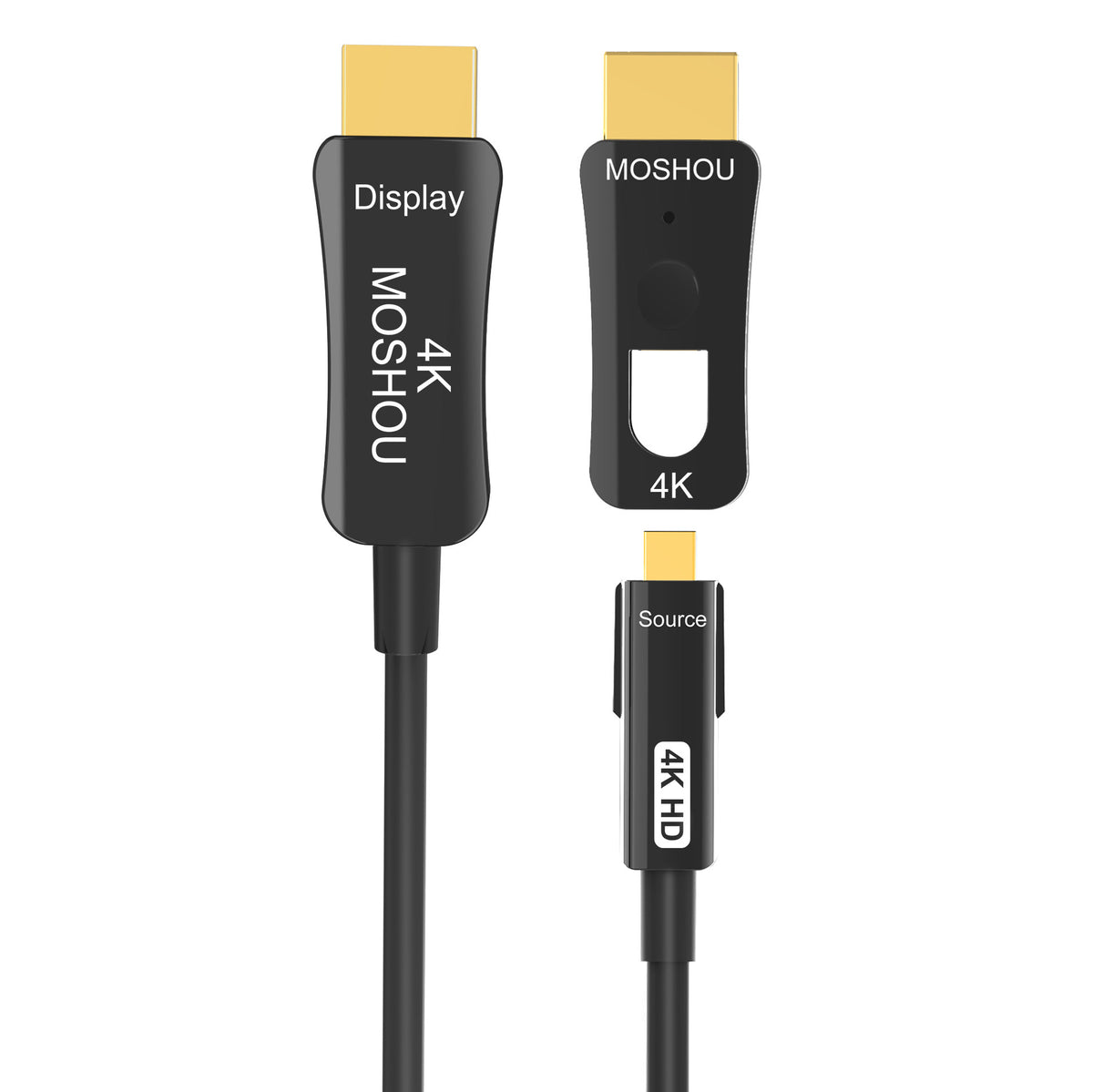

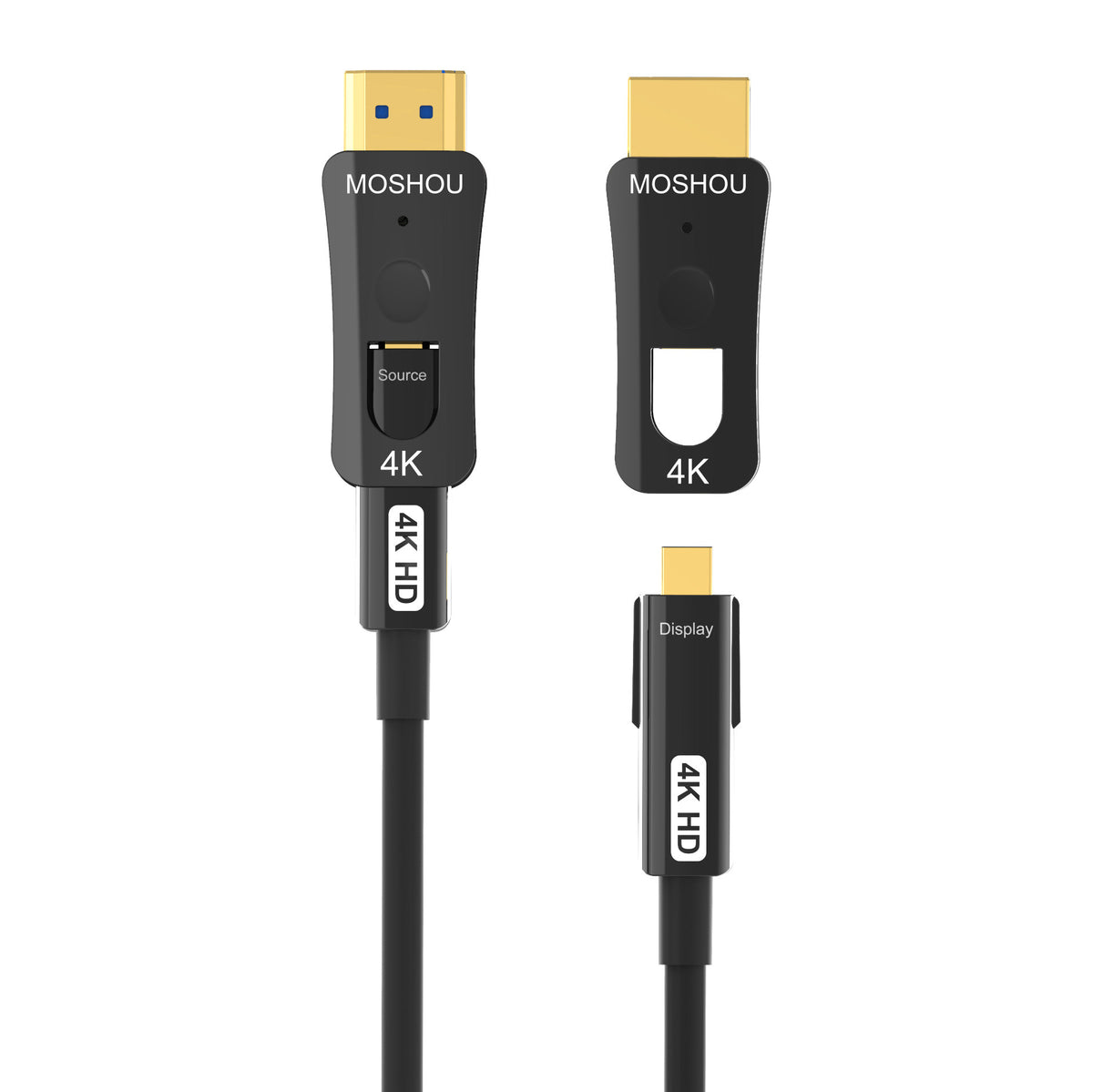

Single Detachable End: One end has a removable compact connector section, ideal when only one side of the cable must pass through narrow conduit. Available from 2m to 50m.
-
Dual Detachable Ends: Both ends have removable connector sections, giving installers more flexibility when either end must pass through conduit. Available in selected lengths from 2m to 50m.
Key Features
-
HDMI 2.0 performance: Supports up to 18Gbps bandwidth and 4K at 60Hz with compatible equipment.
-

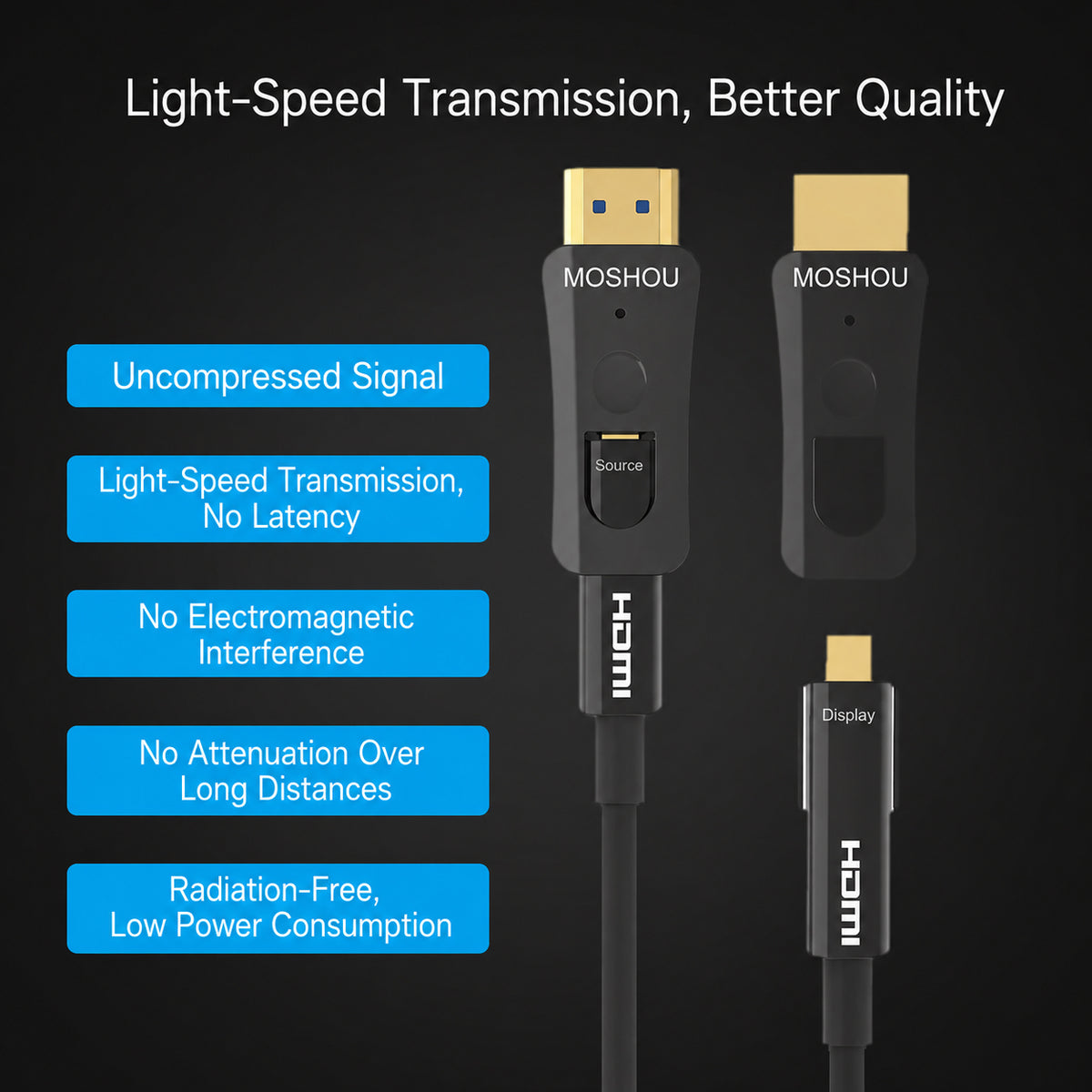

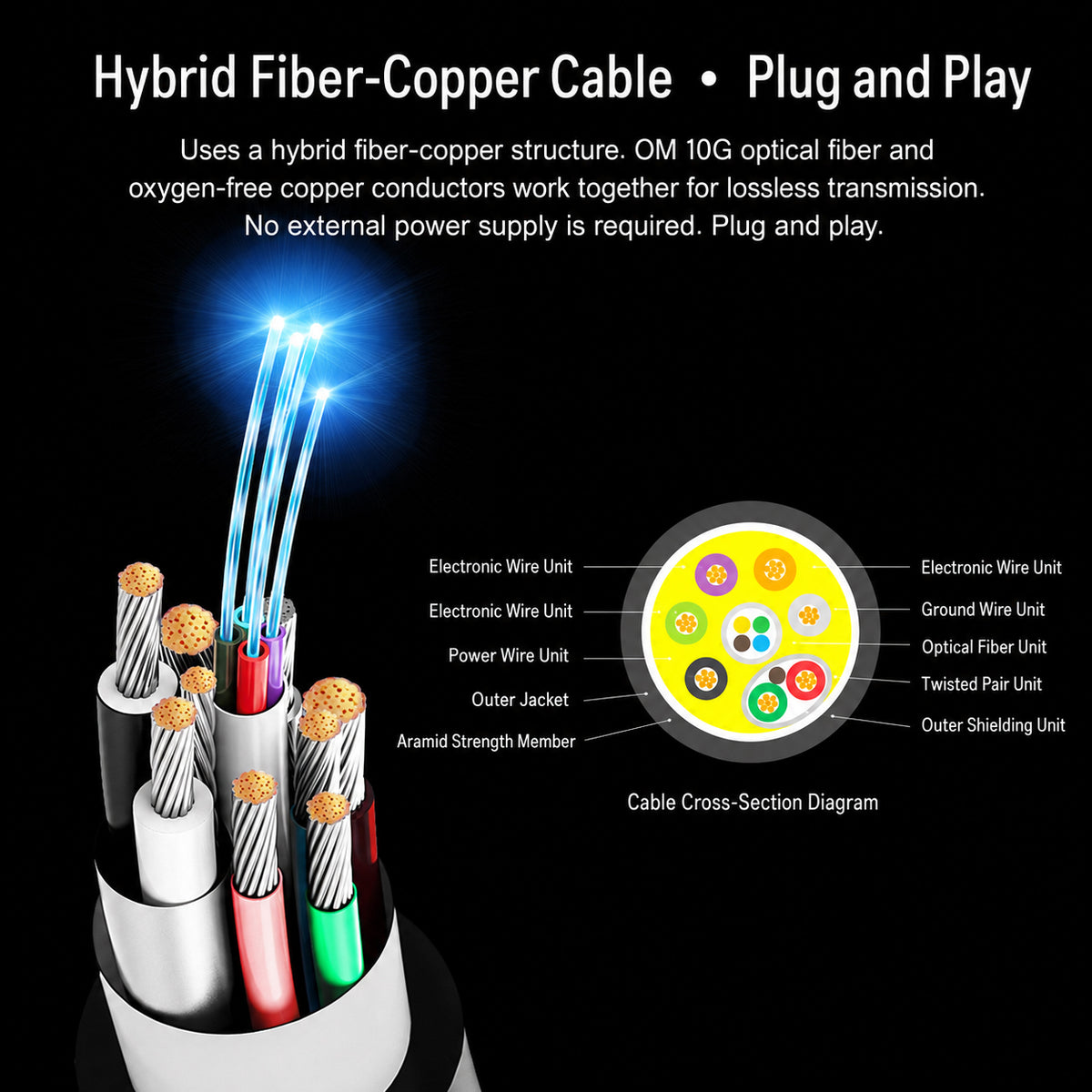

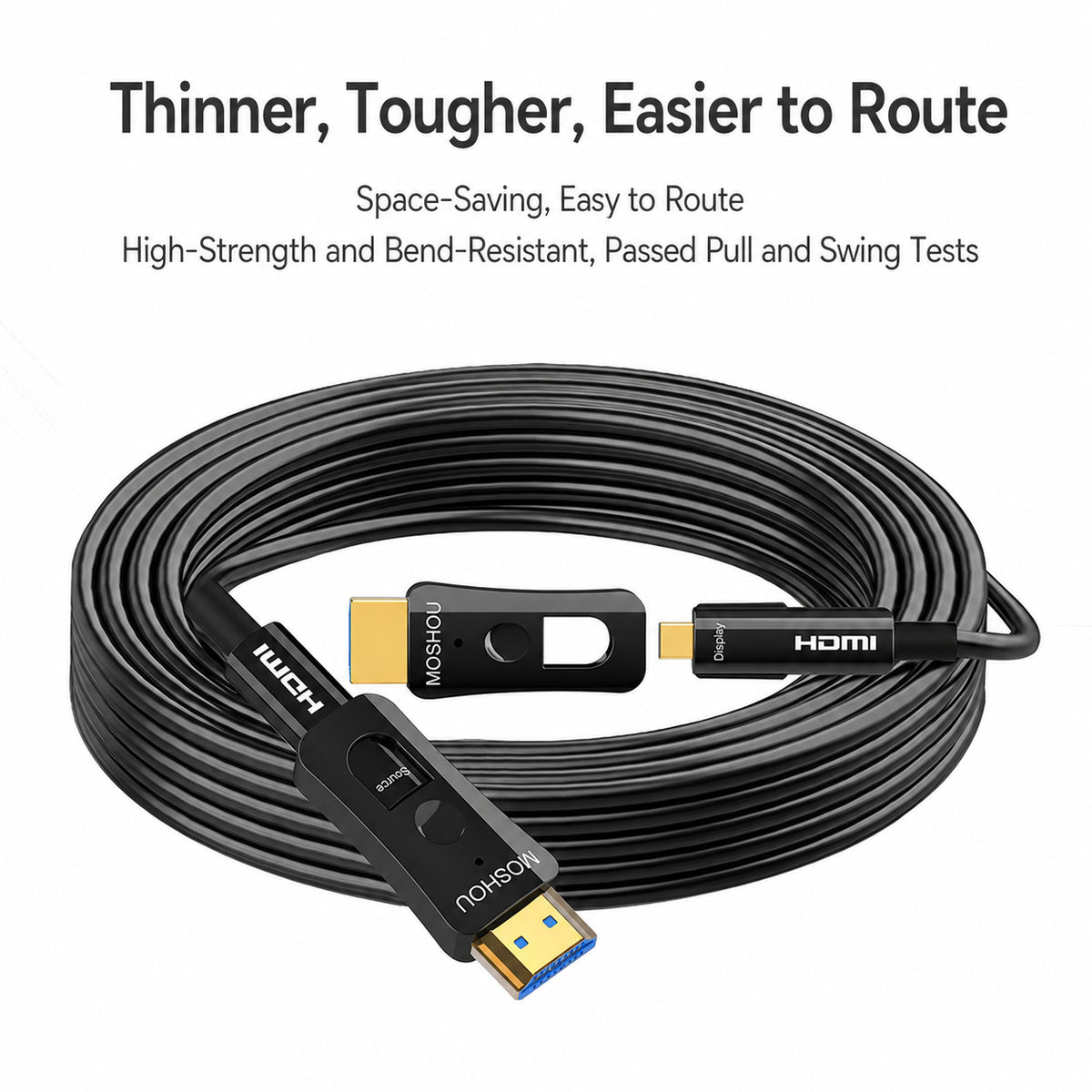

Active optical transmission: A hybrid fiber-and-copper design helps maintain stable video and audio over long installation distances while resisting electromagnetic interference.
-

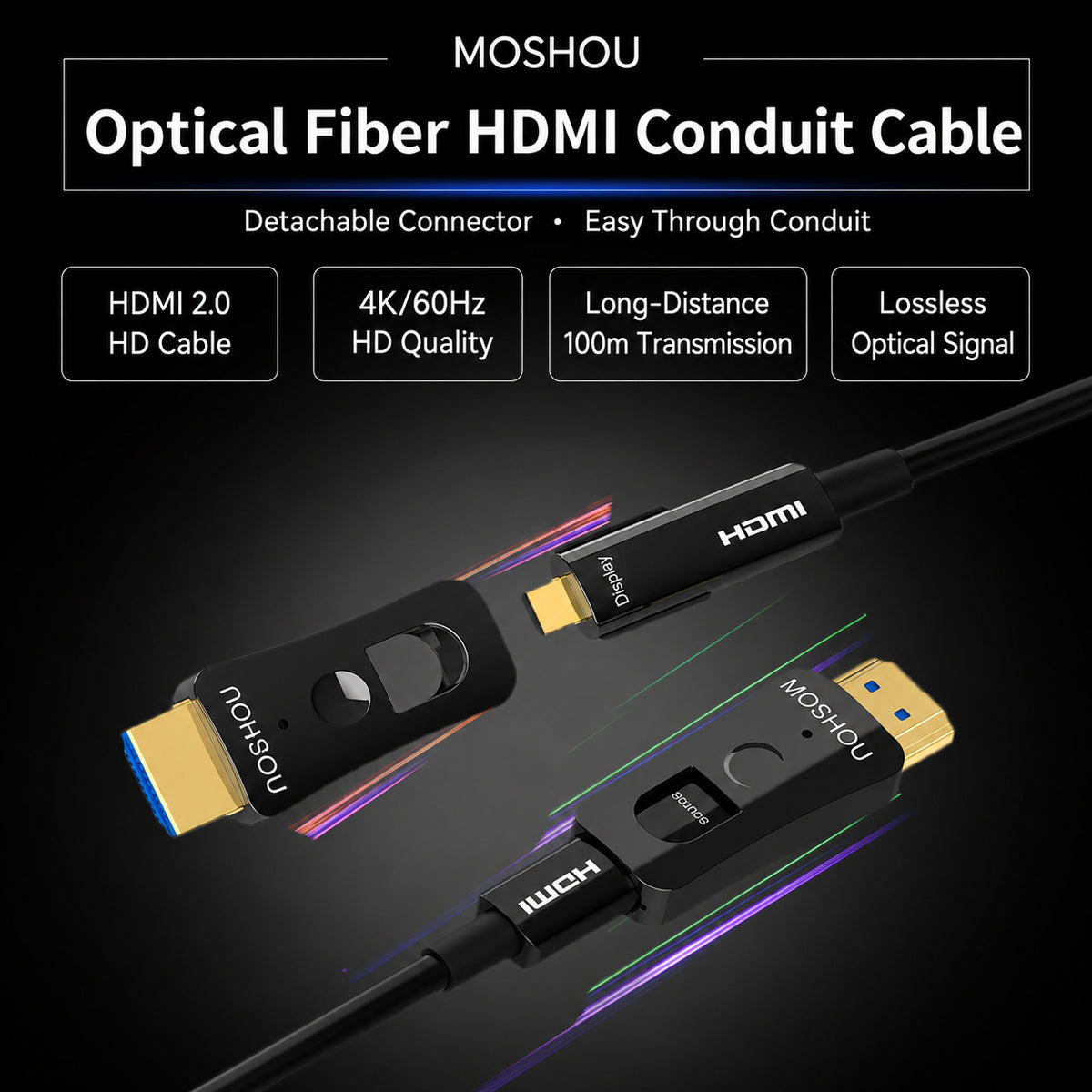

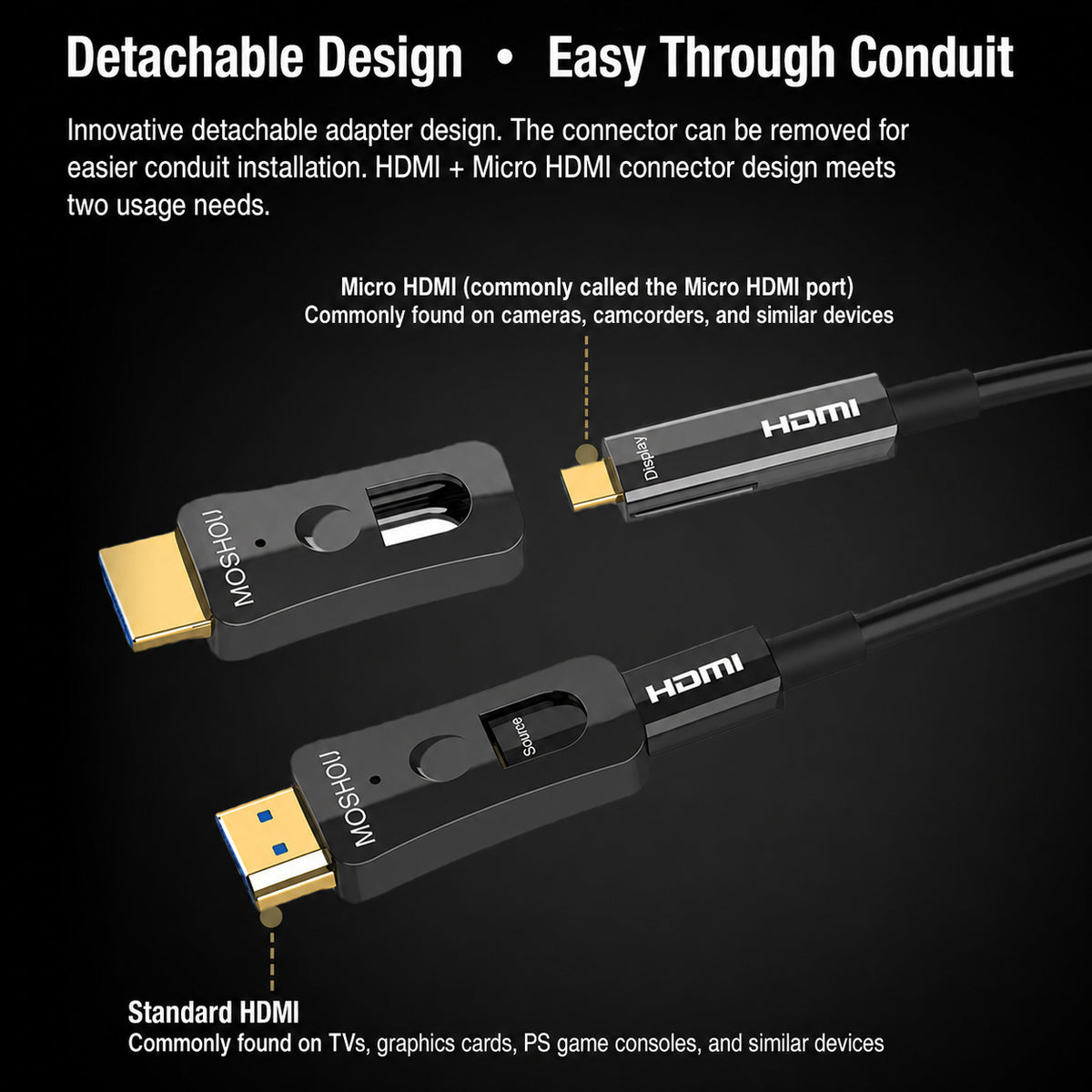

Detachable pull-through connectors: Compact Micro HDMI connector sections are easier to route through narrow conduit than fixed full-size HDMI plugs.
-
HDR and ARC support: Compatible with HDR video and Audio Return Channel functions when supported by every connected device and HDMI port.
-
Clear Source and Display markings: Direction labels reduce installation errors in permanent AV projects.
-
Gold-plated contacts and zinc-alloy housing: Durable connector construction for home theater, meeting-room, classroom and commercial display installations.
Connector and Conduit Guidance

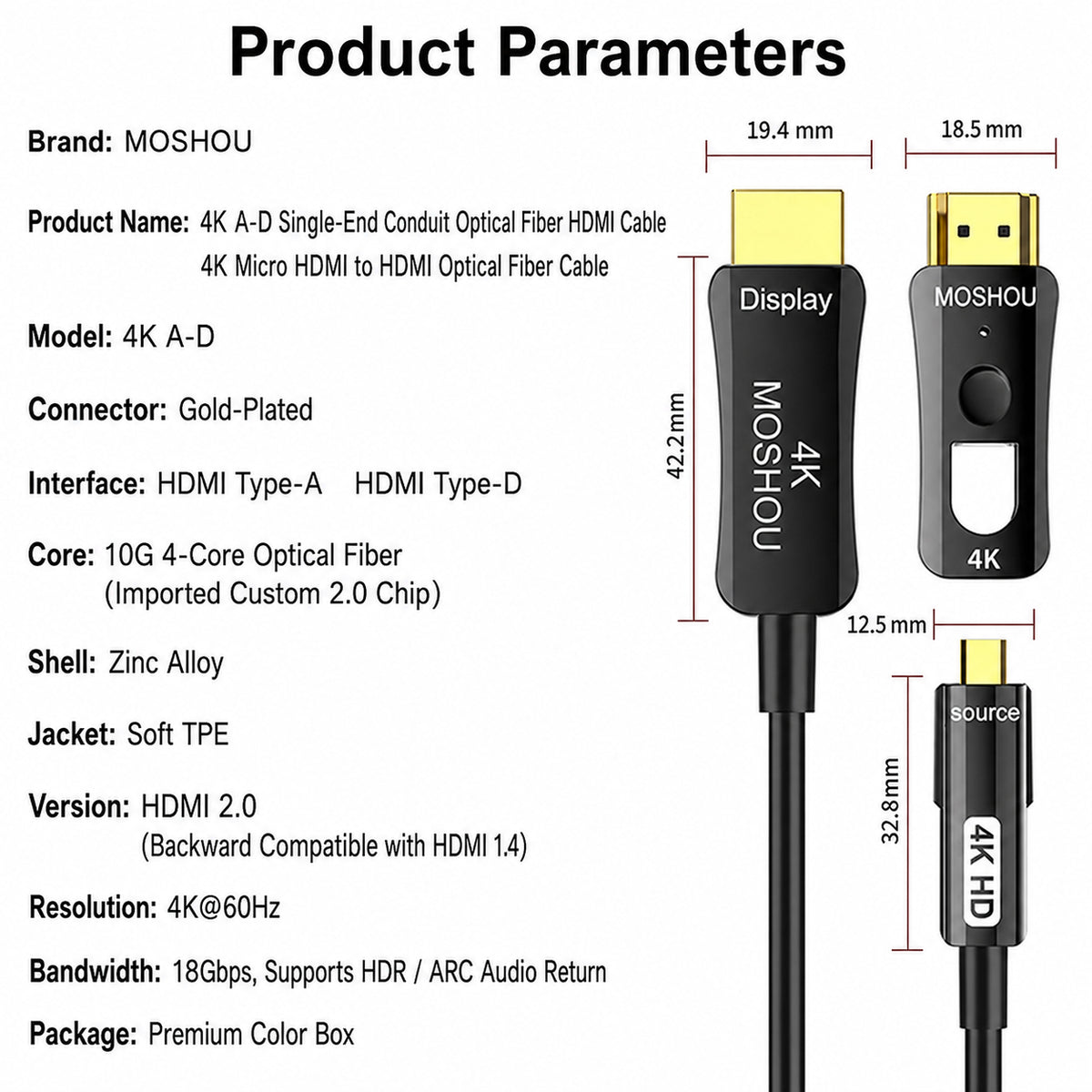

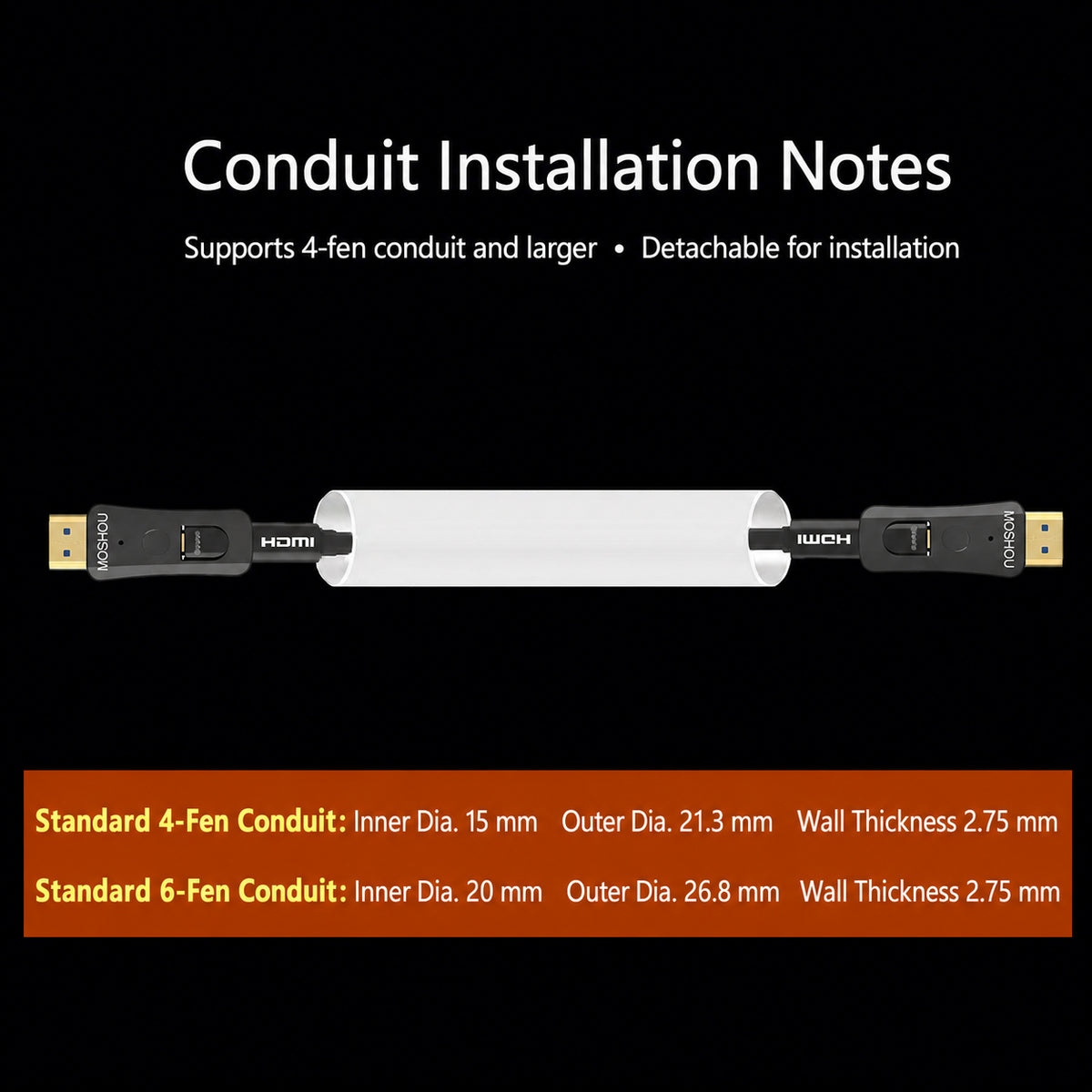

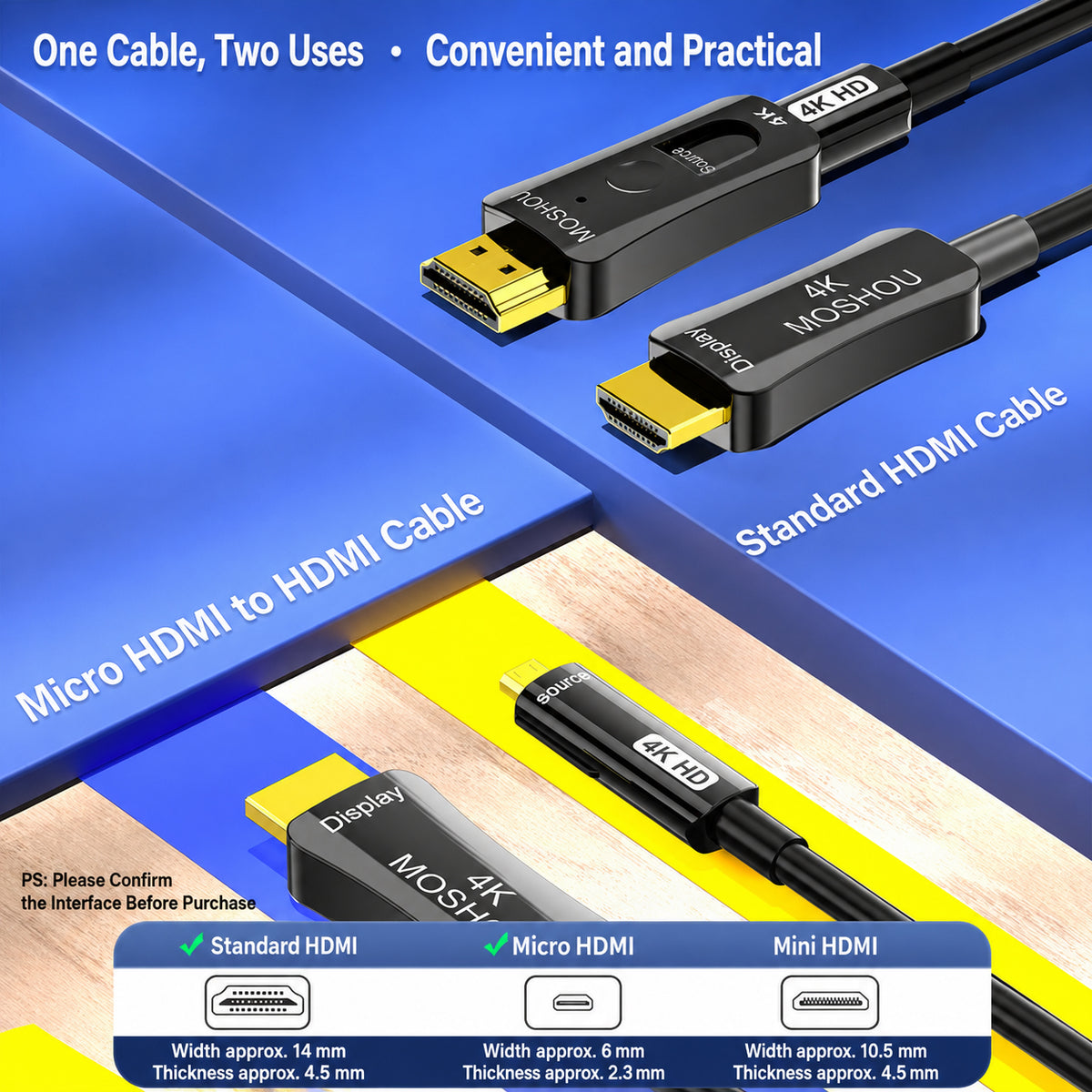

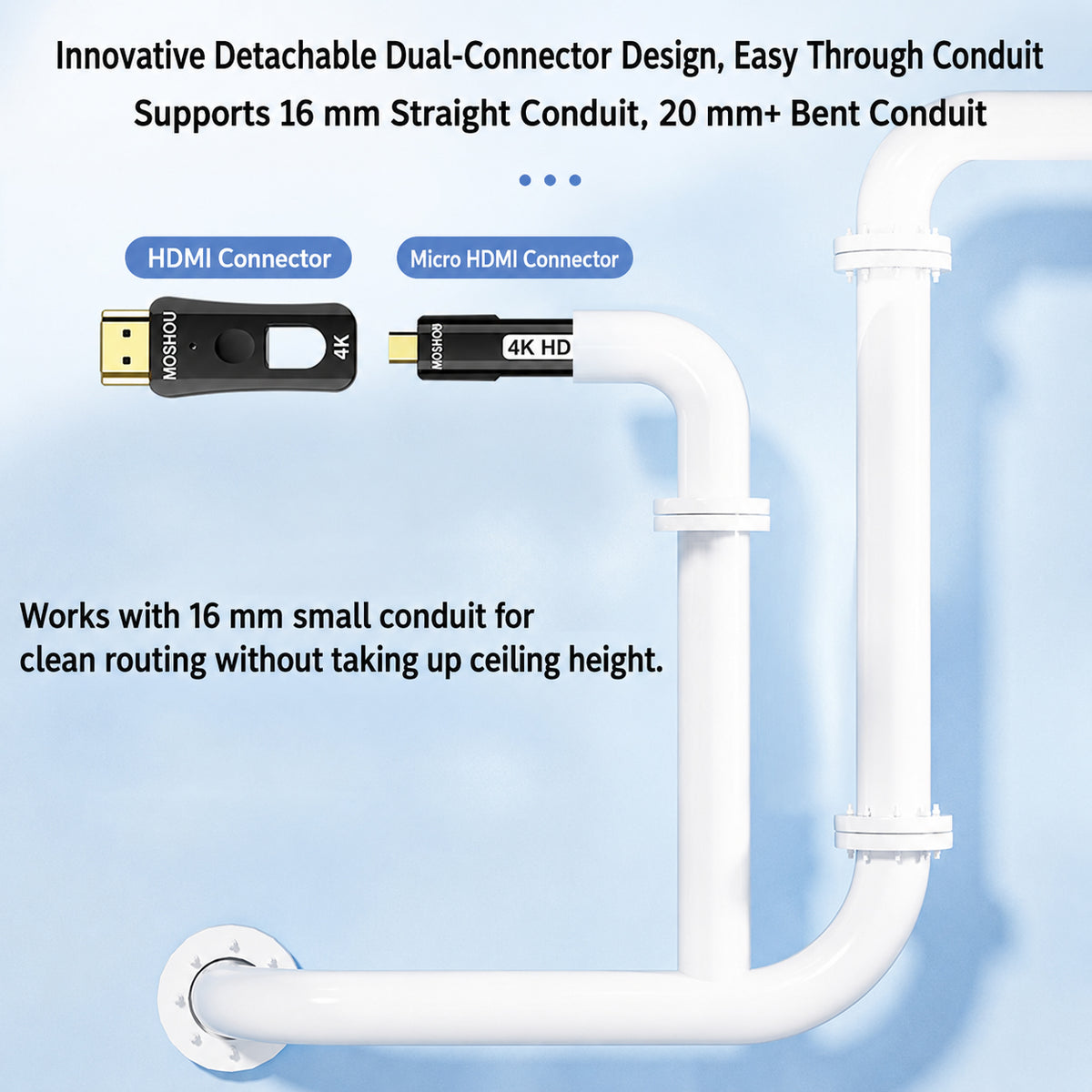

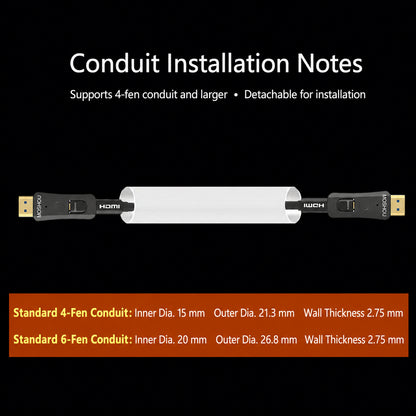

The compact Micro HDMI section is approximately 6mm wide and 2.3mm thick. The supplied installation guide recommends approximately 16mm or larger straight conduit and approximately 20mm or larger conduit where bends are present. Actual clearance depends on pipe bends, joints, pulling tools and connector protection, so measure the complete route before ordering.
Directional Installation

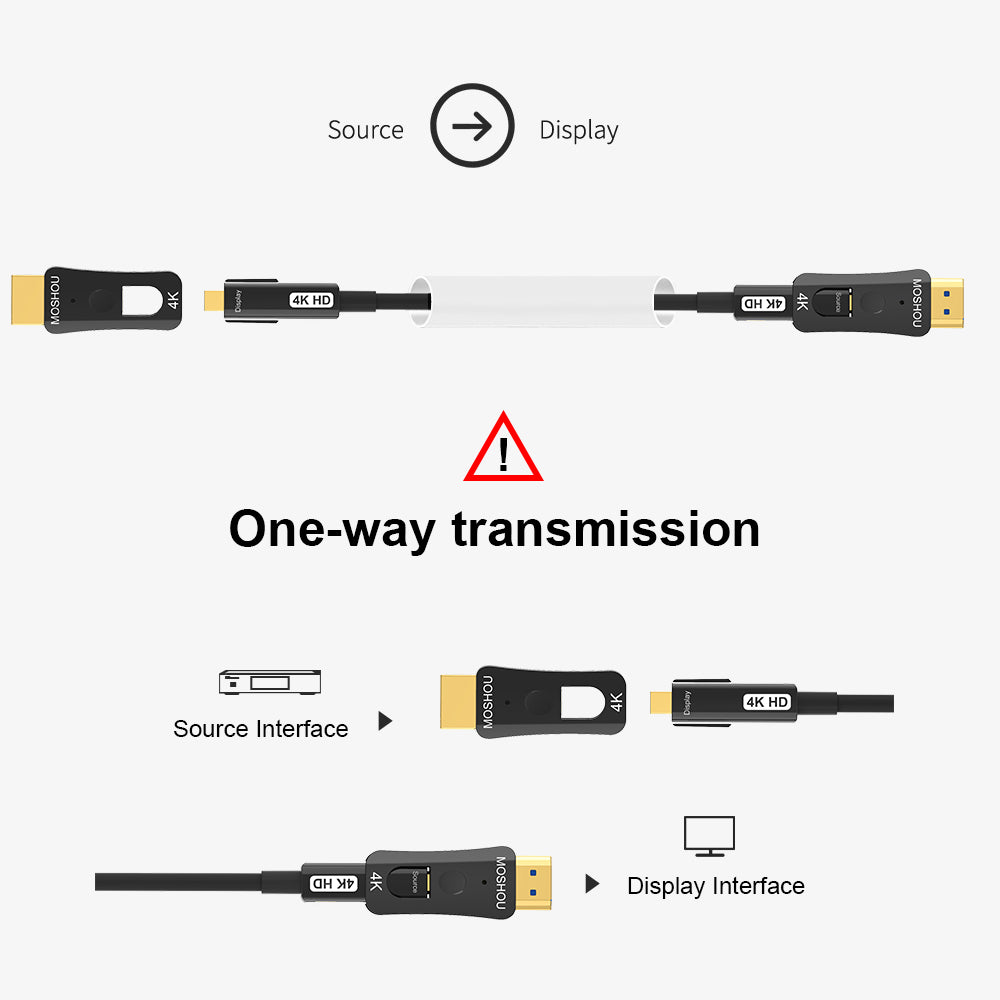

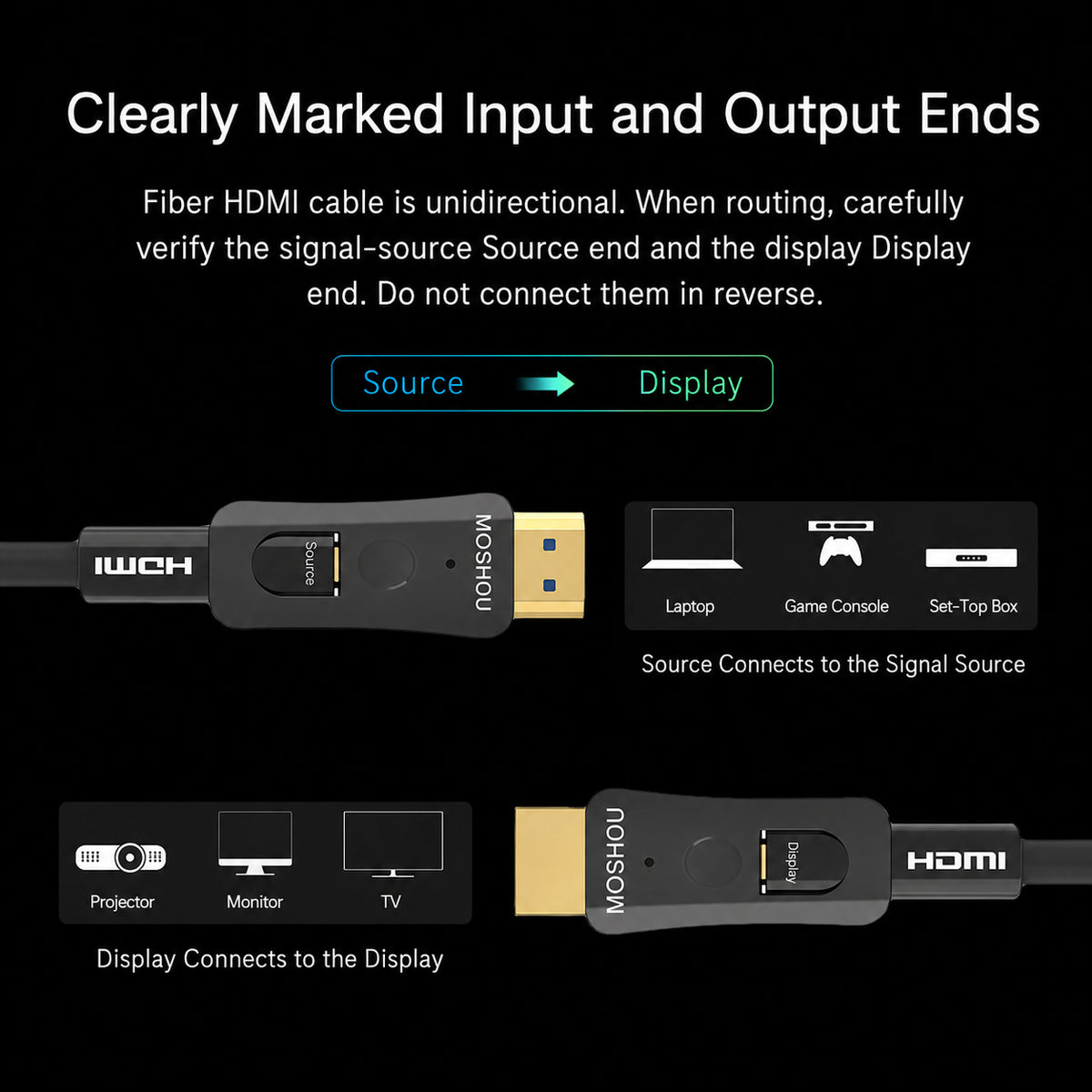

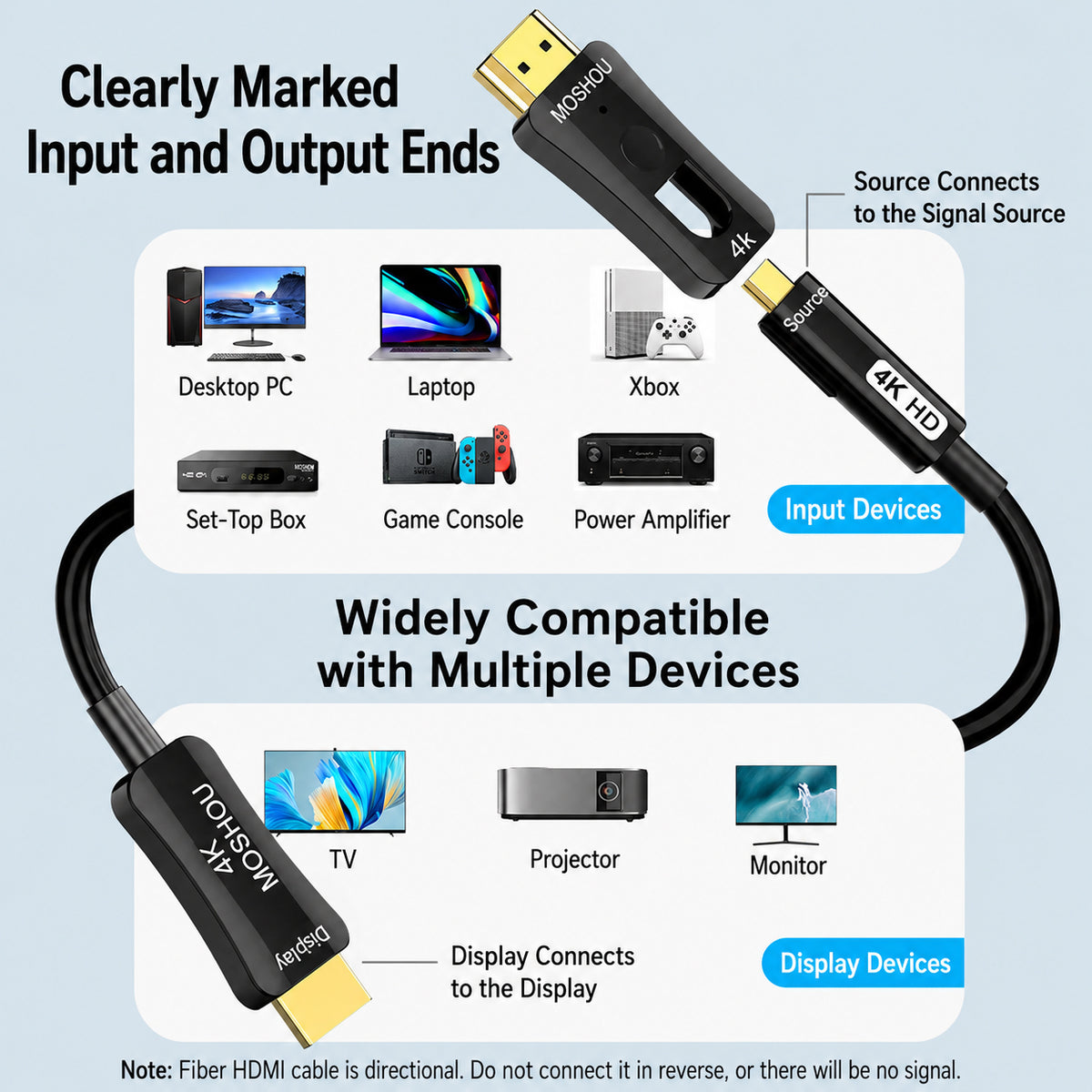

This is a one-way active optical HDMI cable. Connect the end marked Source to the signal output device and the end marked Display to the TV, monitor or projector. The cable will not transmit a signal when installed in reverse.
Compatibility
Source devices: desktop computers, laptops, game consoles, Blu-ray players, set-top boxes, cameras and AV receivers with a compatible HDMI output.
Display devices: HDMI televisions, monitors, projectors and compatible AV equipment.
Resolution, refresh rate, HDR, ARC, HDCP and audio support depend on every device and HDMI port in the signal chain. This listing does not claim third-party HDMI cable certification.
Before Permanent Installation
- Fully assemble and test the Source-to-Display connection before pulling the cable through conduit.
- Protect the compact connector during pulling and never pull directly on the contacts.
- Avoid sharp bends, crushing, twisting, splicing and excessive pulling force.
- Disconnect equipment power before removing or reconnecting detachable sections.
Package Contents
1 × MOSHOU 4K HDMI 2.0 fiber optic pull-through cable in the selected connector design and length.
