Ultra-slim 2.4mm coaxial HDMI cable for tight spaces. This MOSHOU HDMI 2.1 cable uses a flexible coaxial construction with an outer diameter of only approximately 2.4mm. Its exceptionally thin cable body is designed for cameras, monitors, wall-mounted TVs and other installations where a conventional HDMI cable is difficult to route.
Choose the Correct Connector Direction
-

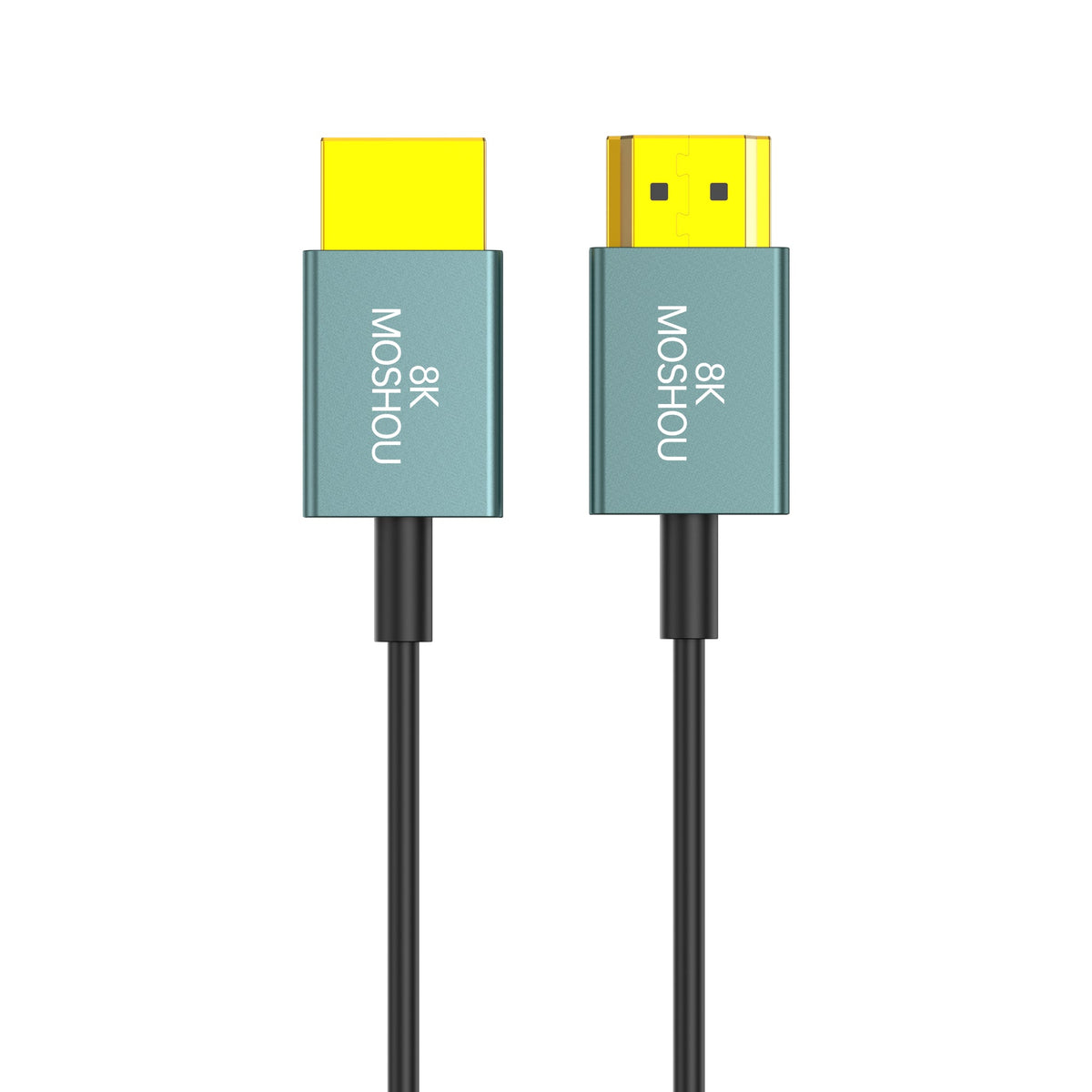

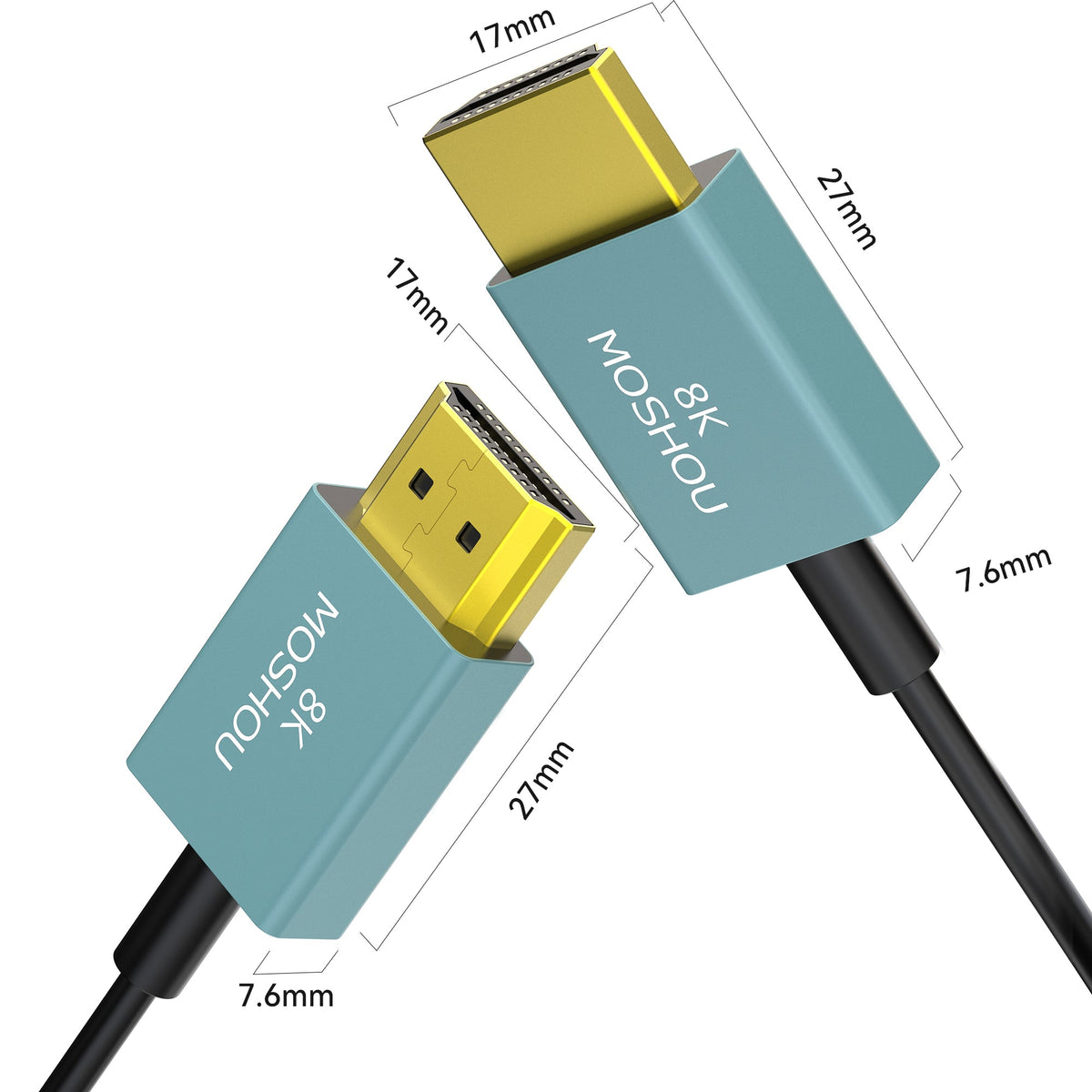

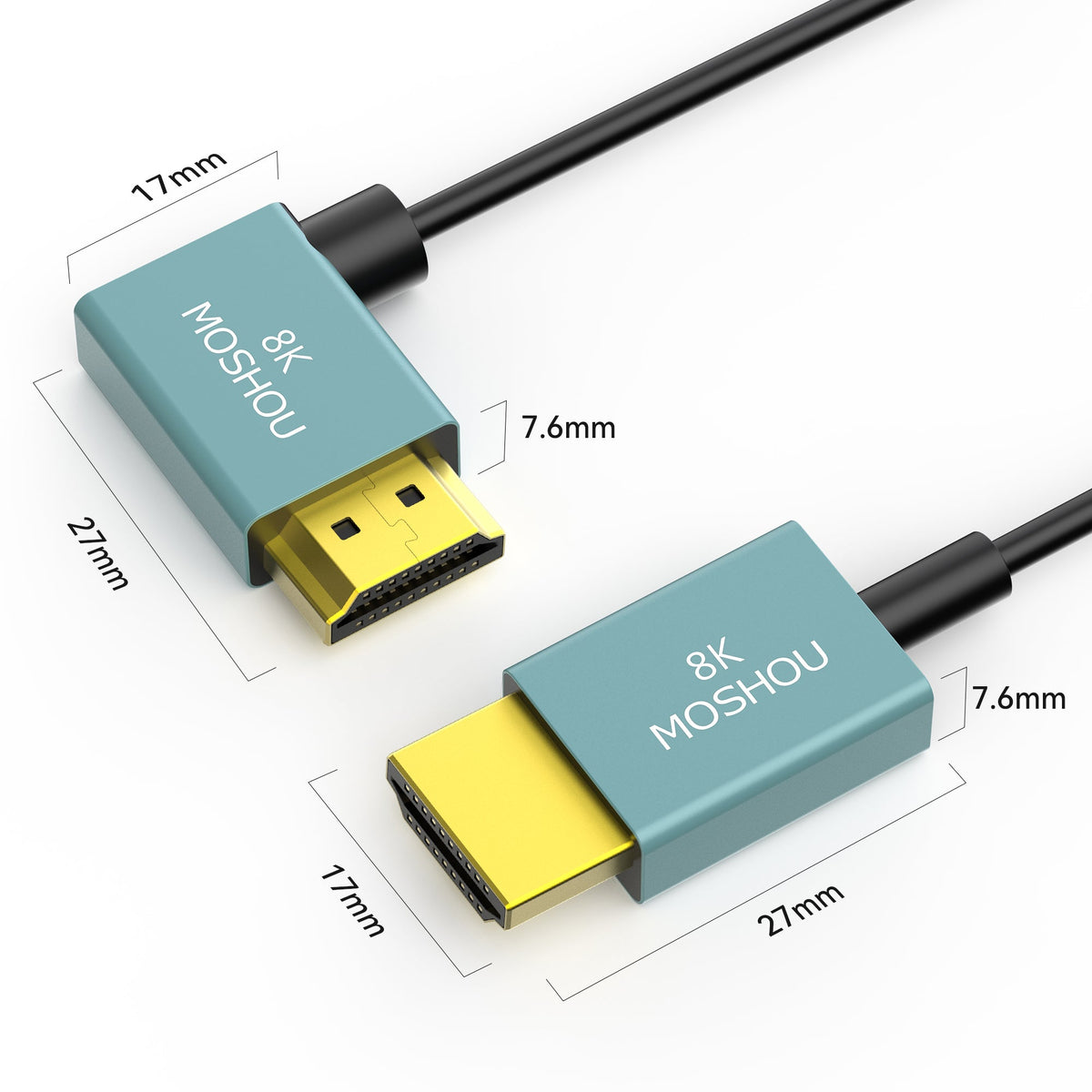

Straight: standard straight HDMI connector for general installations.
-

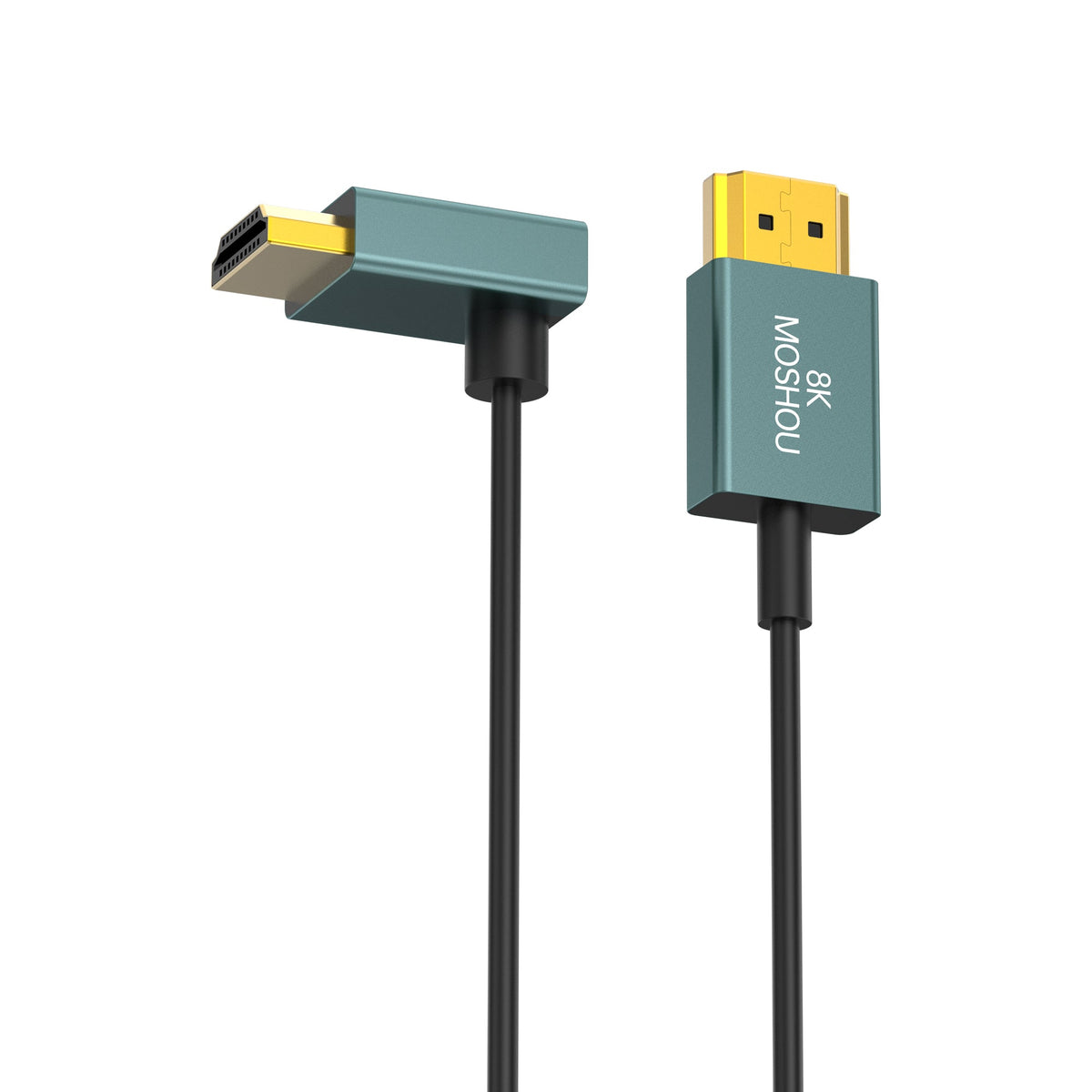

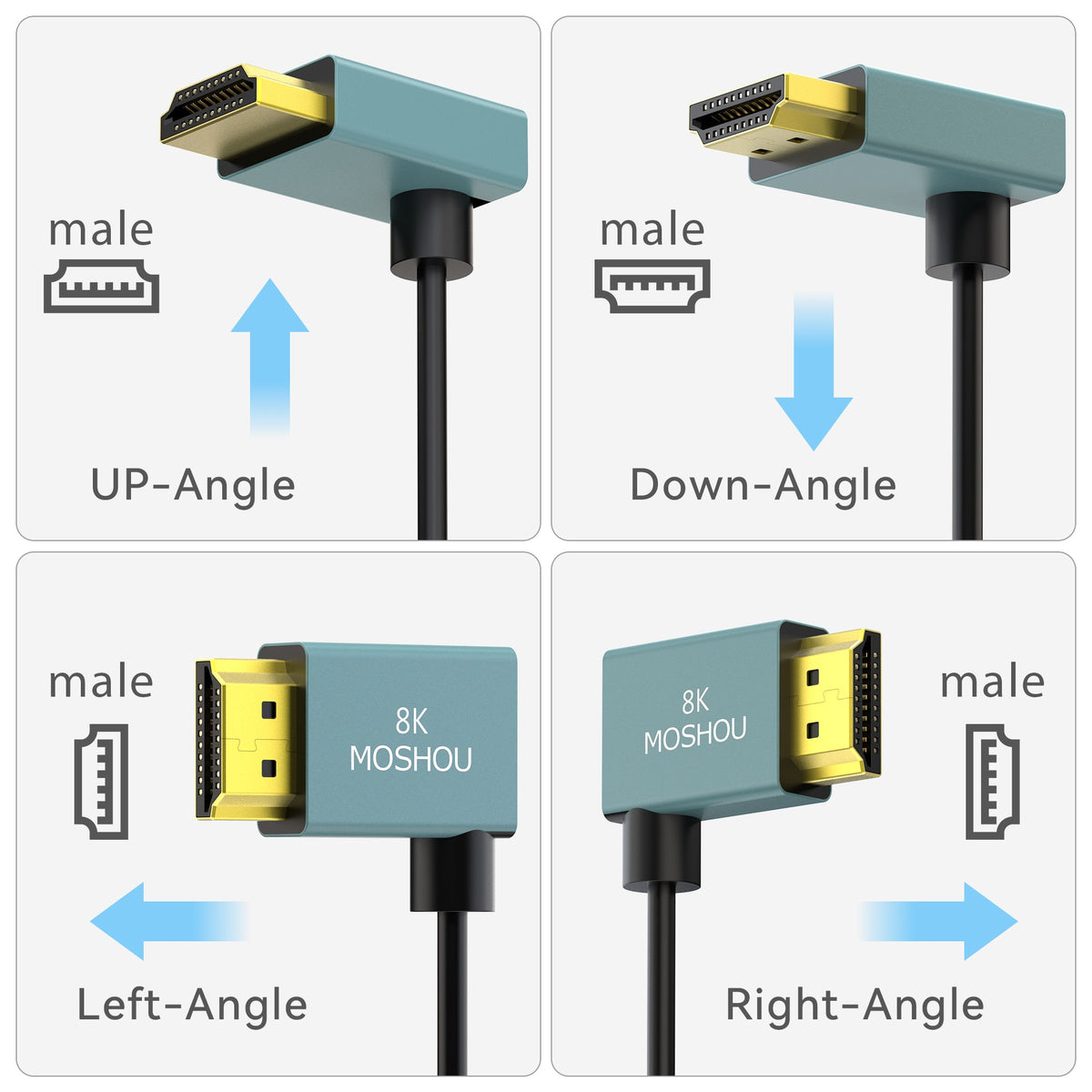

90° Up-Angle: the cable exits upward from the angled connector in the orientation shown in the product gallery.
-
90° Down-Angle: the cable exits downward from the angled connector in the orientation shown in the product gallery.
-

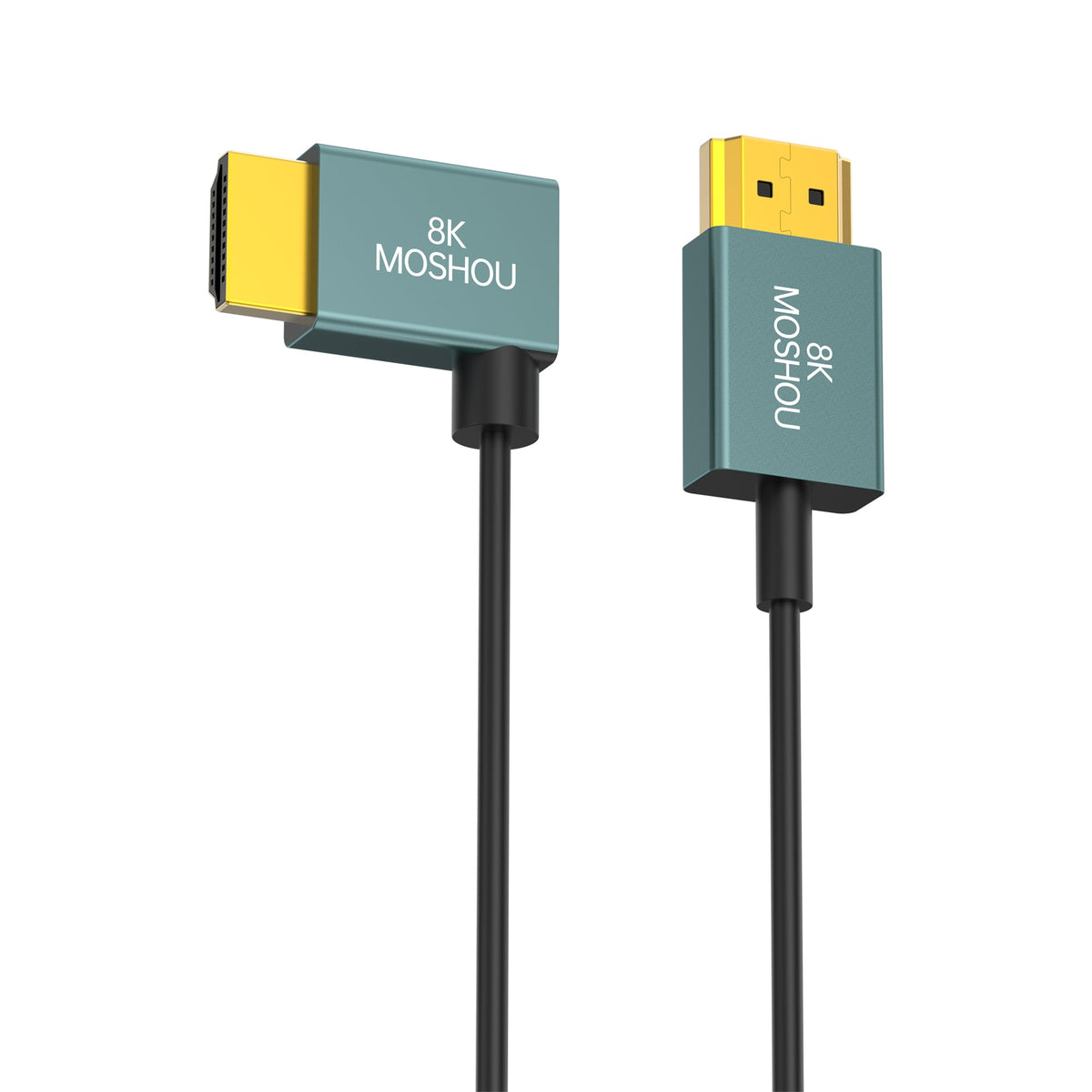

90° Left-Angle: the cable exits to the left from the angled connector in the orientation shown in the product gallery.
-

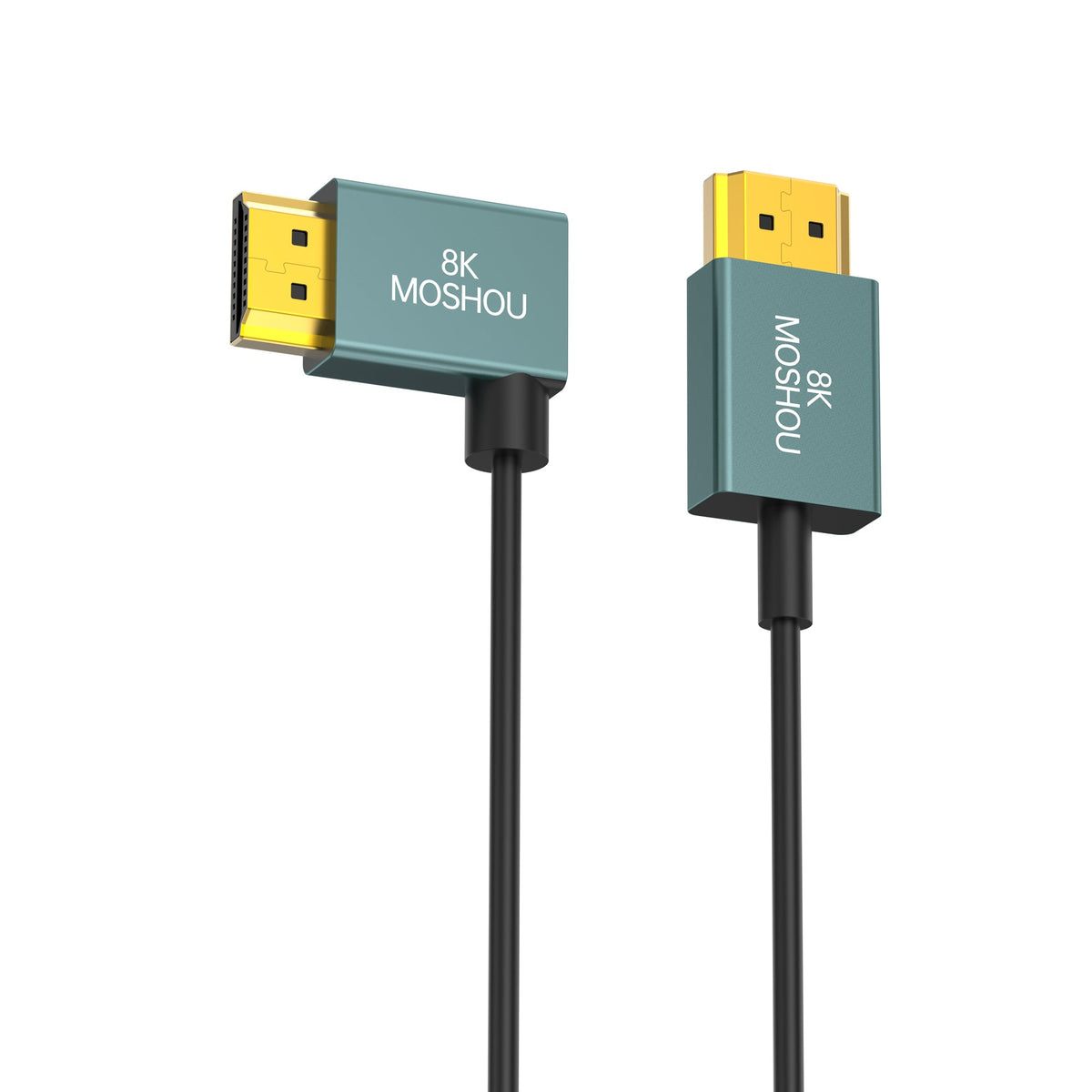

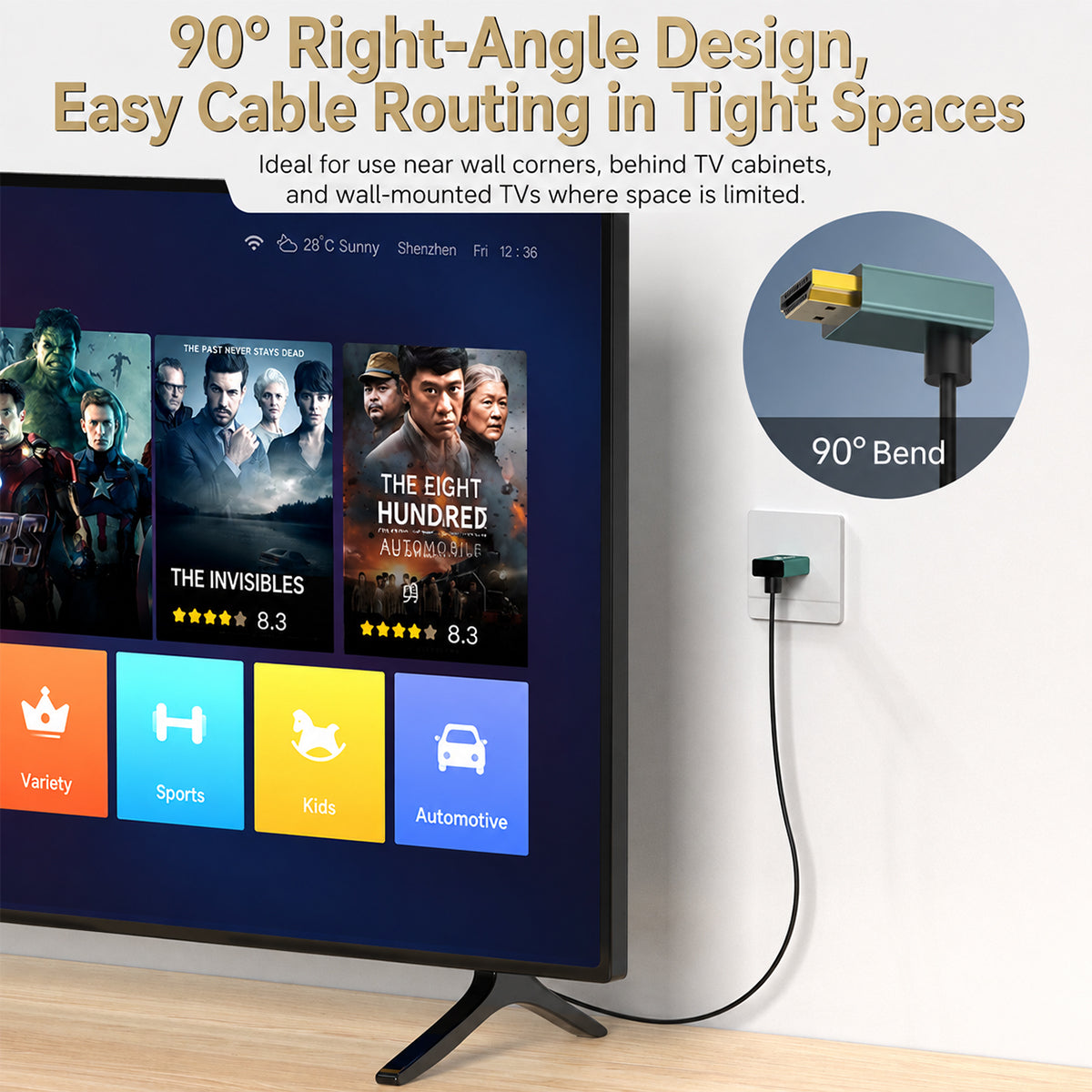

90° Right-Angle: the cable exits to the right from the angled connector in the orientation shown in the product gallery.
Important: HDMI ports can be installed in different orientations. “Up,” “Down,” “Left” and “Right” refer to the plug orientation illustrated in the gallery, not necessarily the direction seen from the front of your TV, monitor or camera. Compare your port with the direction guide before ordering.
Key Features
-

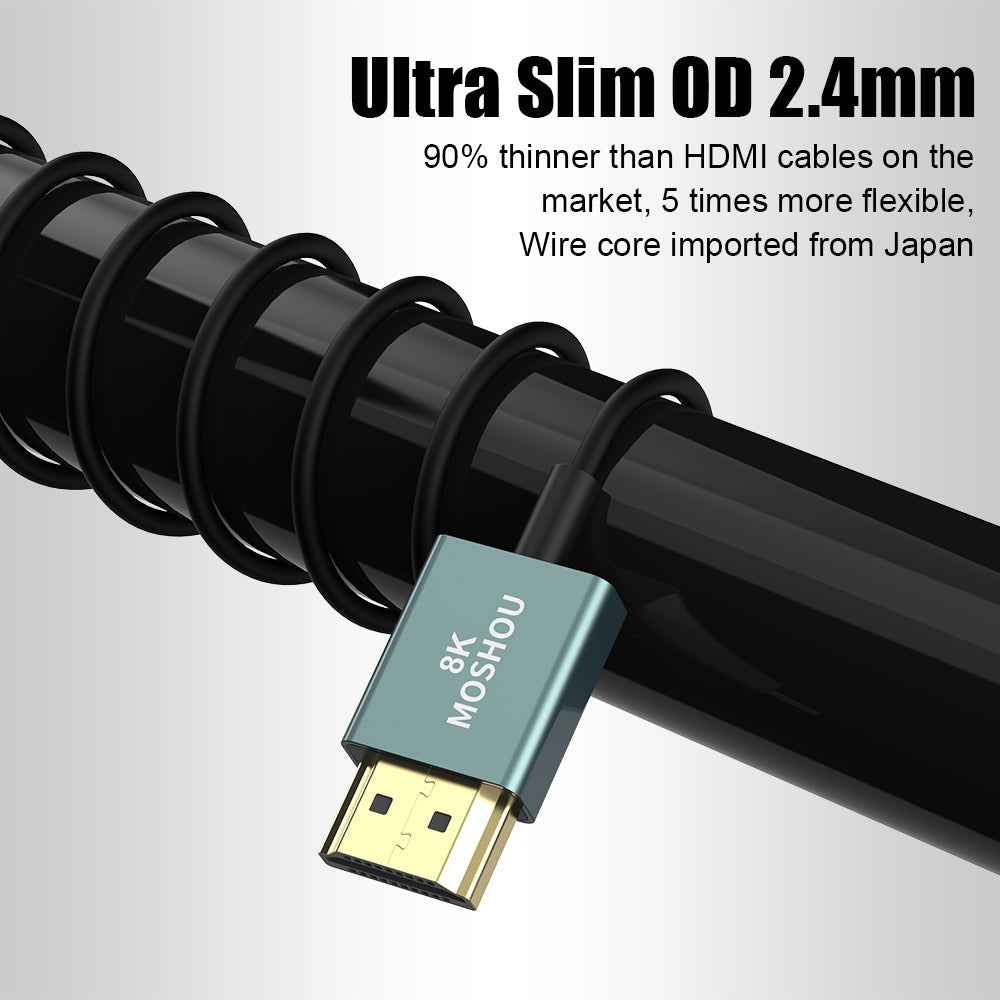

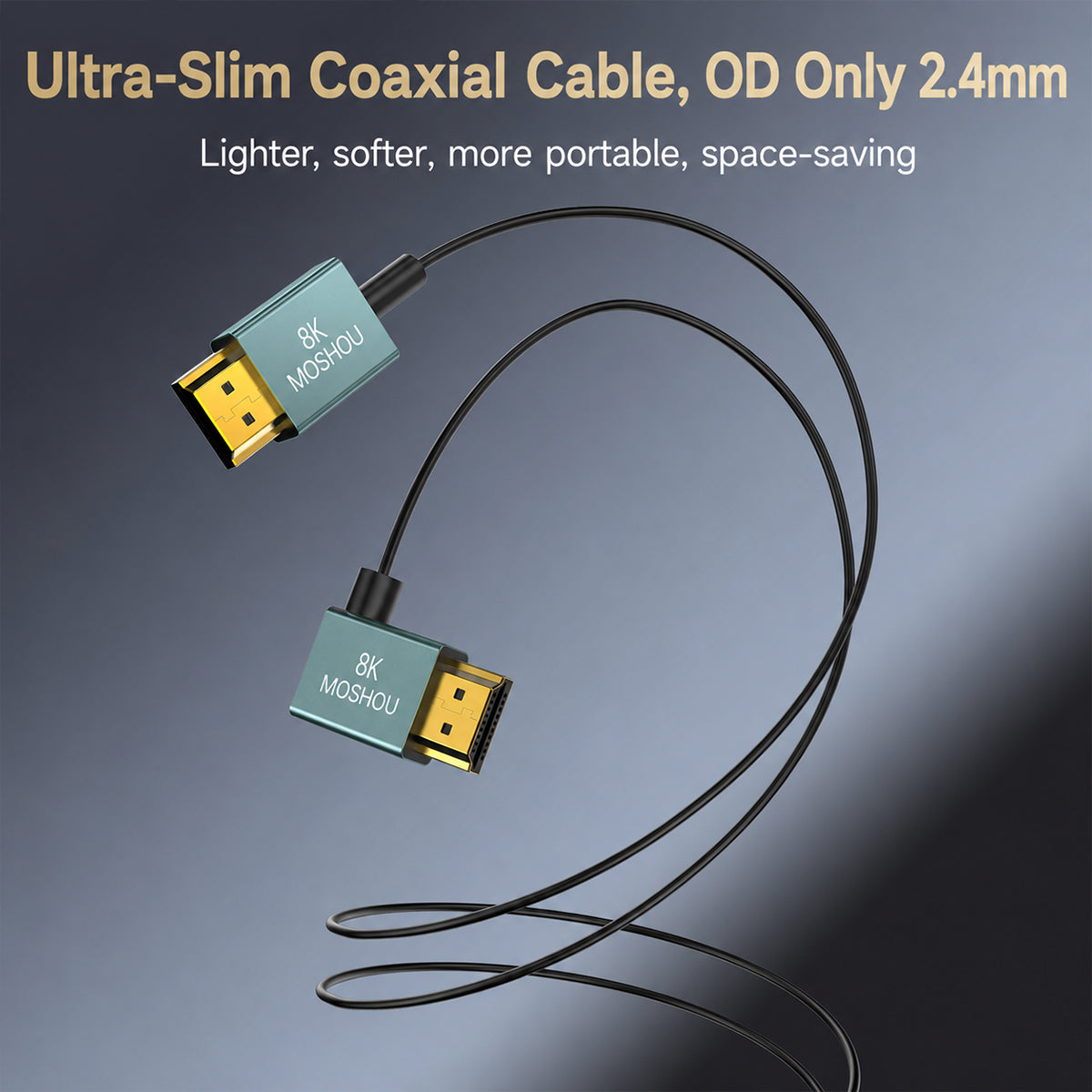

2.4mm ultra-slim coaxial construction: the exceptionally thin cable body is lightweight, flexible and easier to route through compact equipment setups.
-

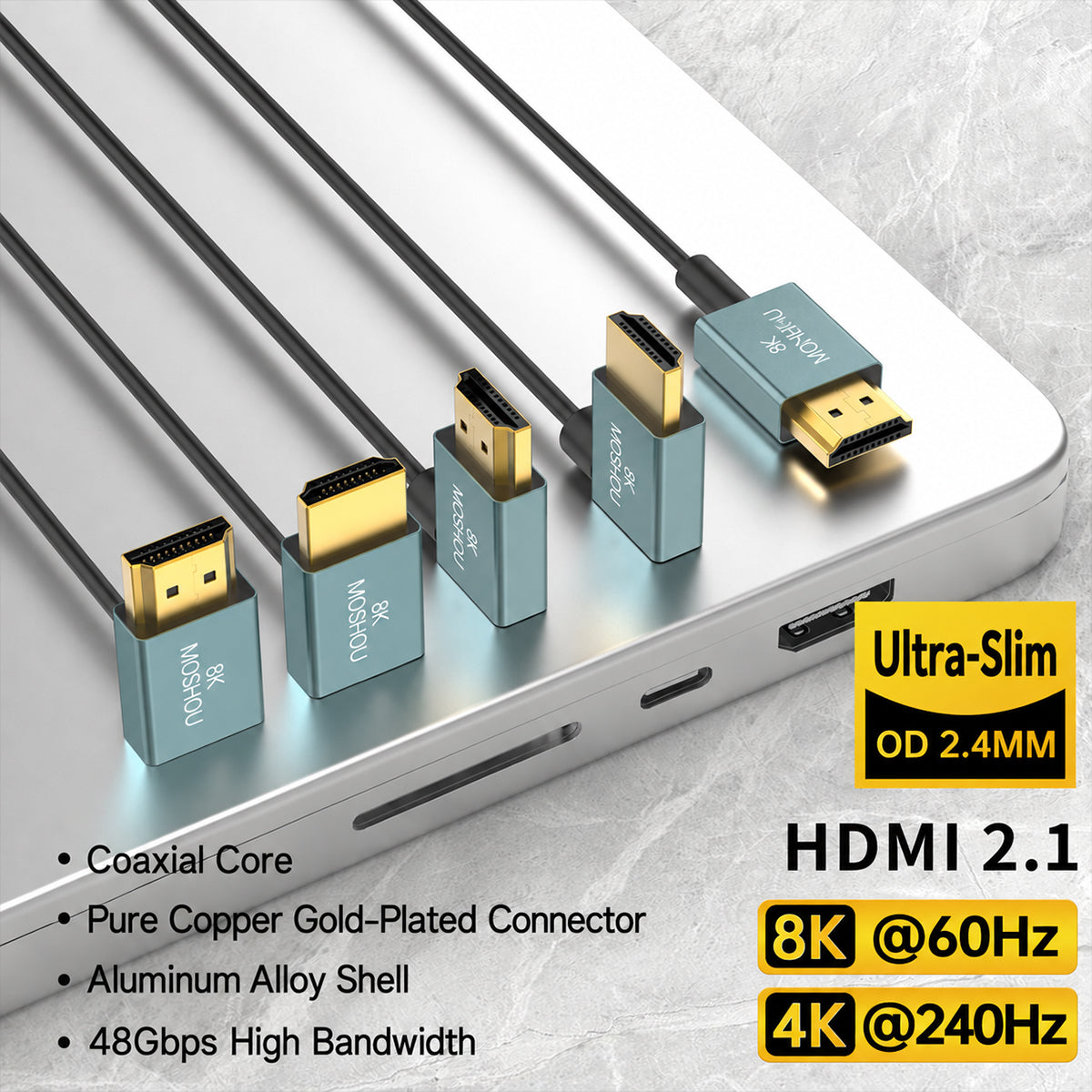

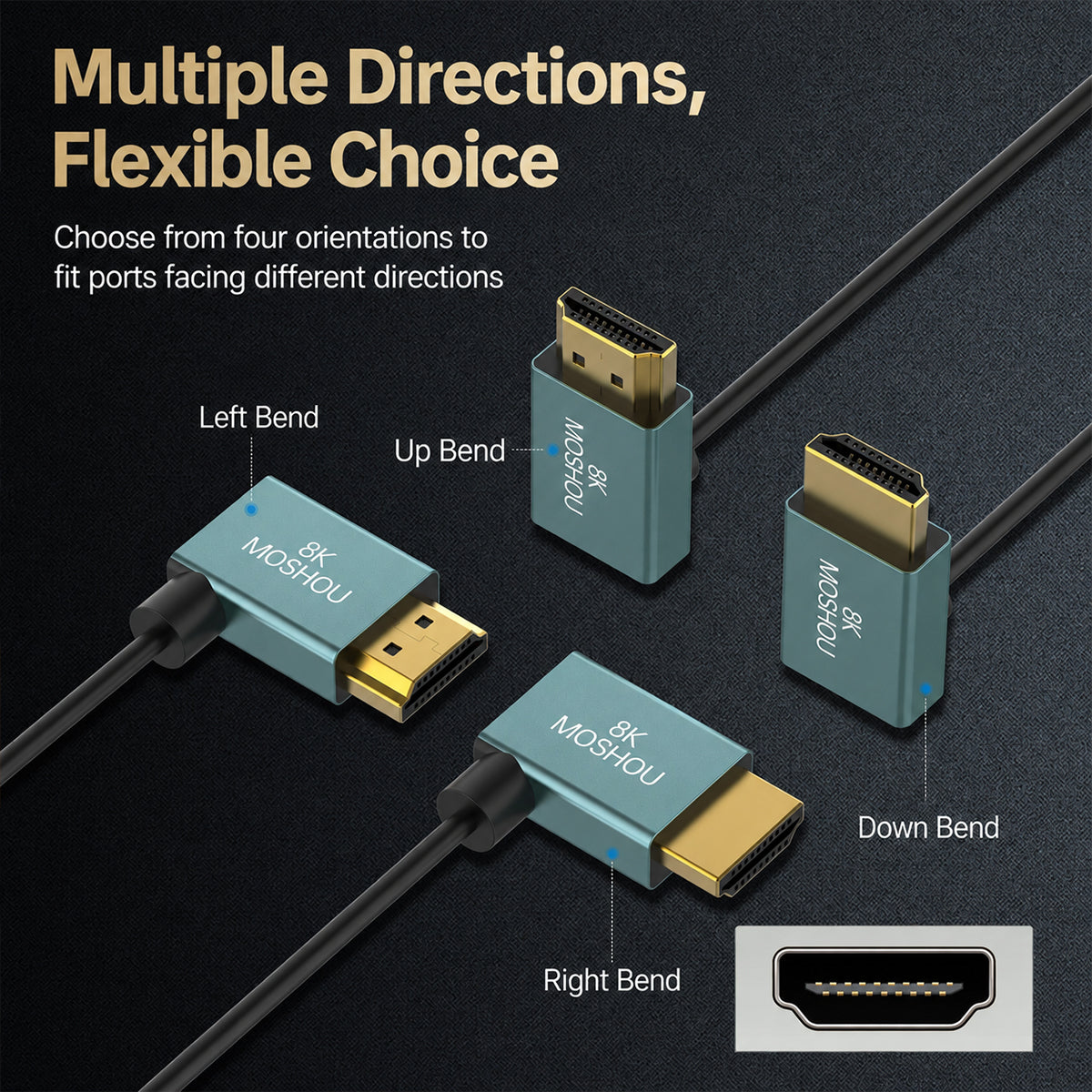

Five connector choices: select Straight, 90° Up, Down, Left or Right to reduce cable protrusion and sharp bends around recessed or closely spaced HDMI ports.
-
48Gbps HDMI 2.1 bandwidth: supports high-bandwidth video and audio transmission on compatible source and display equipment.
-
Up to 8K60 and 4K120: suitable for compatible 8K displays and high-refresh-rate 4K TVs or monitors, with backward compatibility for earlier HDMI equipment.
-
HDR and gaming support: supports Dynamic HDR, HDR10+, Dolby Vision, VRR, QFT, ALLM and QMS when the complete signal chain supports each feature.
-
Enhanced audio: supports eARC/ARC and compatible multichannel formats, including Dolby Atmos and DTS-HD.
-

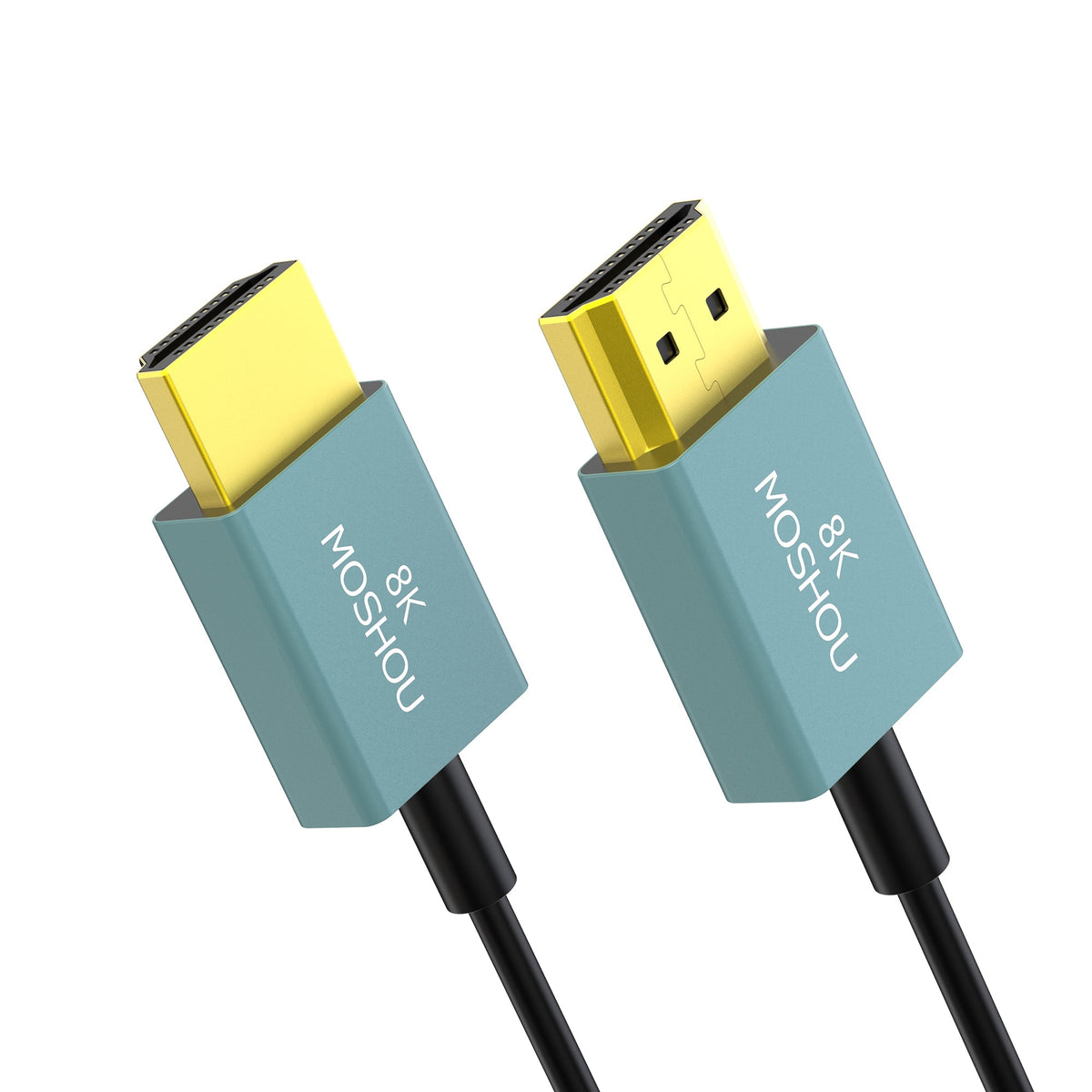

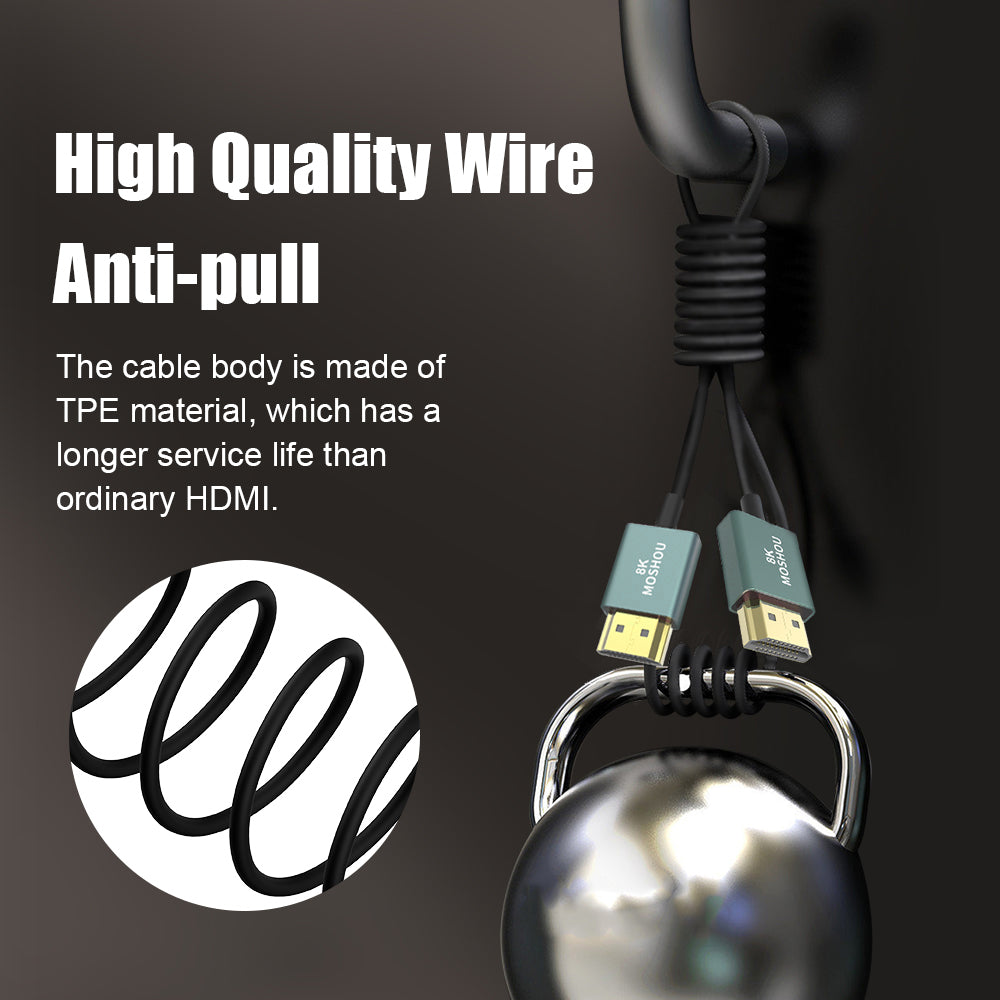

Compact aluminum connector shell: gold-plated HDMI contacts and reinforced cable joints are designed for stable everyday connections.
Compatibility

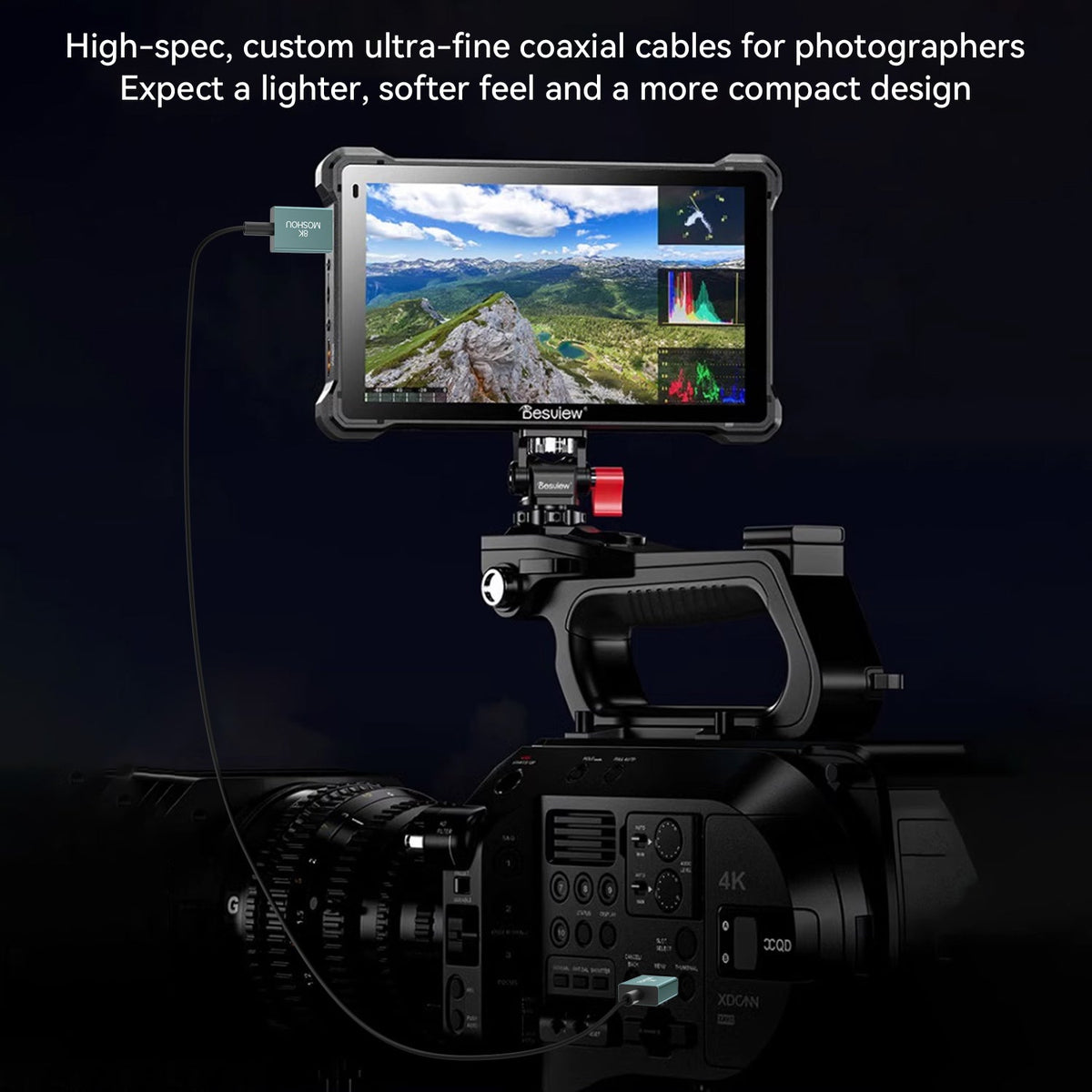

Works with: HDMI-enabled TVs, monitors, projectors, AV receivers, computers, cameras and camera monitors, Apple TV 4K, Blu-ray players, PS5, PS4, Xbox Series X/S, Nintendo Switch and other compatible HDMI devices.
Before buying: check the HDMI port orientation, nearby wall or cabinet clearance, selected connector direction and required cable length. Maximum resolution, refresh rate, HDR, VRR and audio performance depend on every device and HDMI port in the signal chain.

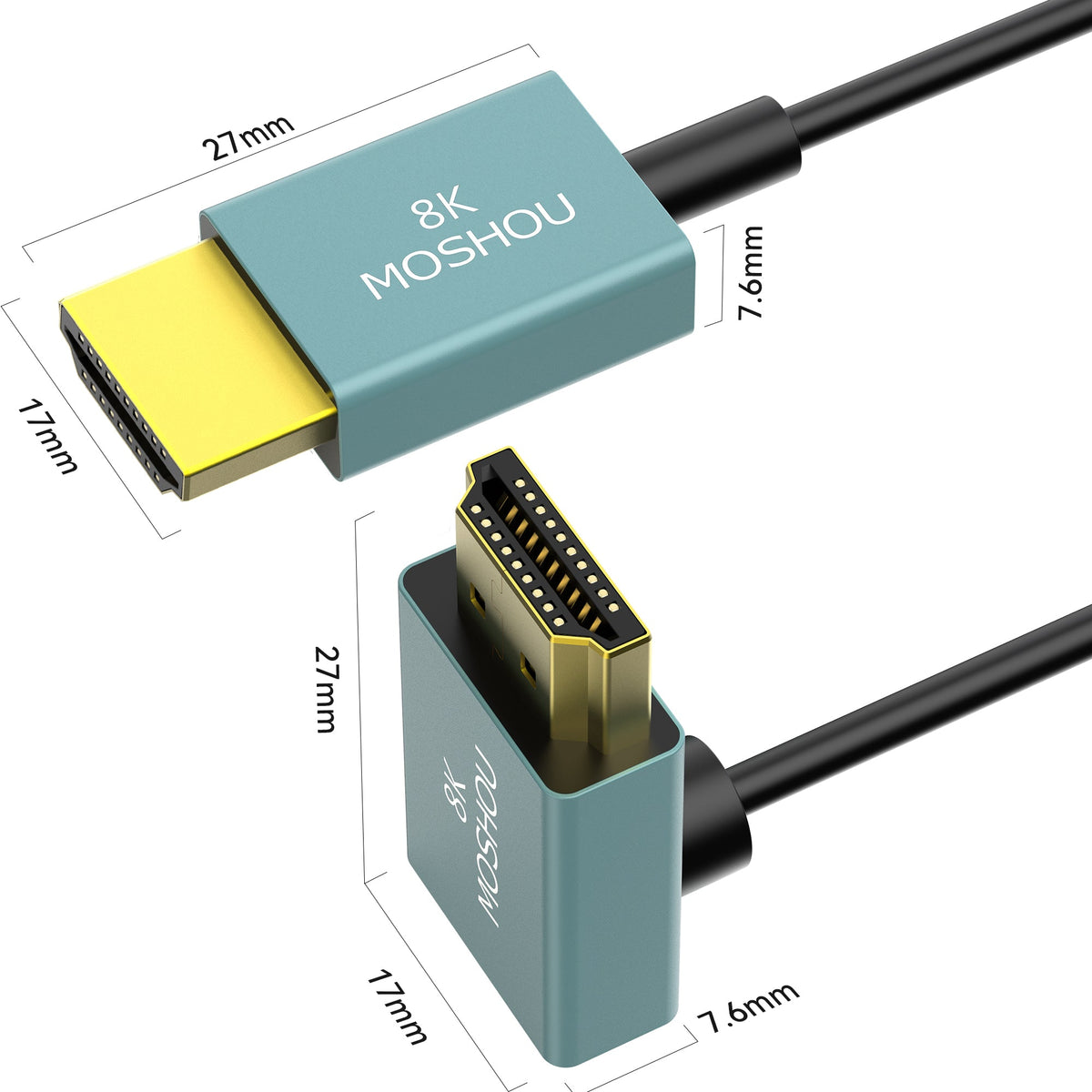

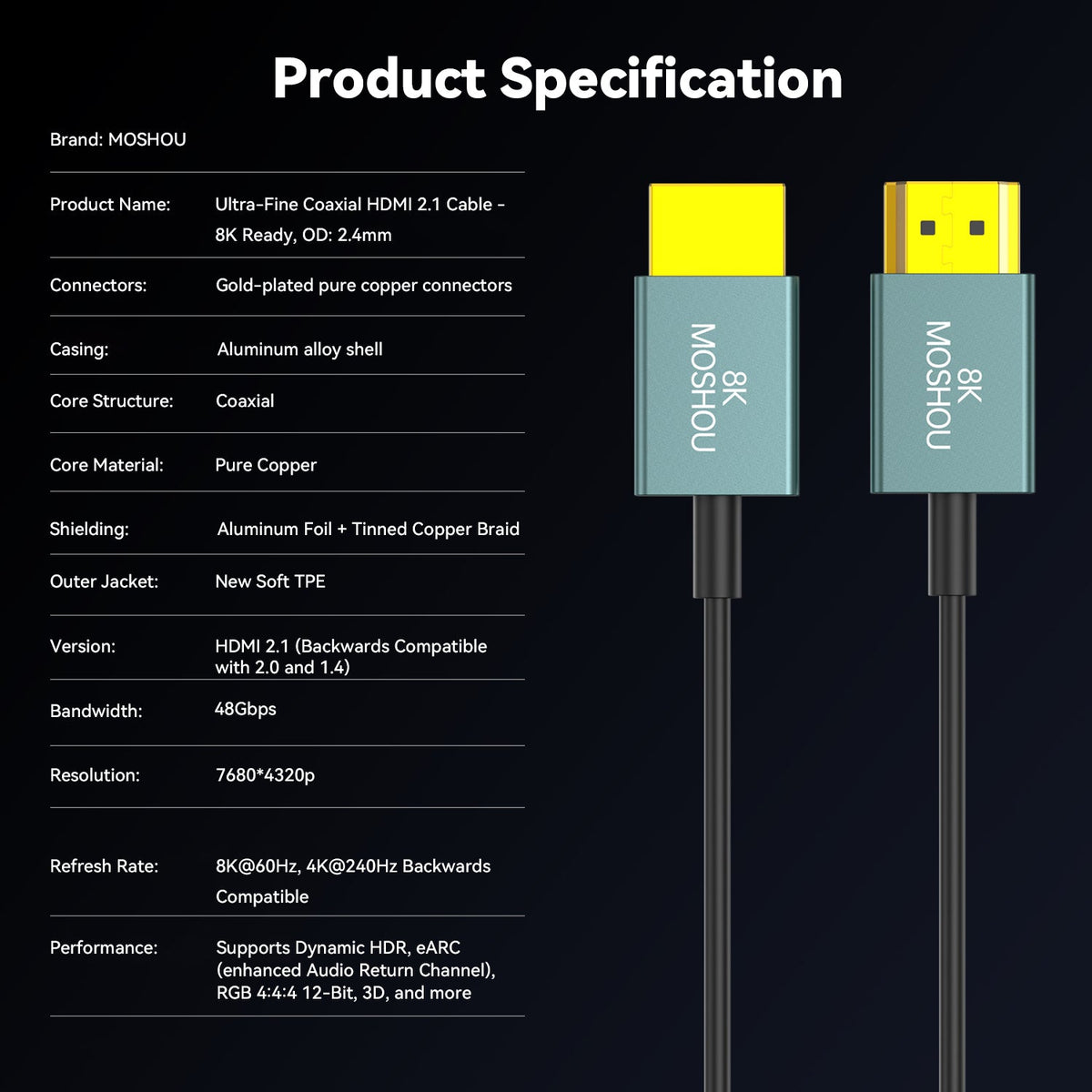

Specifications
- Connector: HDMI male to HDMI male
- Cable structure: ultra-slim coaxial cable

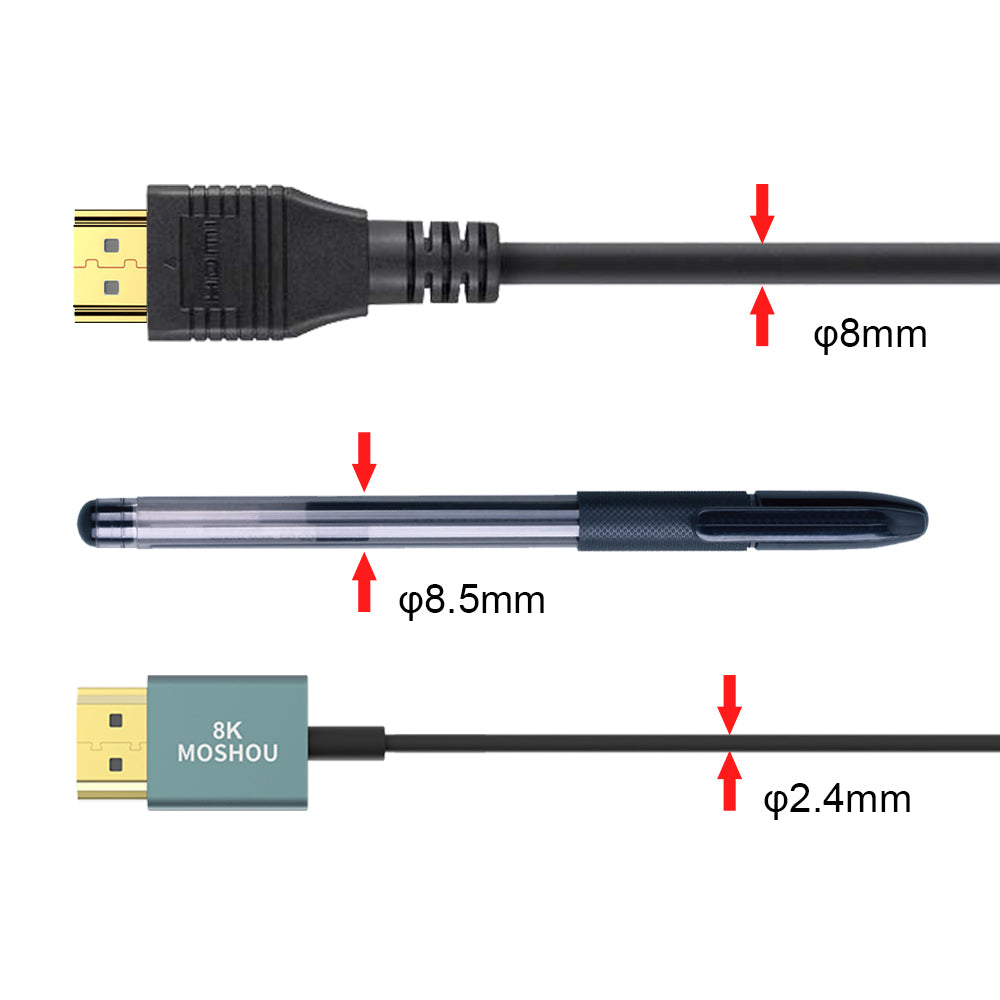

- Outer diameter: approximately 2.4mm
- Bandwidth: up to 48Gbps
- Maximum supported video: 8K@60Hz / 4K@120Hz on compatible equipment
- Connector styles: Straight, 90° Up-Angle, 90° Down-Angle, 90° Left-Angle and 90° Right-Angle
- Available lengths: use the length options shown on this product page
Package Contents
1 × MOSHOU 2.4mm ultra-slim coaxial HDMI 2.1 cable in the selected length and connector style.
