DisplayPort Extension Adapter Guide: Can a DP 2.0 Male-to-Female Coupler Run 8K and High Refresh Rates?

A male-to-female DisplayPort adapter changes the physical connection point: a male connector plugs into a DisplayPort socket and the female end accepts a standard DP cable. It does not convert HDMI into DisplayPort, add graphics-processing capability, or upgrade a computer's video output. The link must still negotiate successfully from GPU to monitor.

When extending a DisplayPort port is useful

An adapter can make a recessed desktop graphics-card connection more accessible, simplify cable swaps on a fixed workstation, or relieve awkward cable routing near a monitor. It can also help when furniture or a mount restricts access. If you intend to add a second monitor, a basic adapter is not an MST hub or splitter.

Why 8K60 and 4K144 are not guaranteed by the adapter alone

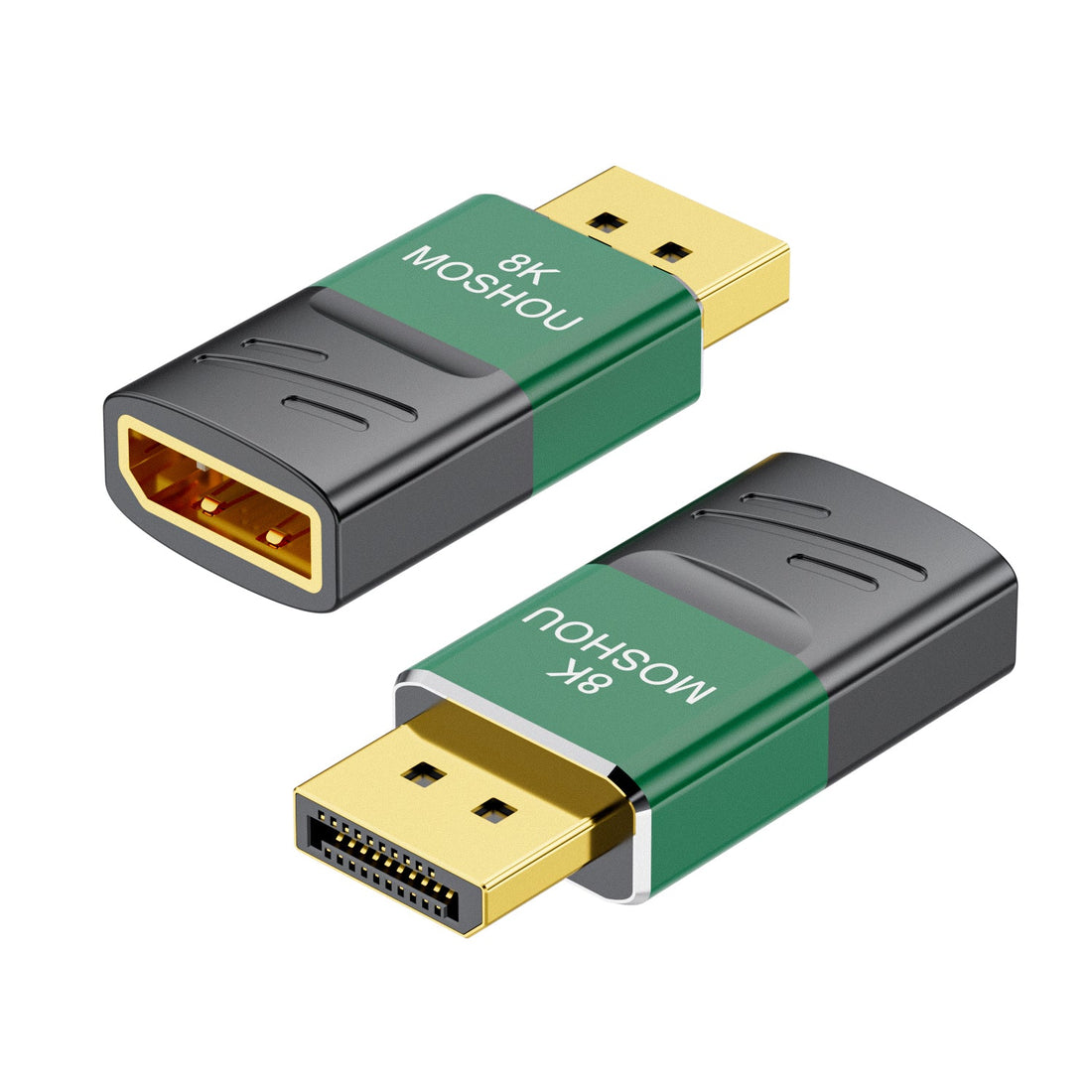

The MOSHOU listing specifies 8K60 and 4K144 modes. Actual modes depend on the graphics card, monitor, cable bandwidth, the complete connection length, compression support, color settings and firmware. A connector marked DisplayPort 2.0 does not itself guarantee that the entire link operates at the highest DP 2.x rate. Check the weakest component in the chain.

How to choose the right cable and connection

Connect source → adapter → compatible DisplayPort cable → display. Seat both plugs fully. Use a known-good, appropriately rated and reasonably short cable as your starting point. Avoid combining several extension pieces or tight bends if the screen flickers; each added mating point can reduce signal margin.

Troubleshooting a black screen or low refresh rate

First connect the monitor directly using the same cable. If that works, add the adapter back and test at a standard resolution and refresh rate. Then progressively raise the display settings. Check that the display input is set to DP, the GPU driver is current and the connector is not under mechanical strain. A direct connection is the simplest diagnostic baseline.

Compatibility: what to check before checkout

Confirm both ends are full-size DisplayPort rather than Mini DisplayPort, USB-C or HDMI. Verify there is physical clearance for the male-to-female body and the attached cable. Where possible, consult your graphics-card and monitor manuals for the mode you need, and verify that the cable also supports it.

Frequently asked questions

Can this turn one DP port into two? No, it is a one-to-one connector. Does it convert HDMI? No. Will it increase the monitor's refresh rate? No; all components must support the target mode. Can a longer cable lower stability? Yes, depending on construction and link rate. Will it work on all 8K displays? Only with a compatible source, display and full connection. Does it carry audio? DisplayPort links may carry audio when devices and settings support it. Can it repair a damaged GPU port? No. Should I power off devices before installing? Follow manufacturer guidance and avoid forcing connectors.

Final buying advice

Choose an extension adapter for access and cable management, not as a bandwidth upgrade. Test the exact combination of GPU, monitor and cable at your desired resolution, refresh rate and color depth before committing to permanent cable routing.
