DisplayPort Fiber Cable No Signal? Source vs Display Direction & Long-Distance Setup Guide

If a DisplayPort optical fiber cable shows no signal even though both devices support DisplayPort, check the cable direction before changing GPU drivers or display settings. Active optical DisplayPort cables can be directional: one connector must face the source device and the other must face the display.

The MOSHOU DisplayPort 2.1 OM4 Optical Fiber Cable is a directional active optical cable available from 1m to 50m. The connector marked Source goes to the PC, workstation or graphics card. The connector marked Display goes to the monitor. Reversing them results in no video output.

Why Are Some DisplayPort Fiber Cables Directional?

An active optical cable does more than pass an electrical signal through passive copper conductors. It contains active circuitry that converts and carries high-speed signal data through optical fiber as part of the transmission system.

Because the transmitter and receiver functions are built into specific ends, the signal path has a fixed direction. On this MOSHOU cable, that direction is Source → Display.

This is different from many short passive DisplayPort copper cables, which buyers may be used to connecting either way. With a directional AOC cable, connector orientation is part of the installation.

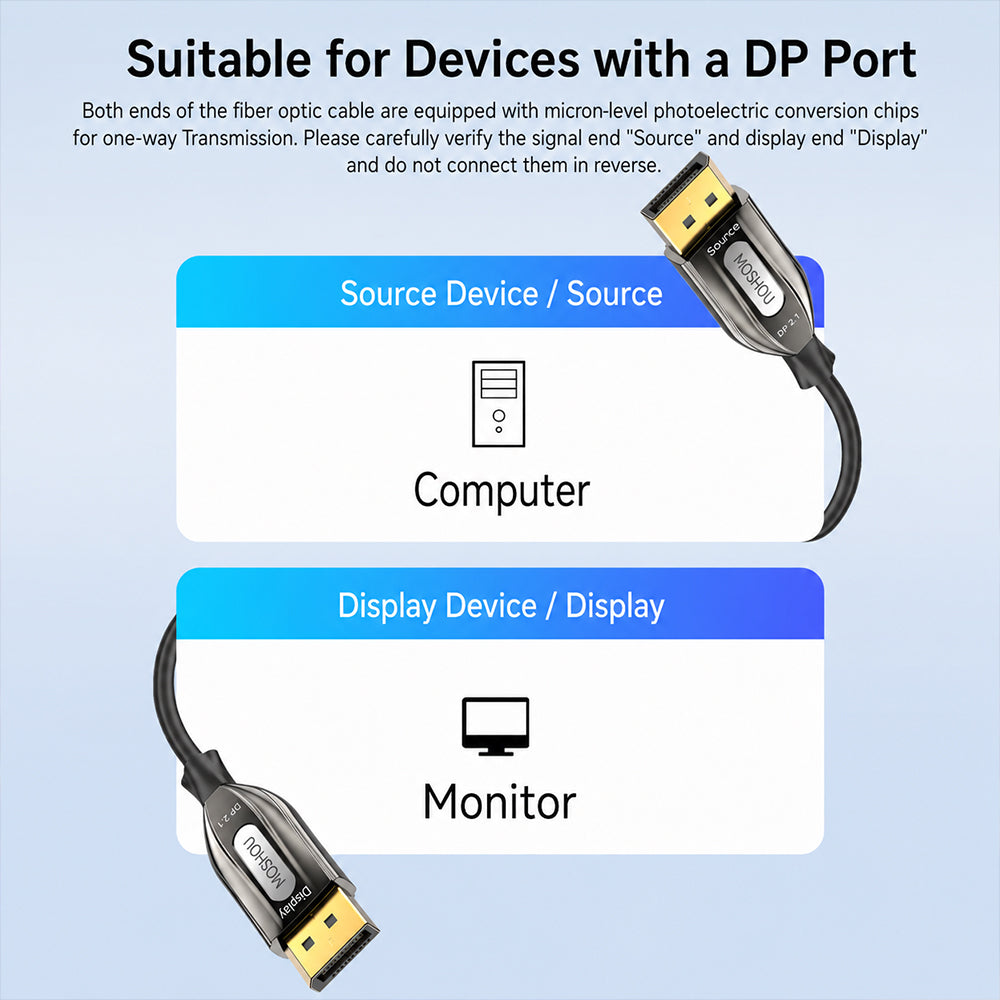

Which End Goes to the PC and Which End Goes to the Monitor?

• Source: connect to the DisplayPort output on a desktop PC, workstation, graphics card or other supported source device.
• Display: connect to the DisplayPort input on the monitor or supported display.

If the cable is already hidden in a wall, conduit or ceiling and the ends were installed in reverse, changing software settings will not correct the physical signal direction. This is why orientation should be checked before permanent installation.

DisplayPort Fiber Cable No Signal: Quick Diagnostic

1. Check direction first. Source must be at the computer or GPU; Display must be at the monitor.
2. Confirm the monitor input. Select the correct DisplayPort input in the monitor menu.
3. Try a basic resolution. Start with a resolution and refresh rate both devices are known to support.
4. Confirm the GPU port. Make sure you are using a DisplayPort output rather than another connector through an unsupported adapter.
5. Test before concealment. Verify stable video before routing the cable through a wall, ceiling, conduit or fixed installation.

If the cable works at a basic mode but not at a very high resolution or refresh rate, the issue may be system capability rather than direction. GPU support, monitor support, port version, DSC support, operating system and selected settings can all affect the available modes.

Why Use Optical Fiber for Long DisplayPort Runs?

The MOSHOU cable uses an OM4 hybrid optical-and-copper construction. Optical fiber carries the high-speed signal while copper conductors support the active circuitry.

That construction allows the product range to extend far beyond typical short desktop cable lengths, with options from 1m all the way to 50m. This makes it useful for workstations, simulator setups, control rooms, equipment racks, studio installations and other situations where the computer and display are physically separated.

Can It Support 4K240 or 8K120?

The MOSHOU product listing advertises up to 80Gbps and target modes including up to 4K240, 8K120 and higher-resolution modes when supported by the complete system and required compression mode.

These figures are not created by the cable alone. A 4K240 setup, for example, requires the GPU, DisplayPort output, monitor, operating system, display settings and any required DSC support to align with that mode.

If your monitor only supports 4K144, installing an 80Gbps cable will not turn it into a 4K240 monitor.

Does Cable Length Change the Available Resolution?

The product line is designed for long-distance transmission from 1m to 50m, but maximum resolution and refresh rate are still determined by the connected system and installation conditions.

For permanent long runs, use a simple rule: test the exact cable length with the exact source and display before hiding it. This is especially important for 20m, 30m, 40m or 50m installations where replacing a concealed cable later can be difficult.

When a 20m–50m DisplayPort Cable Makes Sense

• PC or workstation stored in a separate equipment room.
• Large desk or simulator setup with the computer away from the display.
• Control rooms and monitoring stations.
• Studio or production spaces with centralized computers.
• Concealed architectural installations where long DisplayPort routing is required.

Can You Use It With DisplayPort 1.4 or Older Equipment?

The product is designed to be backward compatible with compatible DP 2.0, DP 1.4 and DP 1.2 equipment. In a mixed-version setup, the connection operates within the limits of the lower-capability devices and ports.

For example, connecting the cable to a DP 1.4 display does not upgrade that display to DP 2.1 bandwidth. The cable simply provides the physical link while the system negotiates within supported capabilities.

What Should You Check Before In-Wall or Concealed Installation?

• Confirm Source and Display ends before routing.
• Test the full cable before closing walls, ceilings or conduit.
• Confirm the required cable length with some routing allowance, but avoid unnecessary excess.
• Verify the target resolution and refresh rate using the exact GPU and display.
• Avoid sharp bends, crushing or excessive pulling during installation.
• Make sure the connector housings can physically pass through the intended route.

FAQ

Why does my DisplayPort fiber cable show no signal?

On a directional cable, the most common first check is orientation. Connect Source to the PC or GPU and Display to the monitor.

Can I reverse the cable?

No. This MOSHOU active optical cable is designed for Source-to-Display transmission only.

Which connector goes to the graphics card?

The connector marked Source.

Which connector goes to the monitor?

The connector marked Display.

Does it support 4K240?

The product advertises up to 4K240 when the complete system supports that mode.

Does it support 8K120?

The product advertises up to 8K120 under compatible system and compression conditions.

Can I use it with a DP 1.4 monitor?

It is listed as backward compatible with compatible DP 1.4 equipment, but performance is limited by the lower-capability hardware.

What is the longest available length?

50 meters.

Should I test it before putting it in the wall?

Yes. Test direction, stable video and your target display mode before permanent installation.

Final Verdict

Directional DisplayPort optical cables solve a real long-distance installation problem, but they require more planning than a normal short passive cable. With the MOSHOU DP 2.1 OM4 cable, remember the most important rule before troubleshooting anything else: Source goes to the computer, Display goes to the monitor.
