DisplayPort 2.1 vs DP 1.4: UHBR, DP54, DP80, DSC & Cable Selection
DisplayPort cable shopping becomes confusing when product listings mix version numbers, bandwidth numbers, UHBR rates and certification labels. A better way to evaluate a DisplayPort connection is to separate four things: link rate, usable payload, cable certification and the video format you want to run.
This guide explains the practical differences between DisplayPort 1.4-class links and DisplayPort 2.1, including HBR3, UHBR, DP54, DP80 and DSC.
DisplayPort 1.4 and HBR3
DisplayPort 1.4 systems commonly use HBR3 signaling. The four-lane raw link rate is 32.4Gbps. Legacy DisplayPort link modes use 8b/10b encoding, so not every transmitted bit becomes video payload.
DisplayPort 1.4 also brought wider use of Display Stream Compression, allowing demanding high-resolution and high-refresh modes to fit within the available transport bandwidth when compatible hardware supports DSC.
DisplayPort 2.x and UHBR
DisplayPort 2.x introduces Ultra-High Bit Rate signaling and uses more efficient 128b/132b encoding. Compared with legacy 8b/10b encoding, less link capacity is consumed by encoding overhead.
The highest DP 2.x cable class is associated with UHBR20 and an 80Gbps raw link rate. VESA uses certification labels such as DP54 and DP80 so users can identify the tested cable performance rather than relying only on a generic “DP 2.1” claim.
See the official DisplayPort FAQ for current terminology.
What do DP54 and DP80 mean?
| Cable class | UHBR capability | Raw link class |
|---|---|---|
| DP54 | Up to UHBR13.5 | Up to 54Gbps |
| DP80 | Up to UHBR20 | Up to 80Gbps |
A DP80 cable is the choice when you need the full UHBR20 link capability. A lower-bandwidth system does not become faster simply because a DP80 cable is connected, but the cable avoids becoming the limiting component when both source and display support the higher rate.
Why 80Gbps does not equal 80Gbps of video payload
The advertised link number is a raw transport rate. Encoding overhead, protocol traffic and video transport requirements mean usable video payload is lower. This distinction matters when you calculate whether a particular resolution, refresh rate, color depth and chroma format can travel uncompressed.
The newer 128b/132b encoding used with UHBR is far more efficient than the 8b/10b encoding used by older HBR modes, which is one reason DisplayPort 2.x can make better use of its higher raw link rate.
Where DSC fits in
DSC is a visually lossless, low-latency compression method standardized by VESA. It is important for extremely high-resolution or high-refresh display modes that would otherwise exceed the available uncompressed payload.
When a cable listing mentions modes such as very high-refresh 4K, 8K120 or 16K-class resolutions, always check whether the mode depends on DSC and whether the GPU and monitor both support it.
DP 2.1 does not guarantee full 80Gbps on every device
This is one of the most important buying points. A DisplayPort 2.1 port may support a lower UHBR tier rather than UHBR20. Therefore, the cable, GPU and monitor must all support the link rate you want.
The practical workflow is:
- Check the GPU or source port link rate.
- Check the monitor’s DisplayPort link rate and target mode.
- Determine whether the mode uses DSC.
- Choose a cable certified or specified for at least that link rate.
Passive copper vs active DisplayPort cable
High-frequency signals become harder to maintain as cable length increases. For short desk runs, a properly constructed passive copper cable is usually the simplest option. For longer installations, active copper or optical transmission can provide more reliable signal integrity.
Active optical DisplayPort cables are typically directional, so the SOURCE and DISPLAY ends must be installed correctly. Read our long-distance copper vs fiber guide before routing a cable through a wall or conduit.
Which MOSHOU DP cable fits which use case?
For a conventional short-to-medium desktop run, the MOSHOU DisplayPort 2.1 80Gbps braided cable is designed for high-bandwidth gaming and workstation connections.

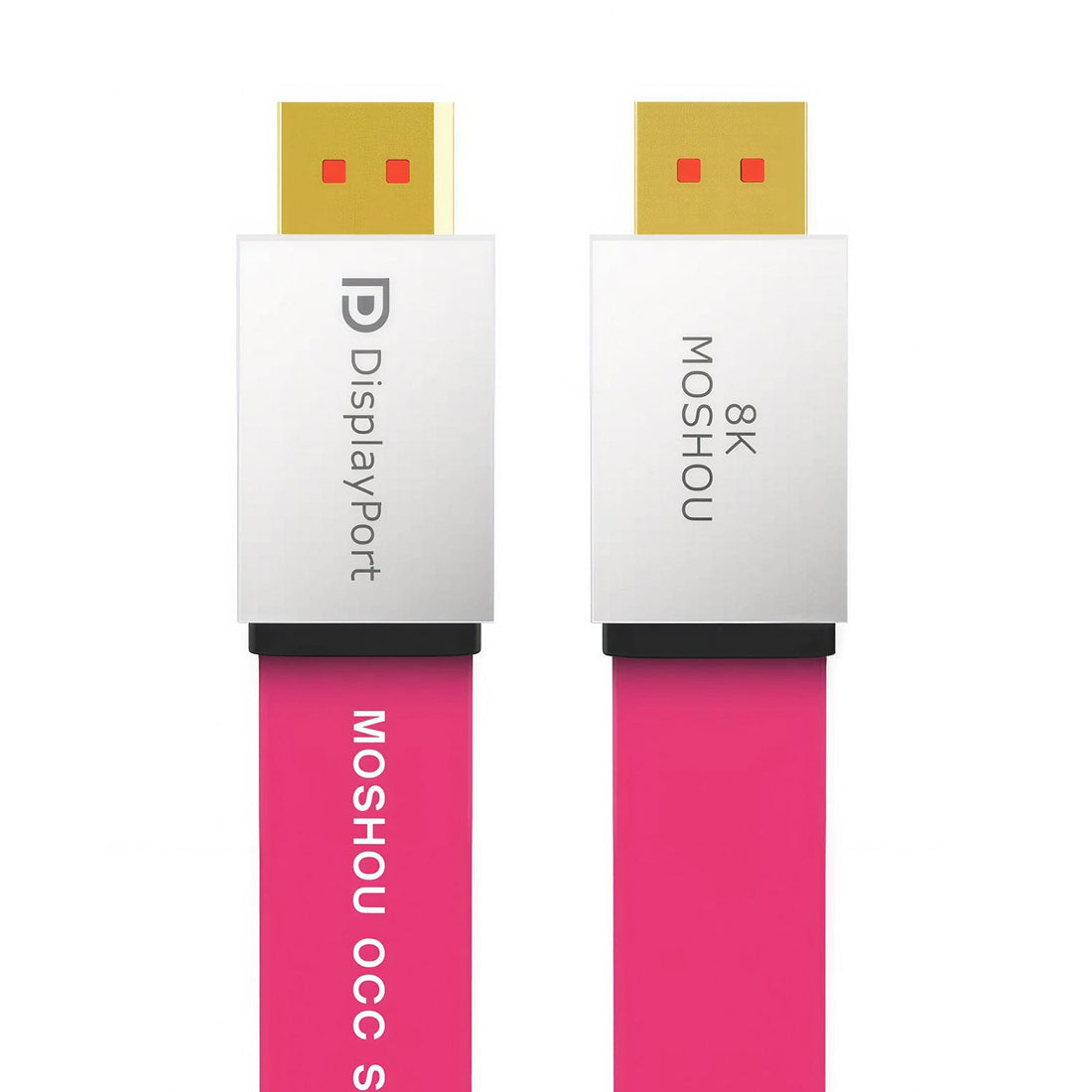

For a low-profile route, the MOSHOU Pink Flat DisplayPort 2.1 80Gbps cable uses a flat construction and silver-plated OCC conductors. Cable bandwidth alone does not guarantee a particular display mode; the GPU and display must support it as well.
For long-distance runs, see the MOSHOU DisplayPort 2.1 Optical Fiber Cable.
FAQ
Is DP80 the same thing as DisplayPort 2.1?
No. DP80 is a cable performance/certification class for full UHBR20 capability. DisplayPort 2.1-capable products can implement different link-rate capabilities.
Is DisplayPort 1.4 enough for 4K gaming?
It can be, depending on refresh rate, bit depth, chroma and whether DSC is used. The exact target mode matters more than the version number alone.
Does DP 2.1 always mean 16K?
No. High-resolution claims depend on complete signal parameters and often DSC. A cable cannot make a GPU or monitor support a mode it does not implement.
Can DP80 cables work with older DisplayPort devices?
Yes, with standard backward compatibility. The connection negotiates to the capability supported by the devices.
