DisplayPort 2.1 Extension Cable Guide: 80Gbps, 4K240, 16K & Total Cable Length

A DisplayPort extension cable is useful when the original DP port is difficult to reach: behind a desktop tower, inside a cable-managed workstation, on a wall-mounted display or in a setup where repeatedly plugging into the graphics card is inconvenient. Instead of replacing the main monitor cable, a male-to-female extension moves the connection point to a more accessible location.

For high-bandwidth DisplayPort 2.1 systems, however, extension length matters. The advertised resolution or refresh rate is not determined by the extension alone. The source, extension, second DP cable, display and any required DSC settings all form one signal chain.

What is a DisplayPort extension cable?

A standard monitor cable usually has a male DisplayPort plug at both ends. An extension cable is different: it has one DisplayPort male plug and one DisplayPort female socket. The male side connects to the existing DP source or port, and another male DisplayPort cable plugs into the female side.

That makes an extension useful for access and routing, not for connector conversion. It does not convert DisplayPort to HDMI, USB-C or Mini DisplayPort.

Why use an extension instead of a longer replacement cable?

An extension can make sense when your main cable is already installed, routed through a desk, attached to a monitor arm or otherwise inconvenient to replace. It can also reduce repeated access to a recessed graphics-card port by moving the connection point closer to the desk edge.

On the other hand, if you are building a new installation and can use one correctly sized male-to-male cable from the start, a single cable keeps the signal chain simpler. The choice depends on whether convenience or minimum total connection complexity matters more in your setup.

What does 80Gbps mean here?

The MOSHOU extension is designed as a DisplayPort 2.1 high-bandwidth cable with a maximum advertised bandwidth of up to 80Gbps. Product materials also state support for high-resolution and high-refresh configurations such as up to 16K60 and 4K240 when the complete hardware chain and DSC requirements are satisfied.

Those numbers describe the intended capability of a compatible full chain. They should not be read as a guarantee that any computer and monitor will produce those modes simply because an 80Gbps extension is installed.

If your source or display supports only an earlier DisplayPort mode, the final connection operates within the capabilities shared by the devices and cables in the chain.

Total cable length matters more than extension length alone

Once you add an extension, the signal travels through both the extension and the connected DP cable. For high-bandwidth modes, the practical question is therefore the total cable path, not just the length printed on the extension.

A short 0.25m extension attached to a short high-quality monitor cable creates a different signal path from a 3m extension attached to another long cable. The product page therefore recommends using the shortest practical total length for demanding resolutions and refresh rates.

If a high-refresh or high-resolution mode becomes unstable after adding an extension, test a lower resolution or refresh rate, shorten the chain where possible, and verify the second DisplayPort cable as well as the source and display settings.

4K240, 8K and 16K: what has to support the mode?

For a broader explanation of standards and bandwidth classes, see the DisplayPort 2.1 vs DP 1.4 guide and the video bandwidth guide.

Construction for a routed workstation

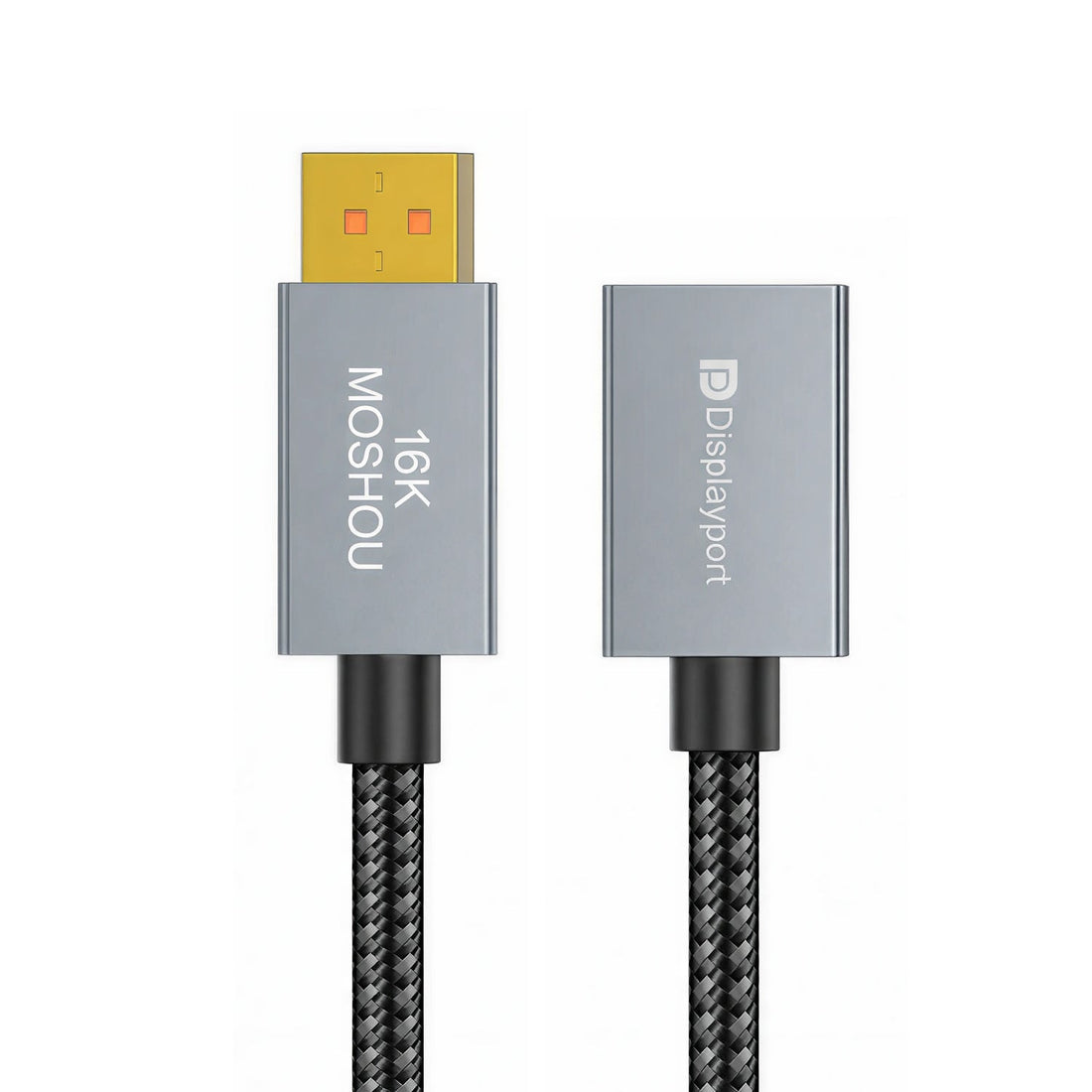

The MOSHOU extension uses 28AWG high-purity copper conductors, multi-layer shielding, an approximately 7.3mm cable diameter, aluminum-alloy housings, gold-plated contacts, orange connector insulators and a cotton-braided outer jacket over PVC. Available lengths range from 0.25m to 3m.

The range is useful because an extension often solves a positioning problem rather than a long-distance problem. A short length can move a graphics-card connection just far enough to make it accessible without adding unnecessary cable to the signal path.

Gaming features and high refresh rates

Product materials list support for compatible G-Sync, FreeSync, FEC, DSC and Dynamic HDR. As with resolution and refresh rate, these functions depend on the devices and complete connection chain. An extension cannot add adaptive-sync or HDR capability to hardware that does not support it.

For gaming setups, stability is more important than selecting the longest available extension. Use only as much extra length as the physical layout actually requires.

Before You Buy

• Confirm you need a full-size DisplayPort male-to-female extension, not a normal male-to-male cable.
• It does not convert HDMI, USB-C or Mini DisplayPort.
• Check the source and monitor support for your target resolution and refresh rate.
• Count the extension plus the connected DP cable as one total signal path.
• For demanding 80Gbps/high-refresh modes, use the shortest practical total cable length.
• High-resolution modes such as advertised 16K60 or 4K240 require a compatible complete chain and, where needed, DSC.

FAQ

Can this extension connect directly from a computer to a monitor?
The female end requires another male DisplayPort cable, so it extends an existing connection rather than replacing a standard male-to-male cable.

Does it convert DisplayPort to HDMI?
No. Both ends are full-size DisplayPort.

Is it backward compatible with DP 1.4 equipment?
The product is designed for DisplayPort 2.1 and is backward compatible with supported DP 1.4 equipment, with final performance limited by the connected hardware.

Can I get 4K240?
Only when the source, display, extension, second cable and required settings all support that configuration.

Can it support 16K60?
Product materials state support up to 16K60 when the complete chain and DSC requirements are met.

Will a longer extension always reduce performance?
Not automatically, but total cable length and every component in the chain can affect the highest stable bandwidth. Shorter practical runs are preferred for demanding modes.

Which length should I choose?
Choose only the extra reach you need. Available lengths are 0.25m, 0.5m, 1m, 1.5m, 2m, 2.5m and 3m.

Does it support adaptive sync?
Product materials list compatible G-Sync and FreeSync support, subject to the capabilities of the source and display.

Is this a splitter?
No. It extends one DisplayPort connection and does not create additional display outputs.
