Bidirectional HDMI Switch vs Multi-Input HDMI Switch: Which One Fits Your Setup?

An HDMI switch is useful when your display has too few HDMI inputs, or when you want to change between devices without repeatedly unplugging cables. But “HDMI switch” can describe very different layouts. Two common types are a bidirectional 2-in-1 / 1-in-2 switch and a multi-input 3/4/5-in-1 switch.

They solve different connection problems. This guide explains the signal direction, display behavior, control method and performance considerations so you can choose the right one before buying.

Quick comparison

Feature	Bidirectional HDMI Switch	Multi-Input HDMI Switch
Typical layout	2 inputs → 1 output, or 1 input → 2 selectable outputs	3 / 4 / 5 inputs → 1 output
Best for	Two-device or two-display setups	Several consoles, streamers or computers sharing one display
Control	Front button	IR remote or front button
Simultaneous dual-display output?	No	No; one output only
Advertised maximum	Up to 48Gbps, 8K60 / 4K120 with a compatible chain	Up to 48Gbps, 8K60 / 4K120 with a compatible chain

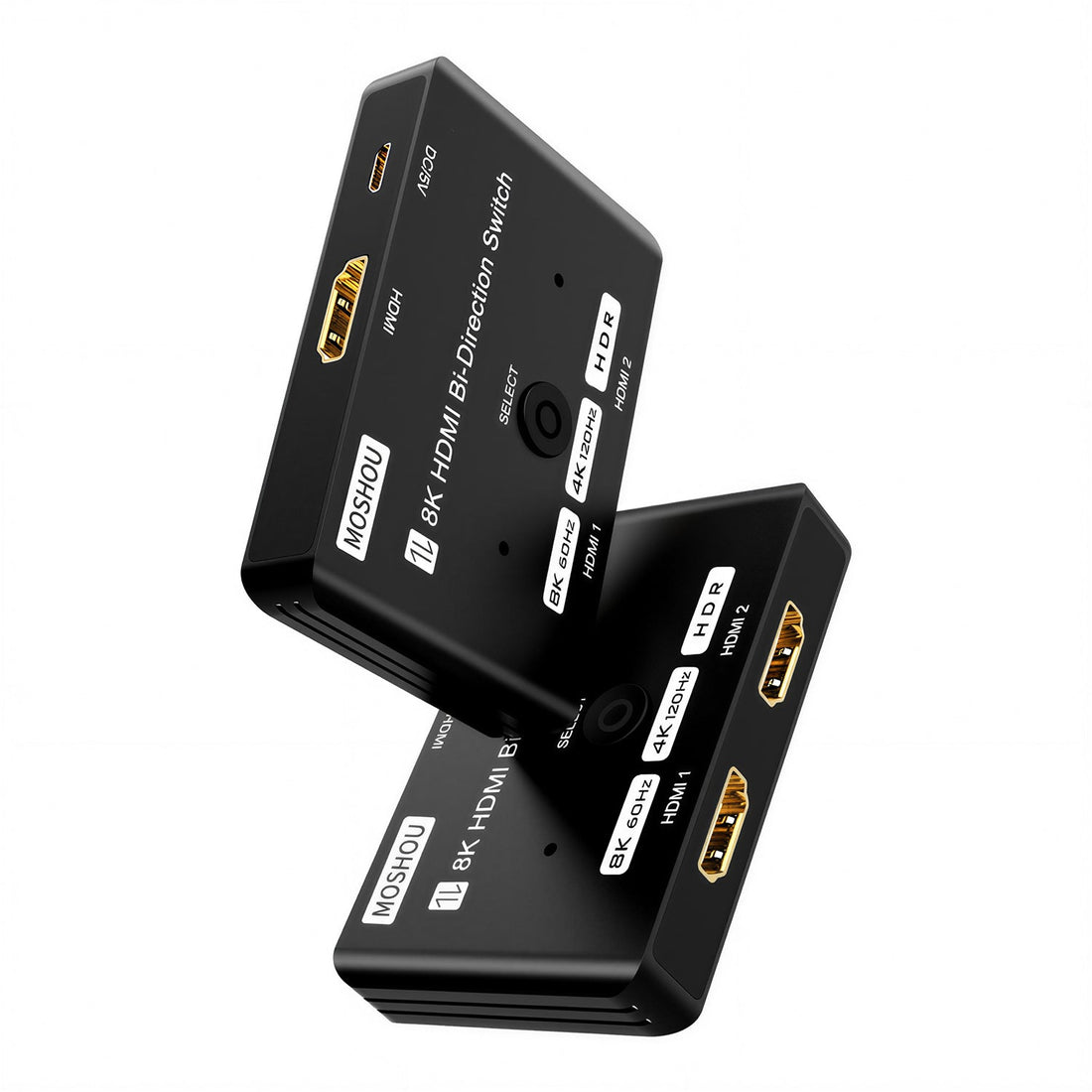

Option 1: Bidirectional 2-in-1 / 1-in-2 HDMI switch

The bidirectional model is the more flexible choice when you only need two HDMI paths. In 2-in-1 mode, two source devices share one display. For example, a game console and PC can share one monitor or TV.

In 1-in-2 mode, one source can be connected to two displays and you select which display receives the signal. This is useful when the same console, media player or computer needs to alternate between a TV and monitor.

Important: 1-in-2 mode is selectable output, not simultaneous output. Only one display is active at a time. If you need the same signal on two displays at the same time, you need a true HDMI splitter, not this switch.

Option 2: Multi-input HDMI switch

If your main problem is having many source devices but only one HDMI input available on the display, the multi-input version is more practical. MOSHOU offers 3-in-1-out, 4-in-1-out and 5-in-1-out variants, allowing several devices to share one TV, monitor or projector.

This design is a better fit for entertainment centers with combinations such as a PlayStation, Xbox, Nintendo console, streaming box and PC. Only the selected source is sent to the display.

Button control vs remote control

The bidirectional model uses a physical selection button, which is simple for a desk or compact setup where the switch is within reach. The multi-input model can be controlled from its front button or with the included IR remote, which is more convenient when the switch sits inside a TV cabinet or farther from the seating position.

What 48Gbps, 8K60 and 4K120 mean in a switch setup

Both MOSHOU product listings specify up to 48Gbps and support for signal modes up to 8K60 and 4K120 when the complete system is compatible. A switch does not create bandwidth that the source, cables or display do not support.

For a high-bandwidth setup, every link matters: source HDMI output, input cable, switch, output cable, display HDMI input, display settings and the content mode. If one part of the chain supports a lower mode, the system may negotiate down or fail to display the requested signal.

For more background on signal bandwidth and why resolution, refresh rate, bit depth and chroma all affect the link, see our video bandwidth guide. For HDMI version terminology, see HDMI 2.2 vs HDMI 2.1 vs HDMI 2.0.

Why a short black screen can appear when switching

Changing from one HDMI source to another requires the source, switch and display to re-establish the HDMI connection. The MOSHOU bidirectional switch listing notes that a short resynchronization period of around three seconds can occur during switching. A brief black screen during this handshake is therefore not necessarily a product fault.

Cable length matters at high bandwidth

The bidirectional switch product page recommends keeping both the input and output HDMI cables to about 1.5 m each for 8K60 or 4K120 use, with longer lengths more suitable for lower-bandwidth modes. High-bandwidth links have less margin for poor cable quality, excessive length or loose connections.

Which one should you choose?

• Choose the bidirectional switch if you have two sources sharing one display, or one source that needs to alternate between two displays.
• Choose the multi-input switch if you have three to five sources and one display.
• Choose a true splitter instead if you need one source displayed on two screens at the same time.
• Use the remote-control model when the switch is not within easy reach.

Before you buy

• Count your source devices and displays before choosing the port layout.
• Remember that neither product mirrors one source to multiple displays simultaneously.
• For 8K60 or 4K120, make sure your source, display and both HDMI cables support the required mode.
• Use appropriate cable lengths and avoid unnecessary adapters in high-bandwidth chains.
• Expect a brief HDMI resync when changing sources or outputs.
• IR remote control requires line-of-sight to the receiver area.

FAQ

What is the difference between an HDMI switch and an HDMI splitter?

A switch selects between HDMI paths. A splitter duplicates one source to multiple displays simultaneously. These MOSHOU products are switches, not simultaneous splitters.

Can the bidirectional switch show one source on two TVs at the same time?

No. In 1-in-2 mode you select one output at a time.

Can I connect two game consoles to one TV?

Yes. The 2-in-1 bidirectional model is designed for two sources sharing one HDMI input on a display.

What if I have four consoles and one TV?

The 4-in-1-out multi-input variant is the more suitable layout because it gives each source its own input and lets you select which one reaches the TV.

Does the multi-input switch output to more than one display?

No. It has one HDMI output.

Does the switch guarantee 4K120?

No device can guarantee a mode independently of the rest of the chain. The source, display, HDMI cables and settings must all support 4K120.

Why does the screen go black briefly when I switch inputs?

The HDMI connection needs to renegotiate between devices. A short resync period can occur when changing the active path.

Can I use longer HDMI cables?

Yes for many lower-bandwidth setups, but high-bandwidth 8K60 or 4K120 operation is more sensitive to total cable length and cable quality.

Which model is easier to control from a sofa?

The multi-input model includes IR remote control, making it more convenient for living-room setups.

Final verdict

The best HDMI switch is determined mainly by topology. For a compact two-device or two-display setup, the bidirectional 2-in-1 / 1-in-2 switch is flexible and simple. For a TV or monitor shared by several HDMI sources, the 3/4/5-input switch is the cleaner solution.
