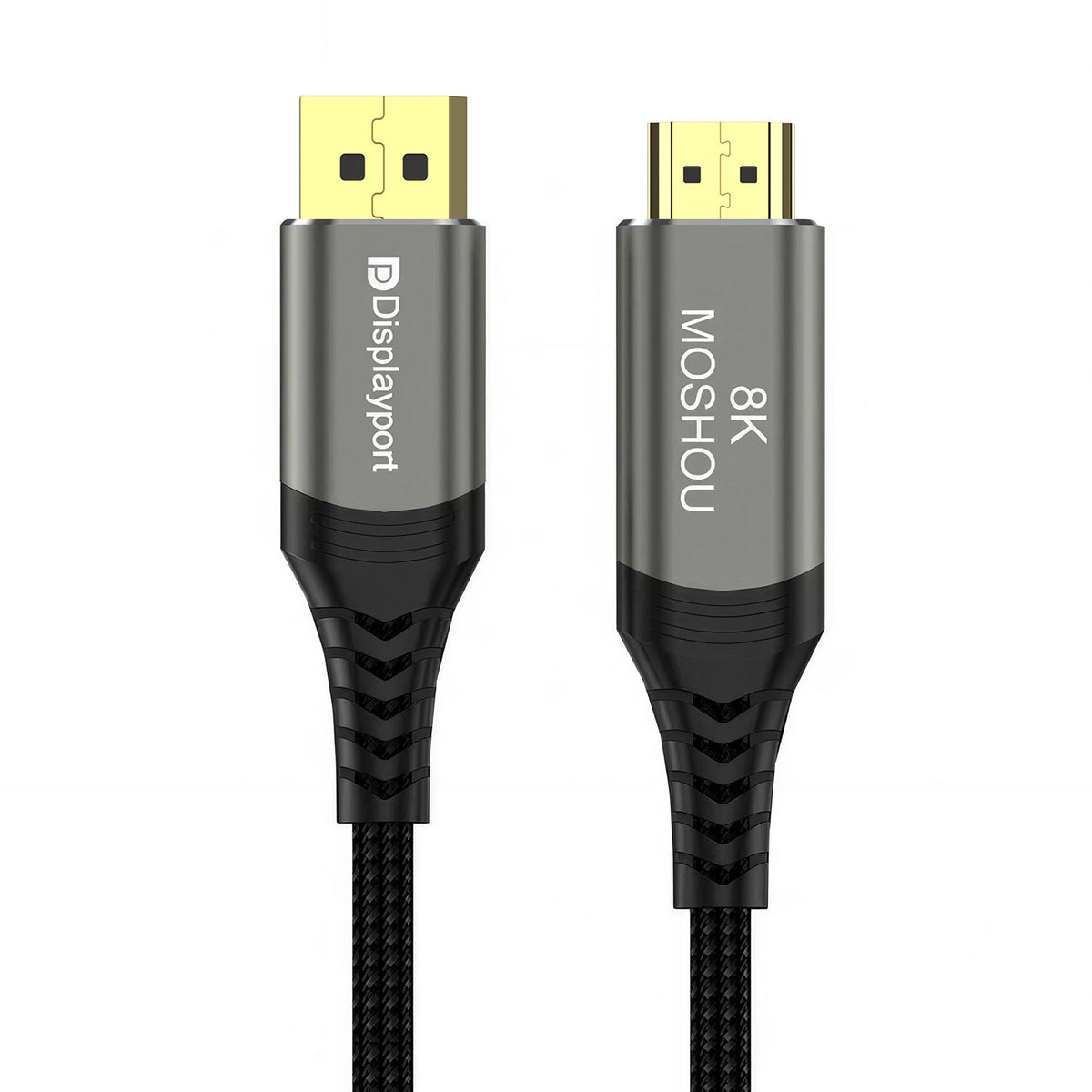

MOSHOU DisplayPort 1.4 to HDMI 2.1 Cable – 8K60, 4K120, 48Gbps

Connect a full-size DisplayPort 1.4 output on a graphics card, desktop, laptop or dock to an HDMI 2.1 monitor, TV or projector. The MOSHOU active DP-to-HDMI cable uses a Kuntai 7218 conversion chip and is designed for high-resolution video up to 8K at 60Hz or 4K at 120Hz with a fully compatible device chain.

Key Features

• DP 1.4 to HDMI 2.1: Converts a full-size DisplayPort source to an HDMI display.
• High-resolution output: Supports up to 8K60, 4K120/144 and 2K240 under compatible hardware and settings.
• 48Gbps design: Built for HDMI 2.1-class output bandwidth as stated in the product specifications.
• Active conversion chip: Kuntai 7218 chipset for DP-to-HDMI signal conversion.
• Gaming and HDR features: Product materials state support for Dynamic HDR, DSC, FEC, G-Sync and FreeSync when the full device chain supports them.

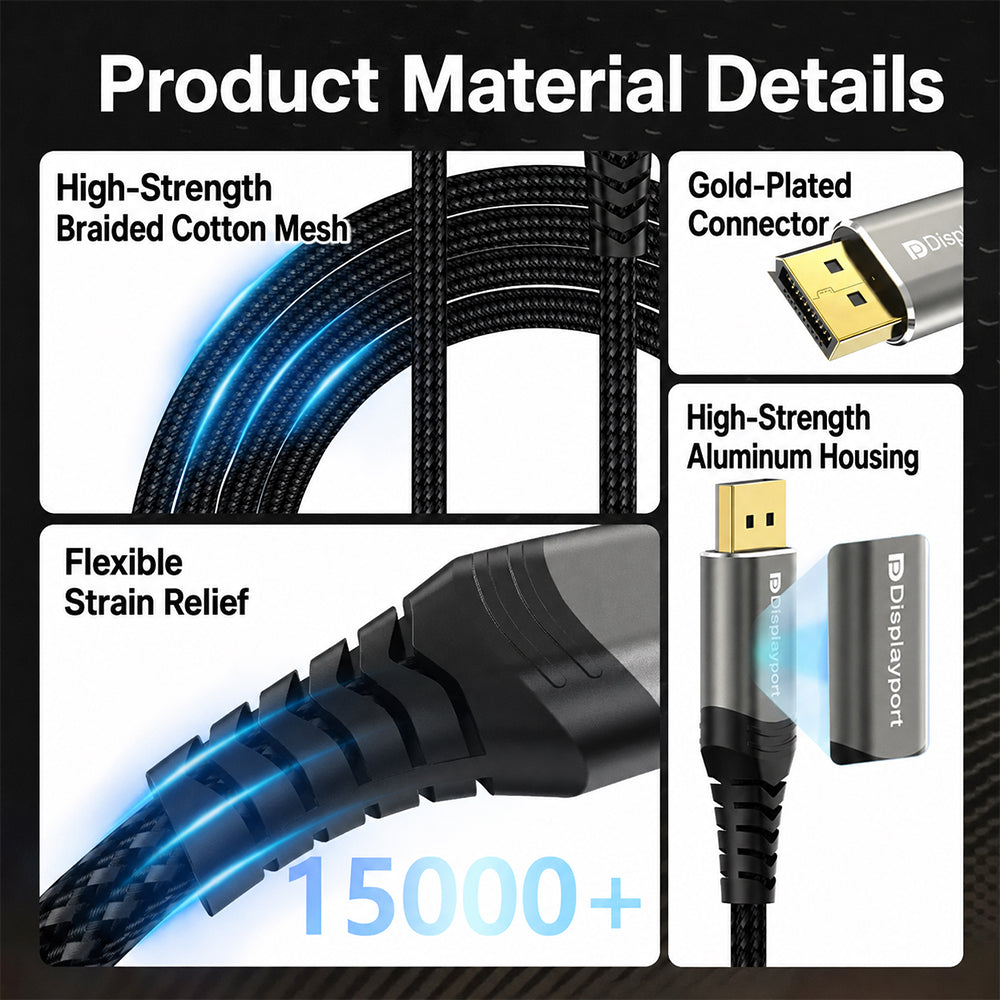

• Durable construction: 30AWG tinned-copper conductors, aluminum-alloy housings, gold-plated contacts, braided outer jacket and flexible strain relief.

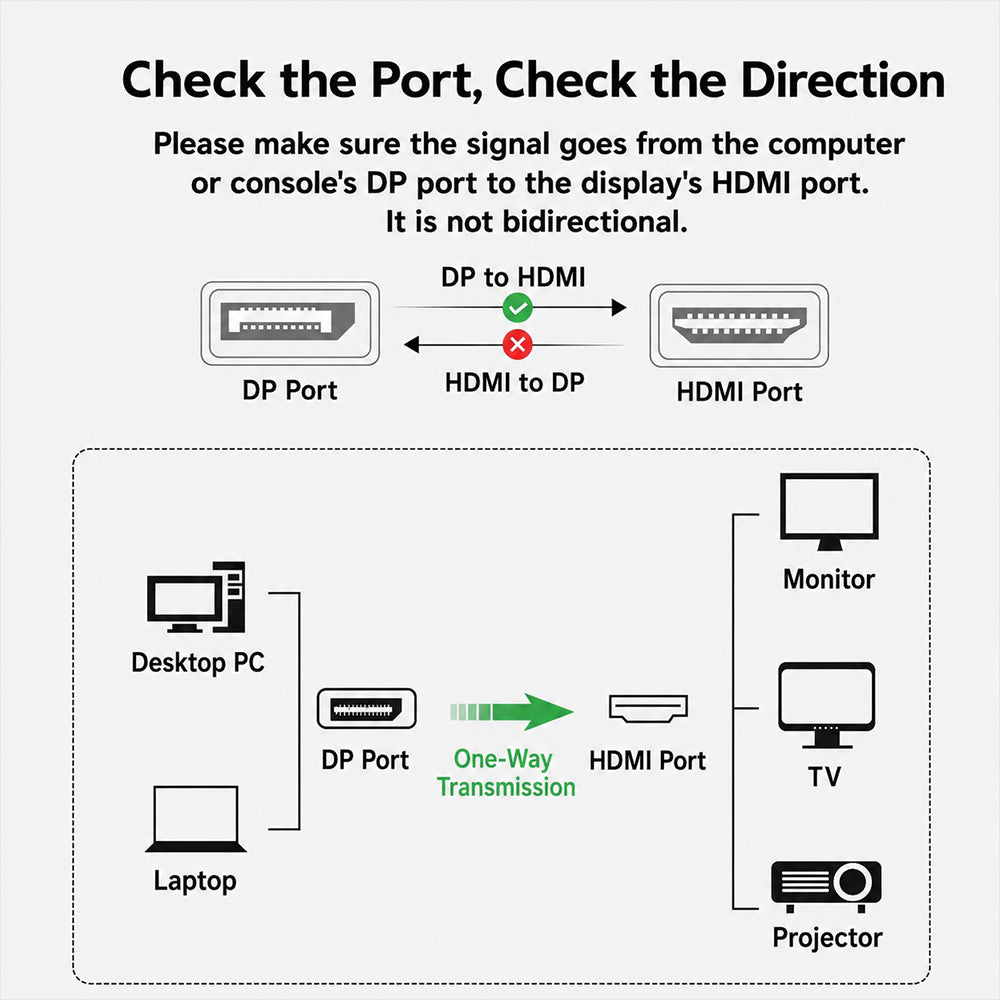

Important Direction Notice

This cable is one-way only: connect the DisplayPort plug to the computer or graphics-card output and the HDMI plug to the monitor, TV or projector input. It cannot convert HDMI to DisplayPort.

Compatibility

For desktops, laptops, docking stations and graphics cards with a full-size DisplayPort video output, connected to displays with an HDMI input. Suitable for compatible monitors, televisions and projectors.

Check before ordering: This is not Mini DisplayPort, USB-C, Mini HDMI or an HDMI-to-DisplayPort cable. 8K60 and 4K120/144 require a compatible DisplayPort source, HDMI 2.1 display, supported graphics hardware, appropriate display settings and compatible content. Some systems or displays may operate at a lower resolution or refresh rate.

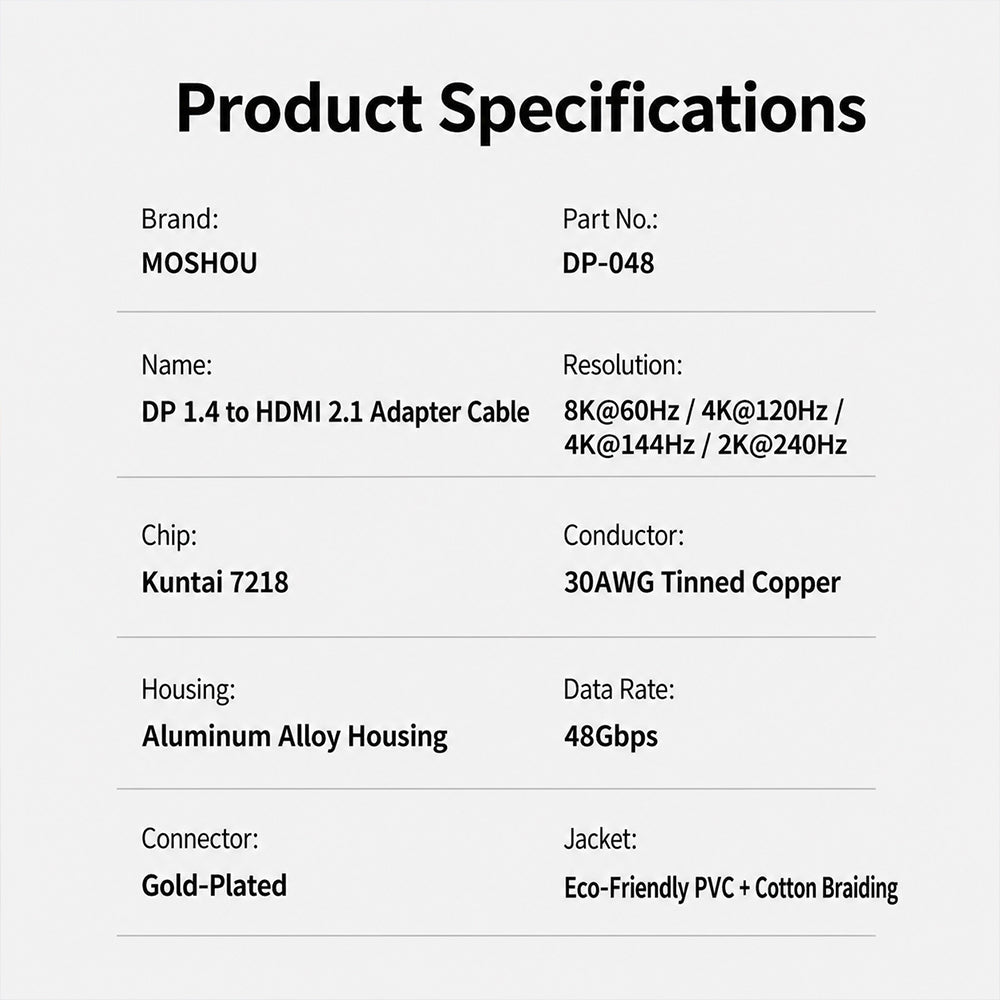

Specifications

• Input: DisplayPort 1.4 male
• Output: HDMI 2.1 male
• Signal direction: DP source → HDMI display
• Maximum advertised formats: 8K60, 4K120/144, 2K240
• Data rate: Up to 48Gbps
• Chip: Kuntai 7218

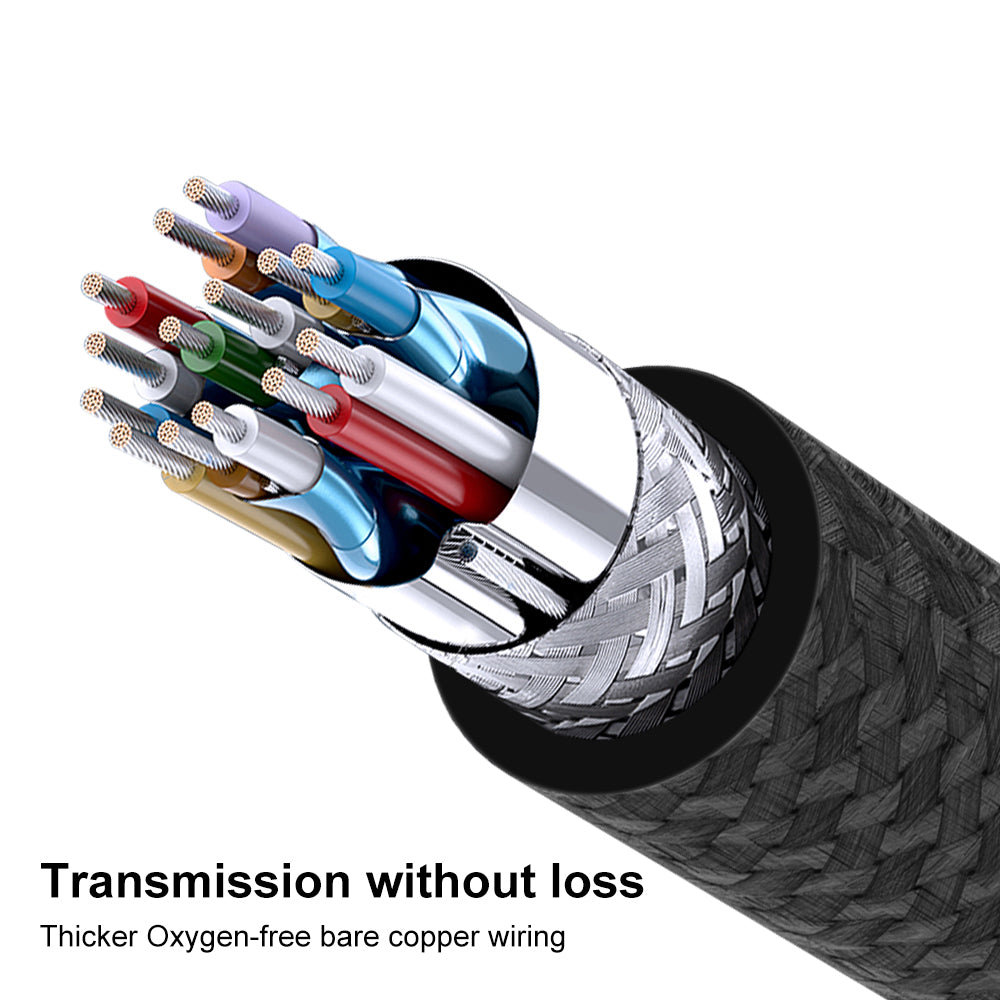

• Conductor: 30AWG tinned copper
• Housing: Aluminum alloy
• Connector contacts: Gold-plated
• Jacket: PVC with cotton braiding
• Lengths: 0.5m, 1m, 1.5m, 2m and 3m

Display Modes

Supports mirror, extend and compatible multi-screen arrangements through the operating system and graphics hardware.

How to Use

1. Connect the DisplayPort end to the source device.
2. Connect the HDMI end to the display.
3. Select the correct HDMI input and configure resolution and refresh rate in the operating system or graphics control panel.

Package Contents

1 × MOSHOU DisplayPort 1.4 to HDMI 2.1 Cable

FAQ

Can it work from HDMI to DisplayPort?
No. It is directional from DP source to HDMI display only.

Is it a DisplayPort 2.1 cable?
No. The input specification is DisplayPort 1.4; the output side is HDMI 2.1.

Does every device support 8K60 or 4K120?
No. The source, graphics hardware, HDMI display and settings must all support the selected format.

Does it carry audio?
It can carry supported digital audio together with video when enabled by the source and display.
