90-Degree DisplayPort Cable Guide: Choose the Right Bend for a Monitor Near the Wall

A 90-degree DisplayPort plug can route the cable away from a wall, monitor arm or desktop obstruction instead of projecting straight backward. However, up, down, left and right are relative to the orientation of the socket. What appears to be a right-facing elbow in one diagram may point toward the wall on a different monitor.

How to determine the correct bend before ordering

Photograph the monitor's DP port and note which side of the plug has the keyed corner. Draw the intended cable path from the installed monitor, not from an upside-down rear-panel image. Check surrounding HDMI, power and USB ports, the stand or arm, and how much room is left for your fingers to insert and release the plug.

Why a locking connector needs extra clearance

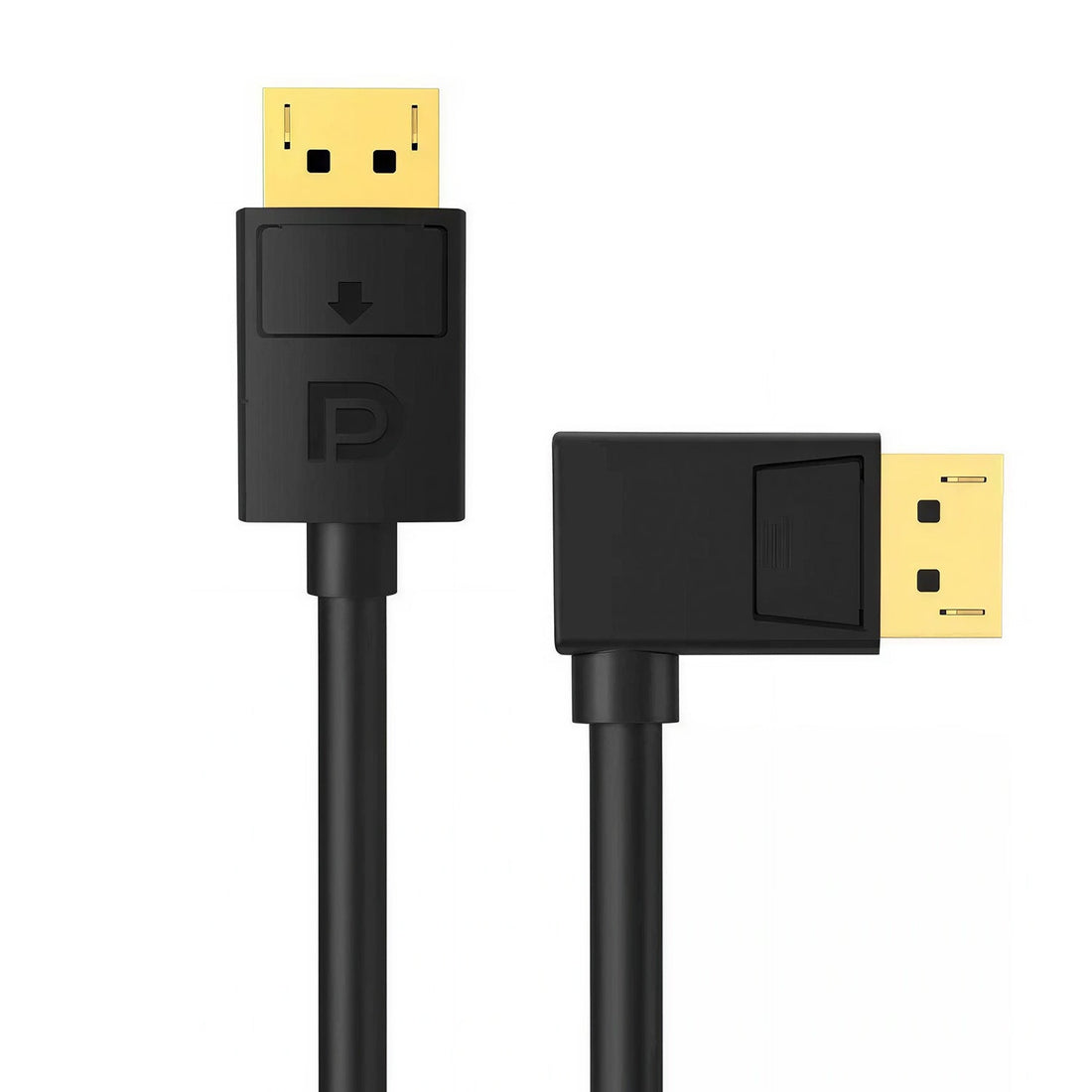

Some DisplayPort connectors use a mechanical latch. The MOSHOU angled DP 1.4 product lists locking connectors. Make sure you can reach the release control in the installed location. Never pull the cable by force if a lock is engaged; this can damage the monitor port or connector.

Will an angled cable reduce refresh rate?

A properly designed angled cable is not inherently slower because of its shape. Achievable resolution and refresh rate depend on the cable's electrical characteristics, length, source, display and operating mode. The product lists up to 8K60, but that is not a promise that every GPU or display will support that mode. Check the exact variant and system configuration.

Cable-length and routing checklist

Measure the actual path along the monitor arm or desk rather than the straight-line distance. Leave some slack for monitor movement; avoid tightly folding the cable immediately behind the connector. Use cable clips away from articulating joints, and don't trap the cable between a mount and wall.

Troubleshooting display loss after moving an arm

Inspect for cable pinching, excessive tension or a partly seated plug. Return the display to its previous position, reconnect carefully and confirm the source input. If the picture returns with a direct straight cable but not an angled one, test the angled lead at a less demanding display setting before assuming a graphics-card failure.

Frequently asked questions

Is up-angle always the right choice for wall mounts? No, socket orientation differs. Is the 90-degree bend reversible? No, the physical cable exit direction is fixed. Can it fit a Mini DisplayPort? No, not without a separate compatible solution. Does a locking plug require a release action? Follow the connector design. Does an angle guarantee zero strain? No; leave slack. Can I run 4K high refresh? Only if the full system supports it. Can I use it with an HDMI socket? No. Should I measure the cable path? Yes, including monitor-arm movement.

Final buying advice

Pick a cable by the exact physical exit direction first, then verify the DisplayPort version, available lengths and the target display mode. A clean install should leave both the connector and the monitor-arm joints free of tension.
