USB 3.0 Extension Cable Guide: 5Gbps Speed, Charging, Length & Compatibility

A USB 3.0 extension cable is a simple way to move a hard-to-reach USB-A port closer to your desk, TV stand, console setup or workstation without relocating the host device. The key is understanding that an extension cable does not create extra speed or charging power: the final result is limited by the slowest or lowest-rated part of the complete connection.

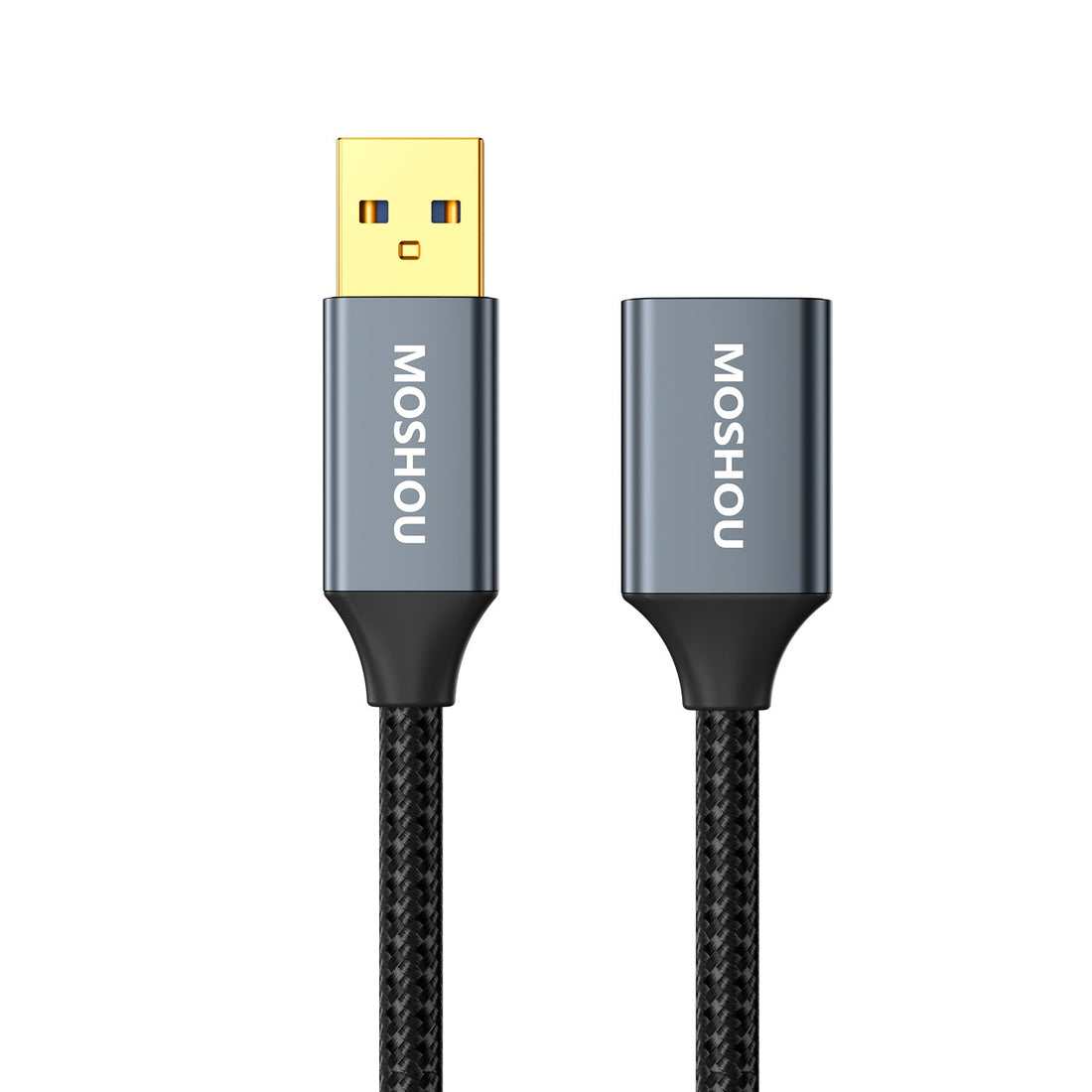

The MOSHOU USB 3.0 male-to-female extension cable is designed for up to 5Gbps data transfer with compatible USB 3.0 equipment and supports charging passthrough up to 60W when the charger, source cable, connected device and charging protocol all support the required power. It is available in 0.5m, 1m, 2m and 3m lengths.

Quick answer: what does a USB 3.0 extension cable do?

It extends an existing USB-A connection. One end plugs into a USB-A host port and the female end gives you a more convenient place to connect a USB-A peripheral or cable. It can be useful for desktop PCs under a desk, rear TV ports, game consoles, USB hubs, printers, webcams, card readers, keyboards, mice and external storage devices.

It is a passive extension cable. It does not convert USB-A into USB-C, HDMI, DisplayPort or another interface, and it does not upgrade a USB 2.0 device to USB 3.0 speed.

How the 5Gbps speed rating works

For the connection to reach USB 3.0-class speeds, the entire chain needs to support USB 3.0. That includes the host port, the extension cable, the connected cable if another cable is used, and the destination device. If any part of the chain is USB 2.0 or USB 1.1, the connection falls back to the speed supported by that component.

This is especially important with external drives, capture accessories, card readers and other bandwidth-sensitive peripherals. A cable marked for up to 5Gbps can carry that data rate in a compatible system, but it cannot force a slower host or device to operate faster.

Can a USB extension cable also carry charging power?

Yes, a USB extension cable can carry power as well as data, but the usable charging output depends on more than the extension cable itself. This MOSHOU model is specified for charging passthrough up to 60W in a compatible complete charging chain.

The practical charging result is limited by the charger, the source connection, any additional cable, the device and the charging protocol they negotiate. If one component is rated below the desired output, the system will operate at that lower level. For that reason, buyers should treat the 60W figure as the cable's supported passthrough capability rather than a promise that every USB-A setup will charge at 60W.

Does extension-cable length matter?

Length matters because every added section of cable becomes part of the signal and power path. A longer route can be convenient, but for high-bandwidth or power-sensitive equipment the safest approach is to choose the shortest length that solves the placement problem.

The MOSHOU cable is available in 0.5m, 1m, 2m and 3m. A 0.5m or 1m cable is useful when you only need to bring a rear PC or monitor port onto the desk. A 2m or 3m option makes more sense for a TV cabinet, console area or equipment rack where the host is farther away.

Where a USB-A extension cable is most useful

Desktop PCs and workstations

If the computer tower sits under the desk or its fastest ports are on the rear I/O panel, an extension can place the female USB-A port within easy reach. That is useful for flash drives, card readers, security keys, cameras and temporary peripherals you connect frequently.

TVs and game consoles

Rear-facing USB ports can be awkward once a TV or console is installed inside a cabinet. A short extension can reduce repeated reaching behind equipment and can make it easier to connect controllers, storage or other compatible USB accessories.

External storage and card readers

These devices can benefit from USB 3.0 bandwidth, so check that the host and device both support the required speed. If performance matters, avoid adding more cable length than necessary and make sure every additional cable in the route is also suitable for the intended data rate.

Keyboards, mice, webcams and printers

These peripherals often need more physical reach than maximum bandwidth. A USB extension can improve cable routing and device placement while keeping the familiar USB-A connection.

Construction: what the cable is built for

This MOSHOU extension uses silver-plated copper conductors, aluminum-alloy connector housings, gold-plated contacts and a black braided outer jacket. The approximate cable diameter is 4.5mm. These design choices are intended to provide a durable everyday extension for repeated connection and desk use.

USB 3.0 extension cable compatibility checklist

• Connector: confirm that you need USB-A male to USB-A female.
• Host speed: check whether the USB-A port on the computer, console, TV or hub supports USB 3.0.
• Device speed: a USB 2.0 or USB 1.1 device will operate at its own supported speed.
• Power requirement: check the charger, device and any additional cable rather than relying on the extension cable's rating alone.
• Length: choose 0.5m, 1m, 2m or 3m based on the real installation and keep the route as short as practical for demanding devices.
• Interface: this cable extends USB-A only; it does not perform signal conversion.

Before You Buy

Buy a USB extension cable when your main problem is reach, not interface conversion. If your device has USB-C but the host has USB-A, you may need a different cable or adapter designed for that interface. If you need HDMI video, DisplayPort video or another signal type, a USB-A extension is not a substitute.

For external drives or other high-bandwidth peripherals, confirm USB 3.0 support at both ends and across every cable. For charging, confirm the full charging chain and expected protocol. These checks prevent the two most common misunderstandings: expecting a cable to upgrade a slower device, or expecting the maximum cable rating from hardware that cannot supply it.

FAQ

1. Does a USB 3.0 extension cable reduce speed?

A compatible extension can carry USB 3.0 data up to its rated capability, but the real speed is limited by the complete connection. A slower host port, device or extra cable will lower the result.

2. Can I use this extension with a USB 2.0 device?

Yes. USB 2.0 and USB 1.1 devices can connect, but they operate at their own supported speeds rather than 5Gbps.

3. Is this USB-C compatible?

Not directly. This is a USB-A male-to-female extension cable. It does not convert USB-A to USB-C.

4. Can it carry 60W charging?

The cable is specified for charging passthrough up to 60W with a compatible complete charging chain. Actual output depends on the charger, source connection, device, additional cables and supported charging protocol.

5. Which length should I choose?

Choose the shortest length that comfortably reaches the device. The available options are 0.5m, 1m, 2m and 3m.

6. Can I extend an external SSD or hard drive?

It can be used with compatible USB-A storage devices. For best performance, confirm USB 3.0 support throughout the connection and avoid unnecessary cable length.

7. Can I use it for a keyboard or mouse?

Yes, compatible USB-A keyboards and mice are typical use cases, particularly when the computer is under a desk or farther from the input devices.

8. Does it convert USB data to HDMI video?

No. It is a passive USB-A extension cable and does not convert the interface or create an HDMI signal.

9. Can I connect it to a USB hub?

Yes, if the hub uses a compatible USB-A connection. Overall data speed and power still depend on the host, hub and the rest of the connection.

Final verdict

A USB 3.0 extension cable is most useful when you already have the correct USB-A interface but need a cleaner, easier-to-reach connection point. The MOSHOU model combines up to 5Gbps data support, charging passthrough up to 60W in a compatible chain, four length options and a braided construction. Match the cable to your host, device, speed requirement and real installation length for the best result.
