DisplayPort 2.1 Optical Fiber Cable Guide: 80Gbps, 4K240, 8K120, Direction & Long-Distance Setup

A DisplayPort 2.1 optical fiber cable is most useful when you need high-bandwidth video over a longer distance without the bulk of a conventional long copper cable. The MOSHOU model is a directional active optical cable, so installation direction matters just as much as bandwidth.

The cable is designed for up to 80Gbps-class DisplayPort 2.1 connections and is offered from 1m to 50m. Its hybrid optical-and-copper structure is intended for gaming rooms, studios, workstations, control rooms and concealed routing where a long DisplayPort connection is required.

Why Use Optical Fiber for DisplayPort?

For shorter desktop connections, a copper DisplayPort cable can be perfectly suitable. Optical fiber becomes more attractive when cable length increases or when a slimmer long-distance route is desirable.

The MOSHOU cable uses fiber for high-speed signal transmission while copper conductors support the active electronics. This helps keep the cable relatively slim at about 4.8mm outer diameter even at long lengths.

80Gbps and High Refresh Rates

The cable is designed for DisplayPort 2.1 systems with up to 80Gbps advertised bandwidth. On compatible equipment, the product materials list support for high-resolution and high-refresh combinations such as 8K60/120 and 4K120/144/165/240, as well as higher-resolution modes using compatible compression.

These numbers are not created by the cable alone. The graphics card, DisplayPort output, monitor, operating system, DSC support and selected settings must all support the target mode.

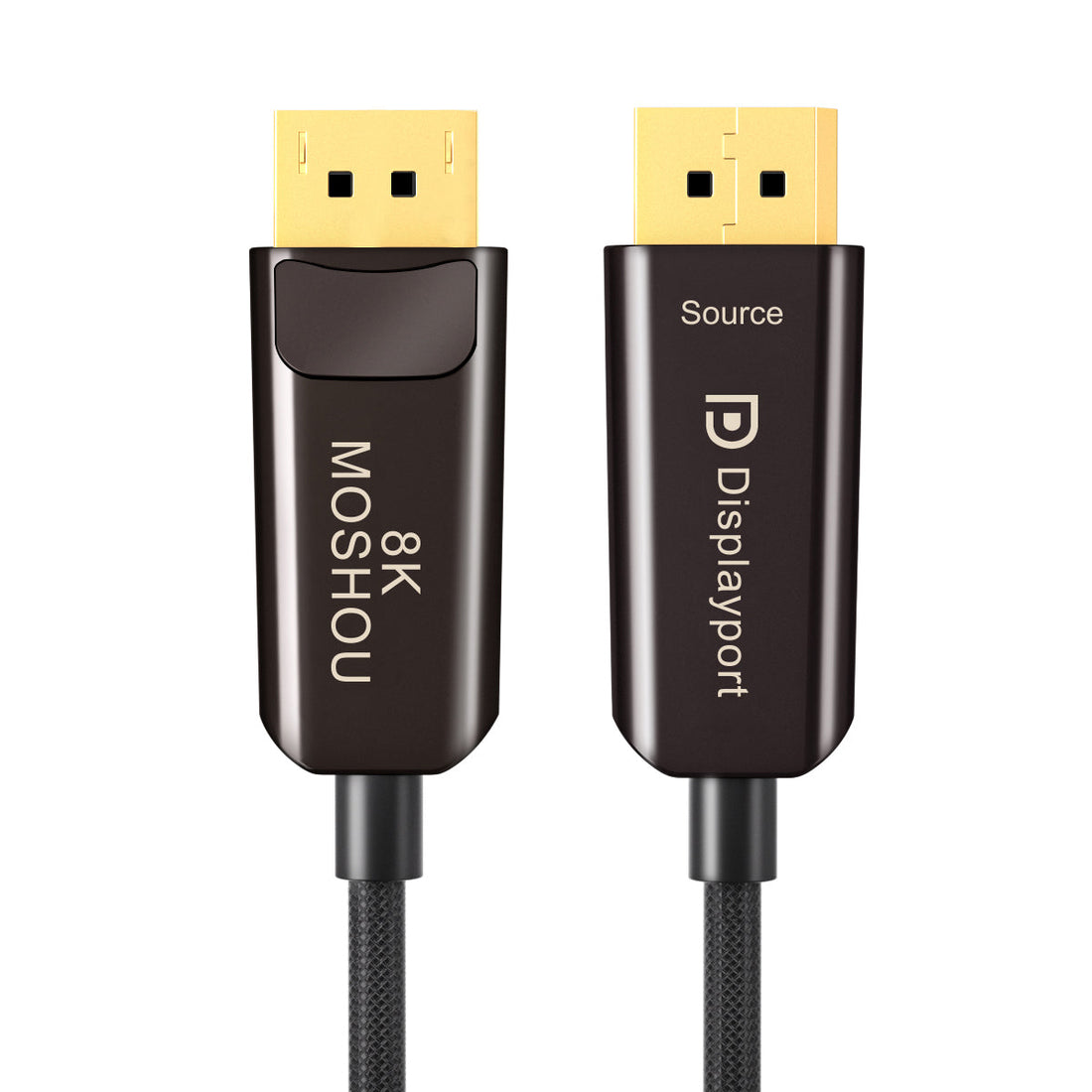

Directional Cable: Source and Display Must Be Correct

This is one of the most important setup points. The cable is not reversible.

• Source: connect to the computer, workstation or graphics card output.
• Display: connect to the monitor input.

If the two ends are reversed, the display will show no signal. Check the connector labels before routing the cable behind furniture or through conduit.

Where Long-Distance DisplayPort Helps

Long optical DisplayPort runs are useful in gaming rooms with the PC placed away from the display, studios with rack-mounted computers, conference rooms, simulators, control rooms and desks where cables are routed through walls or furniture.

Lengths from 1m to 50m are currently offered, so buyers can choose a route based on the actual cable path rather than only straight-line distance.

Why Test Before Permanent Installation?

Active optical cables should be tested before they are hidden behind walls, furniture or conduit. Connect the complete source-to-display chain first, confirm the intended resolution and refresh rate, then route the cable permanently.

This is especially important because cable direction cannot be changed after installation without physically reversing the cable.

Can It Add DisplayPort 2.1 Features to Older Hardware?

No. A higher-spec cable cannot upgrade a DisplayPort 1.4 graphics card or monitor into a DisplayPort 2.1 device. The complete connection is limited by the lowest-capability component.

Before You Buy

• Confirm the source uses full-size DisplayPort output.
• Confirm the monitor uses DisplayPort input.
• Check the Source and Display labels before installation.
• Measure the real cable route, including bends and vertical runs.
• Confirm your GPU and monitor support the target resolution and refresh rate.
• Test the full connection before concealed installation.

Frequently Asked Questions

Is this cable bidirectional?
No. It works only from the end marked Source to the end marked Display.

Can it support 4K240?
It is designed for compatible high-refresh DisplayPort 2.1 systems, but the complete hardware chain must support the mode.

Can it support 8K120?
The product materials list 8K120 support with compatible equipment and settings.

Why use optical fiber instead of copper?
Optical transmission is useful for longer runs and allows a relatively slim cable design over long distances.

What happens if I reverse the ends?
The cable will not transmit a signal.

Can I use it at 50m?
The listing includes lengths up to 50m. Choose the required length and test the complete system before permanent installation.

Does it support mirror and extended desktop modes?
Yes, when the source hardware and operating system support those modes.

Will it upgrade a DP 1.4 monitor to DP 2.1?
No. The monitor and source determine the available display modes.

Final Verdict

The MOSHOU DisplayPort 2.1 optical fiber cable is best suited to buyers who need both high-bandwidth display capability and longer-distance routing. Its biggest setup requirement is simple but critical: install it in the correct Source-to-Display direction and test the signal before hiding the cable.
