90° vs 270° HDMI Adapter Guide: How to Choose the Right Angle for Tight Spaces

A 90° or 270° HDMI adapter can make the difference between a clean installation and a cable that is forced into a sharp bend behind a TV, monitor, console or PC. The two versions perform the same basic job, but they route the female HDMI socket in opposite directions. The correct choice depends on how your device's HDMI port is physically oriented.

90° vs 270° HDMI Adapter: What Is the Difference?

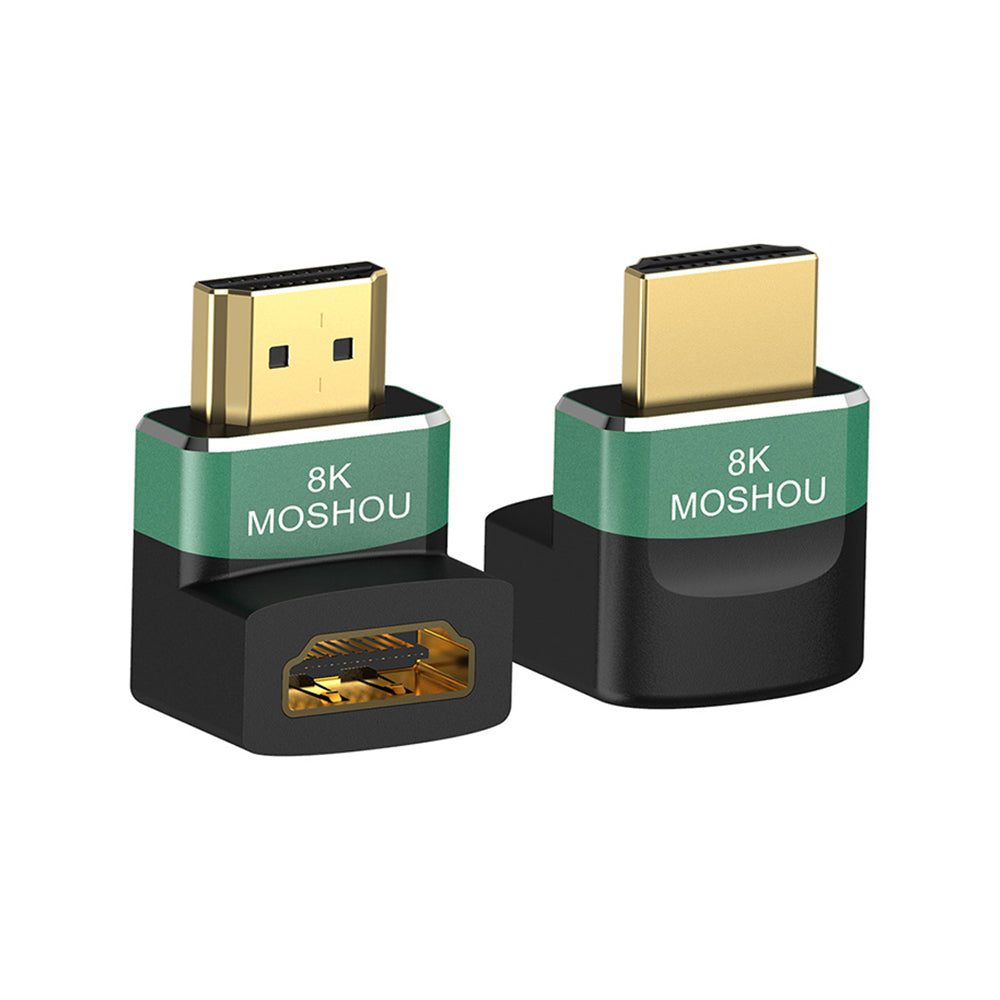

Both are right-angle HDMI male-to-female adapters. The difference is the direction in which the cable exits once the adapter is plugged into the device. A 90° version turns one way; a 270° version turns the opposite way. Because manufacturers place and rotate HDMI ports differently, the same adapter can point upward on one device and downward on another.

How to Choose the Correct Angle

Do not choose only by the number printed in the variant name. First look directly at the HDMI port on your TV, monitor, graphics card, console or other device. Then compare the shape and orientation of the port with the product photos. Your goal is to make the connected HDMI cable travel toward open space rather than into the wall, case, stand or adjacent connector.

A simple selection method

1. Locate the HDMI port you want to use.
2. Check whether the wider side of the HDMI socket faces up, down, left or right.
3. Decide which direction you want the cable to leave the device.
4. Compare the 90° and 270° product images before ordering.

Where Right-Angle HDMI Adapters Help Most

They are especially useful behind wall-mounted TVs, monitors placed close to a wall, compact desktop PCs, game consoles inside cabinets and other installations where a straight HDMI plug would protrude too far. Changing the cable direction can reduce unnecessary bending and make the installation cleaner.

Can a Right-Angle Adapter Support 8K60 or 4K120?

The MOSHOU adapter is designed for HDMI 2.1 signal paths and is listed for up to 8K at 60Hz or 4K at 120Hz with compatible equipment. Actual performance depends on the complete HDMI chain: source, display, HDMI cable, adapter, port capability, settings and content must all support the requested mode.

For high-bandwidth modes, keep the connection chain simple and use a suitable HDMI cable. Adding any passive adapter introduces another physical connection point, so secure insertion and good cable management matter.

What This Adapter Does — and Does Not Do

• It does: change the physical exit direction of an HDMI cable.
• It does: provide an HDMI male-to-female extension point.
• It does not: split one HDMI source into two displays.
• It does not: convert HDMI to DisplayPort, USB-C or another connector.
• It does not: increase the resolution or refresh rate supported by your source or display.

Before You Buy

• Check the physical orientation of your HDMI port before choosing 90° or 270°.
• Confirm that there is enough clearance for the adapter housing.
• Make sure nearby USB, DisplayPort, power or other HDMI ports will not be blocked.
• For 8K60 or 4K120 use, confirm every component in the chain supports the target signal mode.
• This is a passive HDMI adapter, not an active signal converter or splitter.

Frequently Asked Questions

Is 90° always an upward-facing adapter?
No. The final direction depends on how the HDMI port is rotated on your device.

What is the difference between 90° and 270°?
They route the female HDMI socket in opposite directions.

Can I use the adapter behind a wall-mounted TV?
Yes, if the adapter orientation and available clearance suit the TV's HDMI port layout.

Will it reduce cable bending?
It can help by redirecting the cable so it does not need to make an immediate sharp turn at the port.

Does it support HDMI audio as well as video?
It is designed to pass compatible HDMI audio and video signals through the connection.

Can it support 8K60 or 4K120?
The product is specified for those modes when the complete HDMI chain supports them.

Can I use it as an HDMI splitter?
No. It has one male and one female HDMI connection and does not create multiple outputs.

Can I connect two adapters together?
Physically it may be possible in some setups, but adding more connection points is usually unnecessary. A single correctly oriented adapter is the cleaner choice.

Final Verdict

The most important decision is not 90° versus 270° in isolation; it is which orientation sends the cable in the correct direction on your specific device. Check the port position first, compare the product images, and choose the version that creates the cleanest path with the least cable stress.
