XLR Male to Female Cable Guide: Balanced Audio, Phantom Power, Length & Stereo Use

If you are connecting a microphone, mixer, audio interface, preamp, powered speaker or other professional audio equipment, a standard 3-pin XLR male-to-female cable is one of the most common ways to carry a balanced analog audio signal. But buyers still run into a few recurring questions: which end goes where, whether one cable carries stereo, whether phantom power can pass through it, and how long the cable should be.

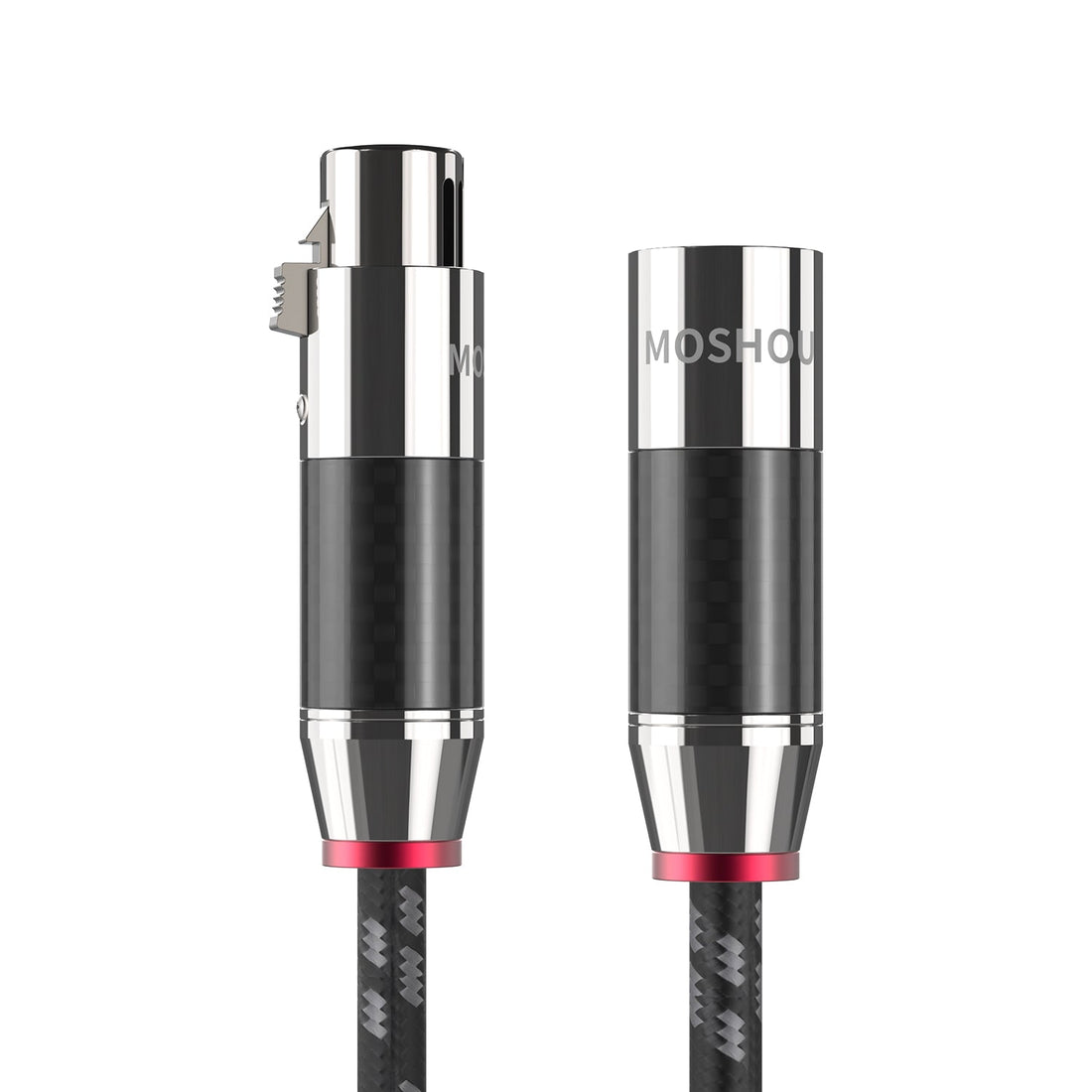

This guide explains those points using the MOSHOU Carbon-Fiber XLR Male to Female Cable as a practical example.

Quick answer: what is an XLR male-to-female cable?

A standard 3-pin XLR male-to-female cable connects an XLR output to an XLR input and is commonly used for balanced analog audio. Typical examples include a microphone to a mixer or audio interface, a mixer output to a powered speaker, or a preamp output to another compatible audio device.

The MOSHOU cable uses a 3-pin XLR male connector on one end and a locking 3-pin XLR female connector on the other. It is available in lengths from 0.5m to 20m, making it suitable for both short equipment links and longer studio or stage runs.

How balanced XLR audio works

Balanced audio connections are designed to reduce the effect of external electrical noise, especially over longer cable runs. In a typical balanced XLR connection, the audio signal is carried on two conductors with opposite polarity while a third connection is used for shielding/ground. The receiving device compares the two signal paths and rejects noise that was picked up equally along the run.

This does not mean every XLR connection automatically sounds better than every other connection. The final result still depends on the microphone, preamp, interface, gain structure, grounding, cable routing and the rest of the system. The practical advantage is that balanced connections are well suited to professional audio environments where reliability and noise rejection matter.

Does one XLR cable carry stereo audio?

In a standard analog setup, one 3-pin XLR cable normally carries one balanced audio channel. That is why a stereo system commonly uses two XLR cables: one for the left channel and one for the right channel.

For example, if a DAC or preamp has separate Left and Right XLR outputs and your amplifier has corresponding Left and Right XLR inputs, you would normally need two cables. A single cable is not a stereo pair, splitter or Y cable.

Can an XLR cable carry phantom power?

Yes, a correctly wired balanced XLR cable can carry phantom power between compatible devices. Phantom power is supplied by the mixer, microphone preamp or audio interface; the cable itself does not generate power. In common microphone setups, phantom voltage is delivered over the same balanced connection used for audio.

Always follow the microphone and equipment manufacturer's instructions. Condenser microphones may require phantom power, while many dynamic microphones do not. Compatibility depends on the connected microphone, mixer, interface and any other equipment in the signal chain.

Where can you use a male-to-female XLR cable?

Common applications include microphones, mixing consoles, microphone preamps, audio interfaces, powered speakers, decoders, headphone amplifiers, power amplifiers and other equipment with standard 3-pin XLR connections.

Before ordering, check both connector gender and signal type. This product is not an XLR splitter, stereo pair, Y cable or DMX terminator. It is intended as a standard 3-pin male-to-female balanced analog audio cable.

How long should your XLR cable be?

Choose the shortest practical length that reaches comfortably without pulling on connectors or forcing tight bends. Extra length is useful when equipment may move, but unnecessary coils can make cable management harder.

• 0.5–1.5m: short equipment-to-equipment links in a rack, desktop studio or HiFi system.
• 2–3m: microphones around a desk, small studio, streaming setup or compact performance area.
• 5–10m: stage, rehearsal room, conference room or larger studio routing.
• 12–20m: longer venue runs where the source and destination are far apart.

The MOSHOU XLR cable is offered in 0.5m, 1m, 1.5m, 2m, 3m, 5m, 8m, 10m, 12m, 15m and 20m options.

Construction: what the materials actually mean

The cable uses silver-plated internal conductors, metal XLR connector structures with carbon-fiber-pattern barrels, a locking female connector, reinforced cable entry and a flexible braided outer jacket. These design choices are intended for dependable signal transfer and everyday handling.

It is better to treat conductor and connector materials as part of the overall construction rather than assume a specific material alone guarantees an audible improvement. Sound quality is determined by the complete audio chain.

XLR vs 3.5mm AUX: when should you use each?

XLR is commonly used in professional and studio audio because it supports balanced connections and locking connectors. A 3.5mm AUX connection is compact and convenient for consumer devices, but is often used as an unbalanced stereo connection. If you are comparing the two formats, see our 3.5mm AUX Cable Guide.

Before You Buy

• Confirm your equipment uses standard 3-pin XLR connections.
• Check that you need male-to-female, not male-to-male or female-to-female.
• Remember that one cable normally carries one balanced analog channel.
• Order two cables when your stereo setup requires separate left and right XLR channels.
• Select enough length for comfortable routing without excessive slack.
• Phantom power must come from compatible source equipment; the cable does not provide it by itself.

FAQ

1. Is this a 3-pin XLR cable?

Yes. It uses standard 3-pin XLR male and 3-pin XLR female connectors.

2. Is it a balanced audio cable?

Yes. It is designed for balanced analog audio connections between compatible equipment.

3. Can I use it for a microphone?

Yes, when the microphone and destination device use compatible 3-pin XLR connections.

4. Does it support phantom power?

The cable can carry phantom power supplied by compatible mixers, preamps or audio interfaces. It does not create phantom power itself.

5. Does one cable carry left and right stereo?

Normally no. A standard balanced analog XLR cable carries one channel. Stereo equipment often requires two cables.

6. Can I use it with powered speakers?

Yes, if the source and speaker use compatible balanced XLR connections.

7. Is this a DMX cable?

It is sold as a balanced analog audio cable, not as a DMX terminator or purpose-specified digital lighting cable.

8. What lengths are available?

0.5m, 1m, 1.5m, 2m, 3m, 5m, 8m, 10m, 12m, 15m and 20m.

9. Does the female connector lock?

Yes. The female connector includes a locking latch for a secure connection.

10. Do silver-plated conductors guarantee better sound?

No single cable material guarantees an audible improvement in every system. Overall system design, equipment quality, grounding and gain structure also matter.

Final thoughts

For a standard balanced analog audio connection, a 3-pin XLR male-to-female cable is a straightforward choice. Focus first on connector type, channel count and appropriate length, then on construction details that suit your setup and handling requirements.
